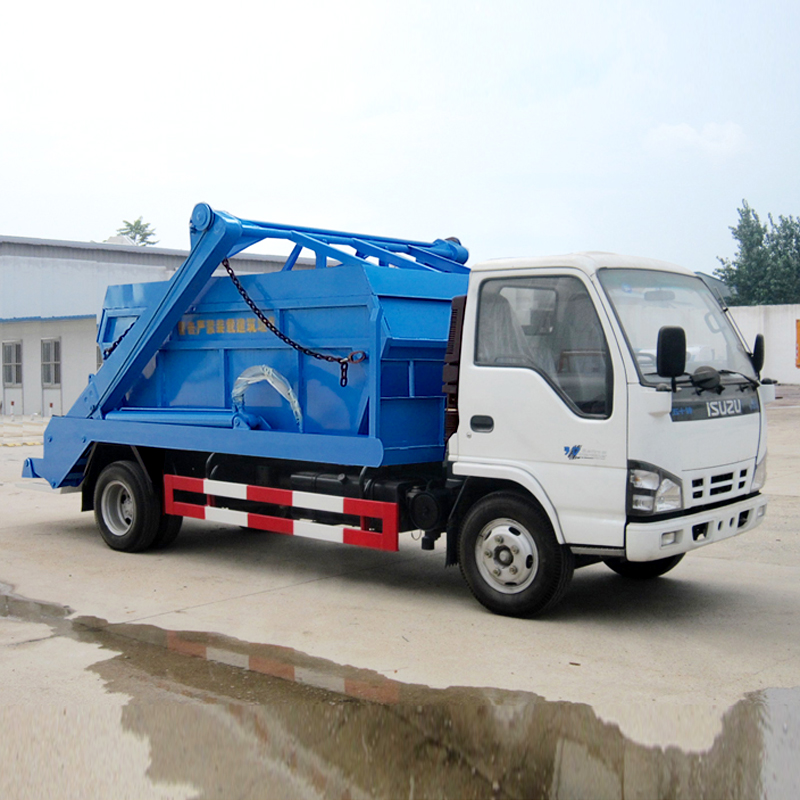

HLW5070ZBSQ摆臂垃圾车

Vehicle parameters                                                                            www.hltq.com

Vehicle Model

HLW5070ZBSQ

Vehicle Brand

FOMON

Overall dimensions

6850X2260X2850mm

Curb weight

3200kg

Garbage container dimensions

3500×1650×1200mm

Garbage container volume

6m3

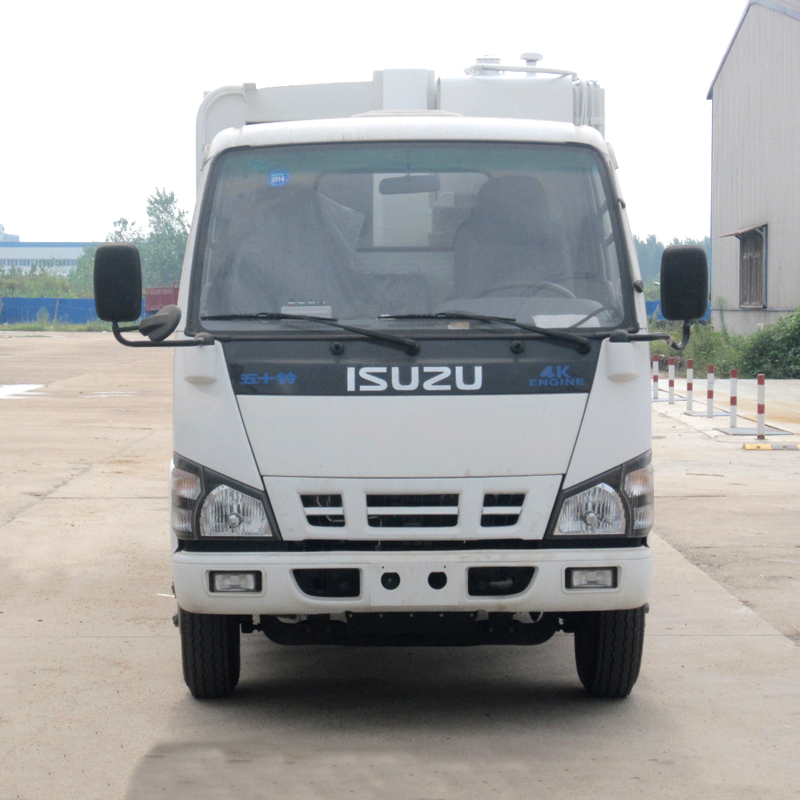

Chassis parameters                                                                           www.hltq.com

Chassis model

QL1070A1KAY

Chassis brand

ISUZU

Overall dimensions

6645x1880x2160mm

Wheel base

3815mm

Front/rear wheel track

1504/1425mm

Front/rear suspension

1015/1815mm

Approach/departure angle

24/14°

Maximum speed

105km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Cab

Configuration

600P,single row cab, allowable 2 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump

Color

White, other color is optional

Engine

Model

4KH1-TCG40

Emission

Euro 4

Type

4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine

Rated power

120hp,rated power speed 3400rpm

Displacement

2999ml

Manufacturer

Isuzu Engine (Chongqing) Co., Ltd.

Tire

Size

7.00-15 10PR nylon tire

Number

6+1 nos

Front axle

2.5 tons

Rear axle

4.8 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MSB five speed transmission,5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above,please take the actual product as the standard

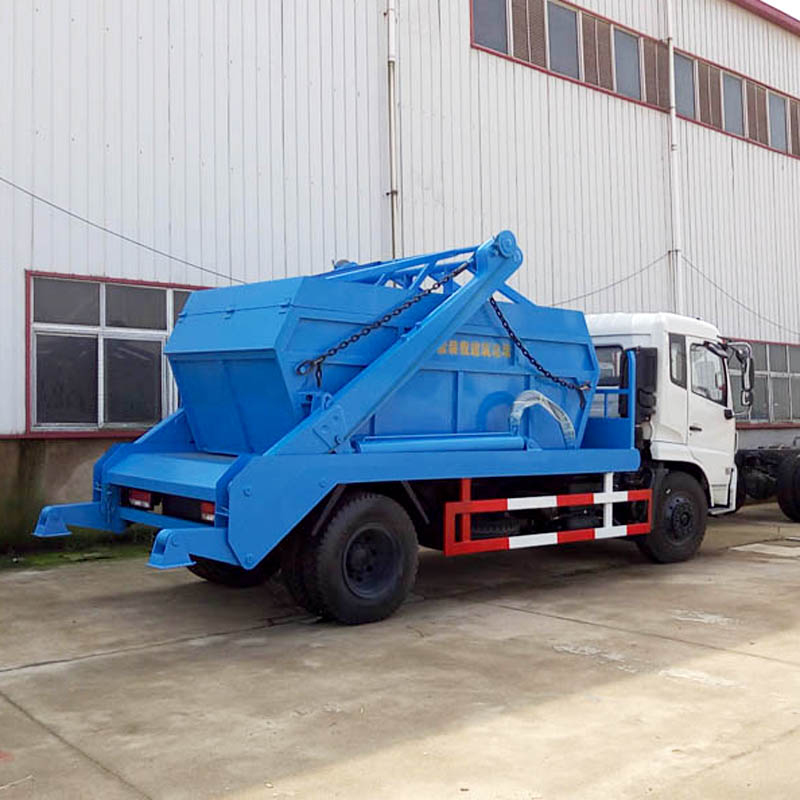

Swing arm garbage truck structure parameters                                                    www.hltq.com

Garbage container dimensions

3500×1650×1200mm

Garbage container volume

6m3

Garbage container material

Carbon steel

Side wall

2.5mm

Bottom plate

3mm

Color and Logo

Optional

Standard configuration

Chassis, sub frame, two balancing valves, two domestic oil cylinders, web plate, one garbage container, rear hydraulic legs, unloading container locking pins.

Selective configuration

Garbage container cover.
