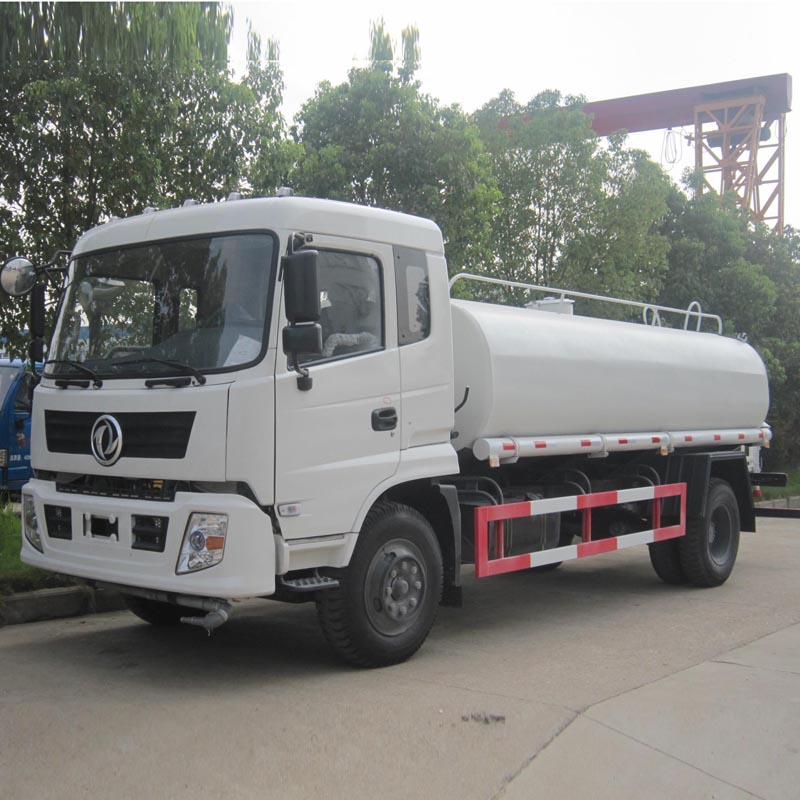

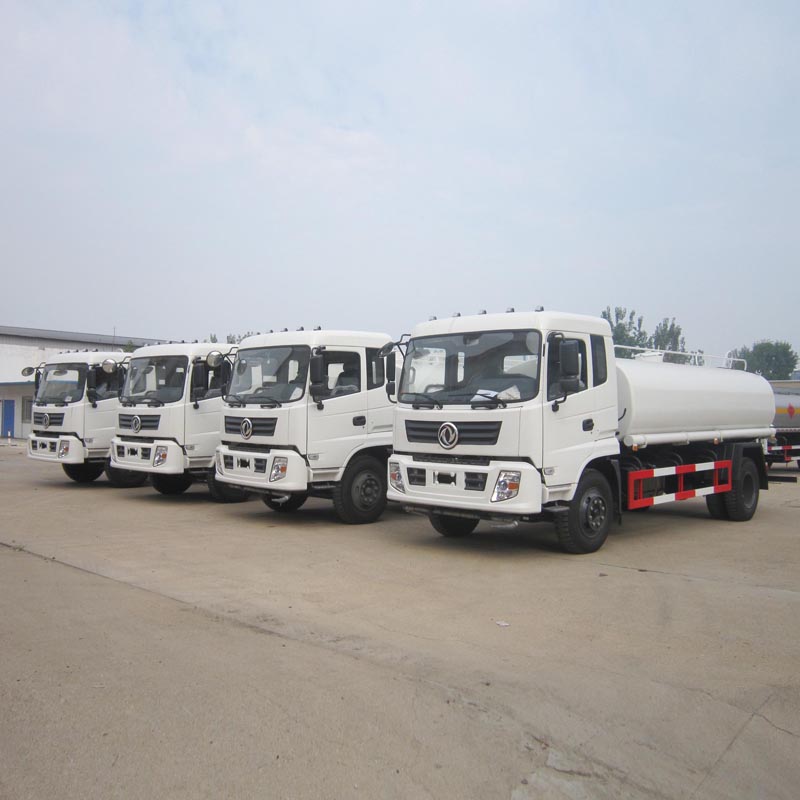

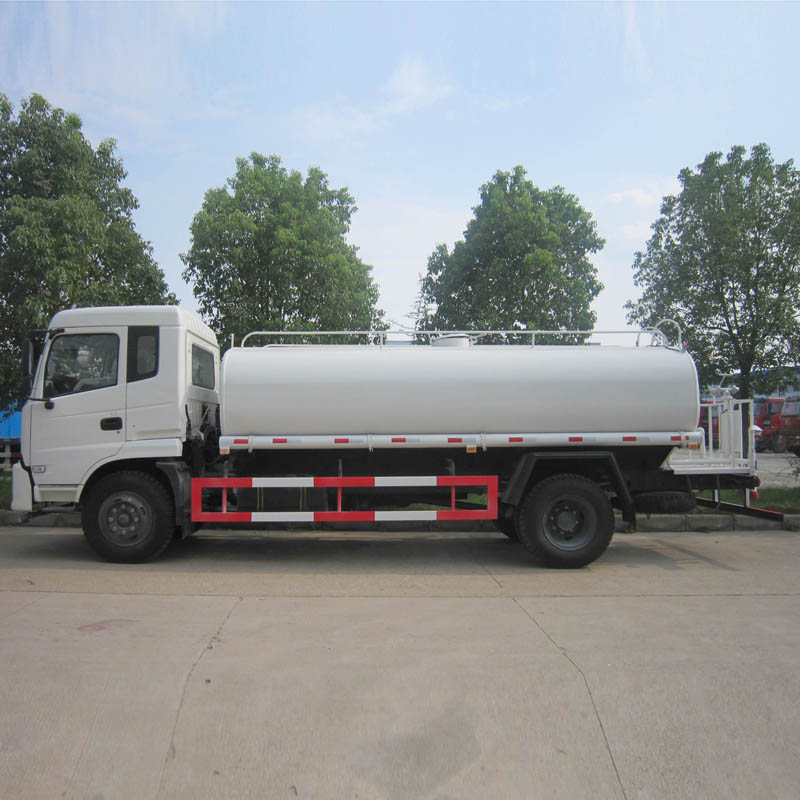

HLW5108GSSE洒水车

Vehicle parameters                                                                            www.hltq.com

Vehicle Model

HLW5108GSSE

Vehicle Brand

FOMON

Overall dimensions

7450X2480X2985mm

Curb weight

5400kg

Tank dimensions

4060×2100×1360mm

Tank volume

10000L

Chassis parameters                                                                           www.hltq.com

Chassis model

EQ1108KJ

Chassis brand

DONGFENG

Overall dimensions

6975X2462X2690mm

Wheel base

3950mm

Front/rear wheel track

1900/1800mm

Front/rear suspension

1205/1820mm

Approach/departure angle

25/18°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Blue,other color is optional

Engine

Model

B170 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

170hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

560N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00-20 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

9.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner,steel wire tire,new driver’s cab

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Water tank structure parameters                                                                 www.hltq.com

Tank dimensions

4060×2100×1360mm

Tank volume

10000L

Tank material

Carbon steel

Tank thickness

4/5mm

Nozzle sprinkling width

≥14m

Range of water cannon

≥28m

Suction height

≥7m

Color and Logo

Optional

Standard configuration

Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.

Selective configuration

Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights

Extended model

water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.
