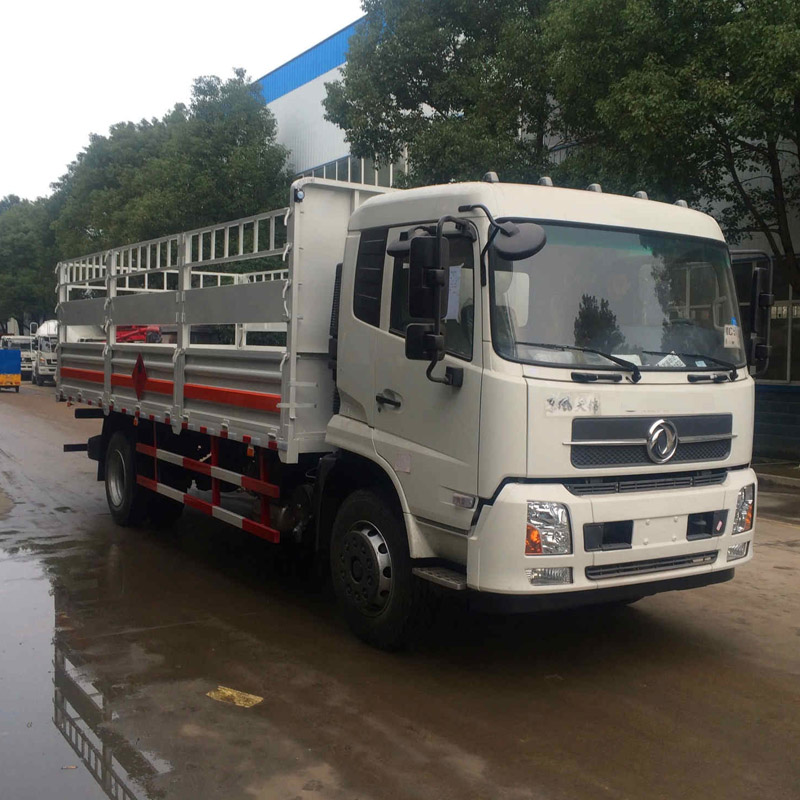

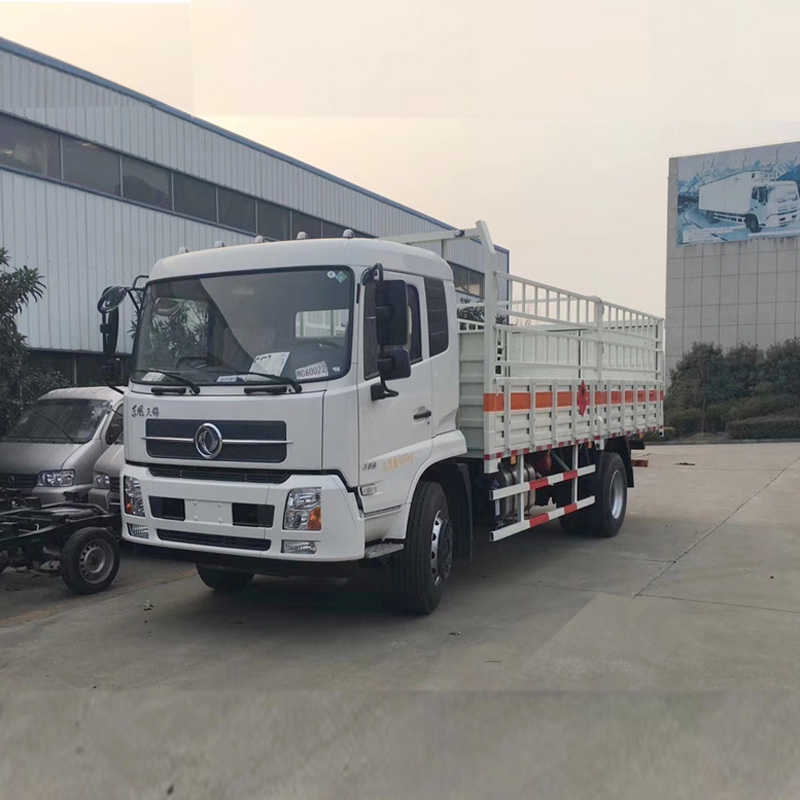

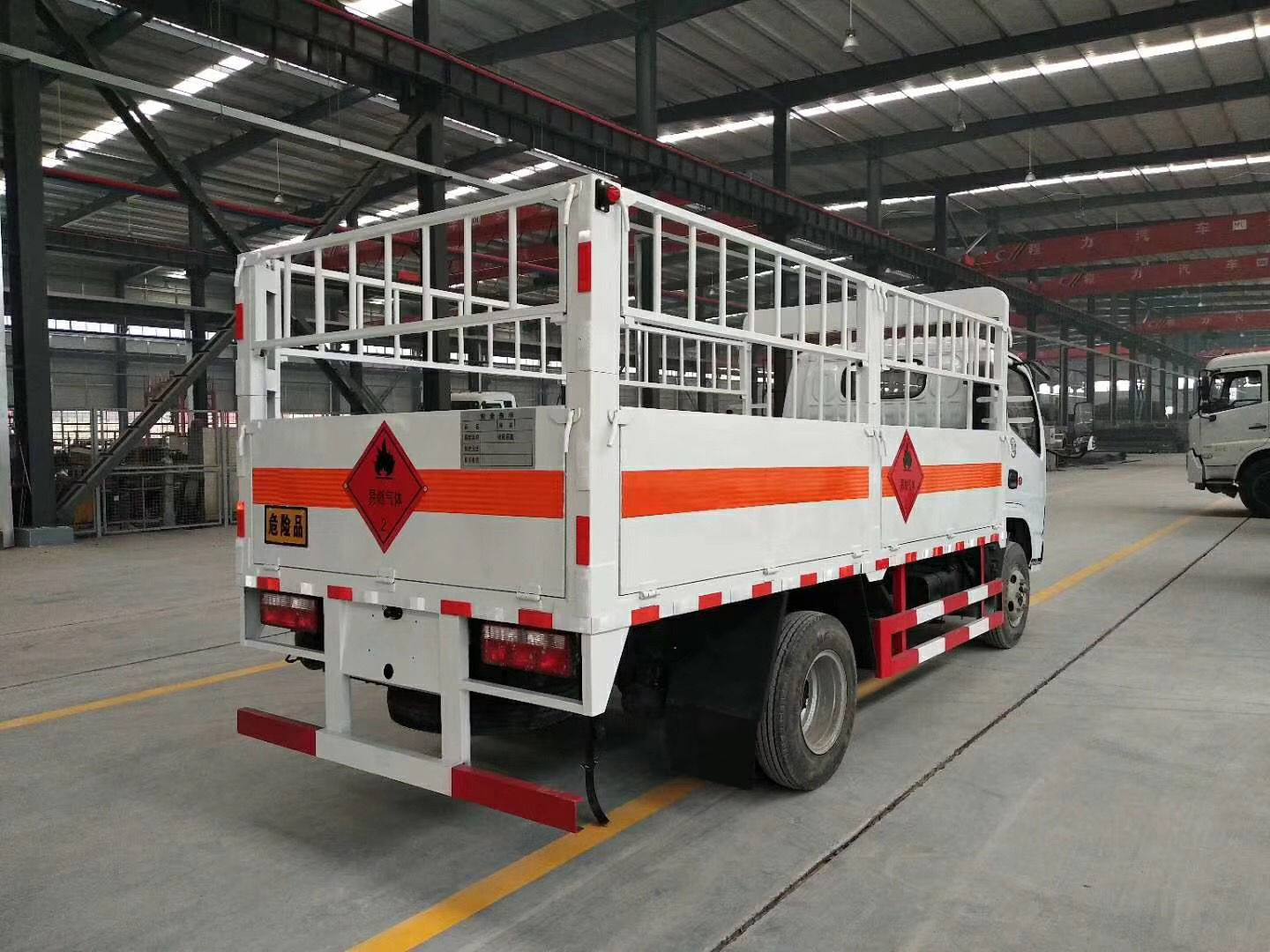

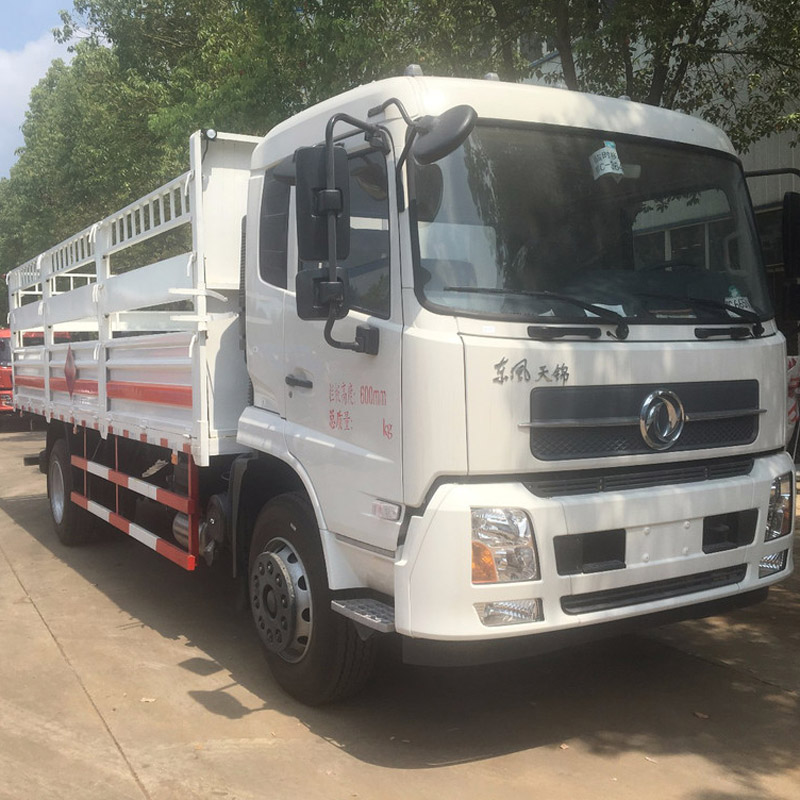

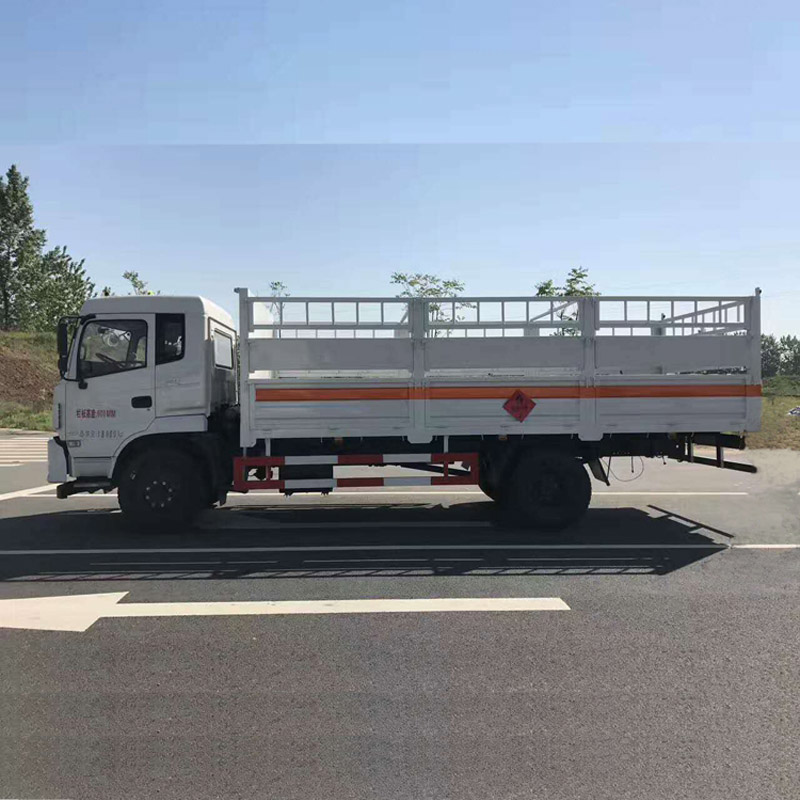

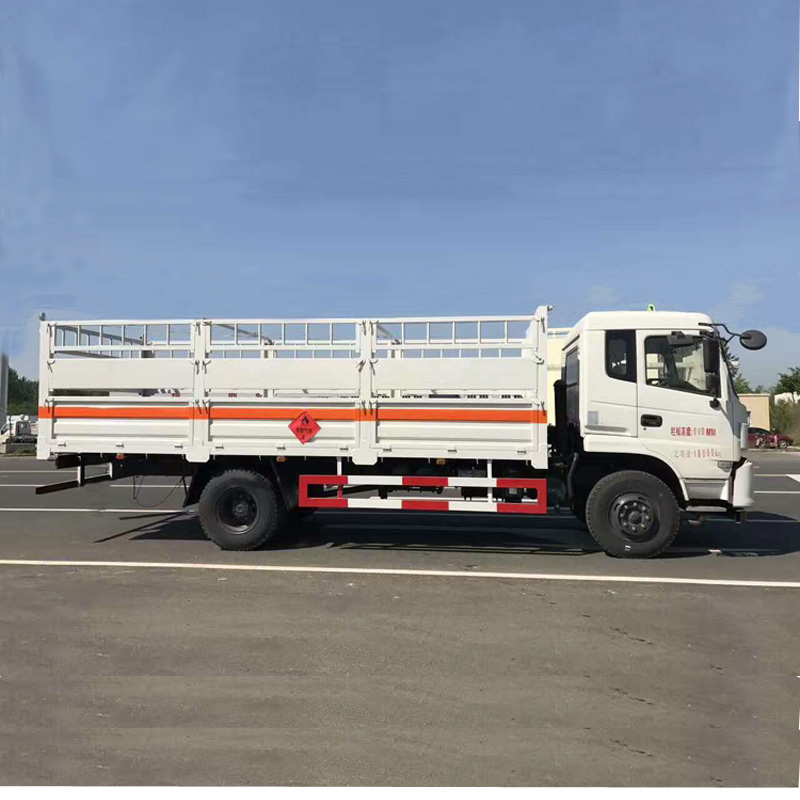

HLW5141QBE 气瓶运输车

Chassis parameters

Chassis model

EQ1141KJ

Chassis brand

DONGFENG

Overall dimensions

7600x2462x2710mm

Wheel base

4500mm

Front/rear wheel track

1940x1860mm

Front/rear suspension

1205/1895mm

Approach/departure angle

25/18°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Blue,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

10.00-20-16 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

5.0T

Rear axle

10.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox 8JS85E, 8 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard
