HLW9400GYY 油车半挂

Item

unit

parameter

Product Name

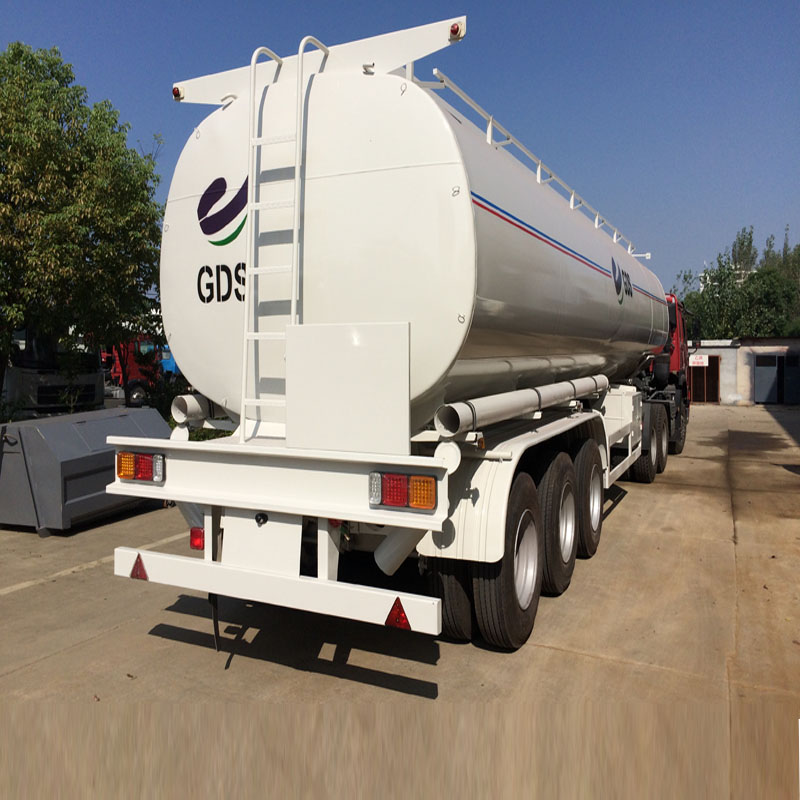

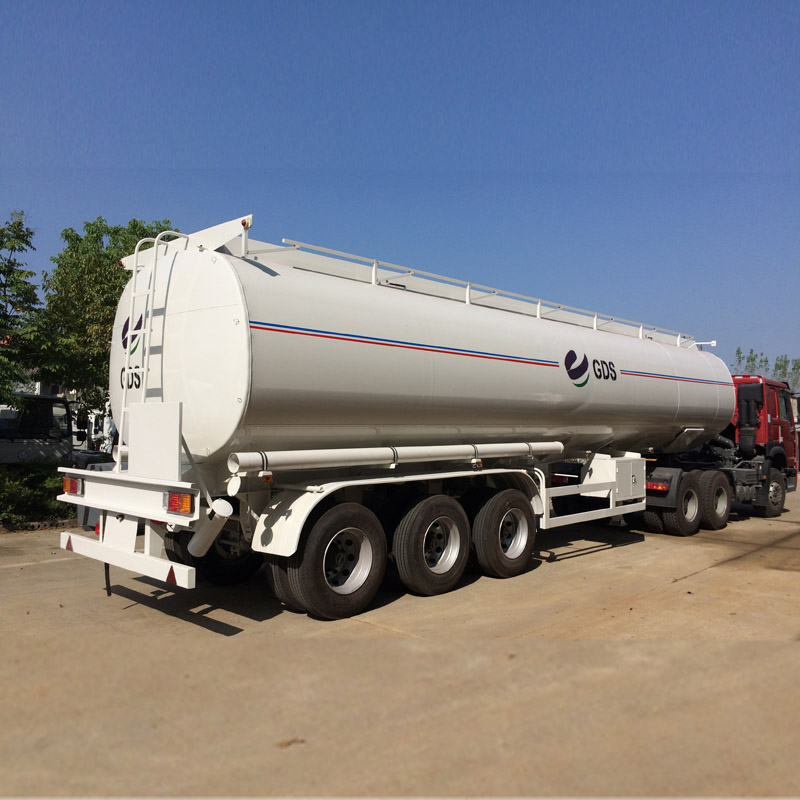

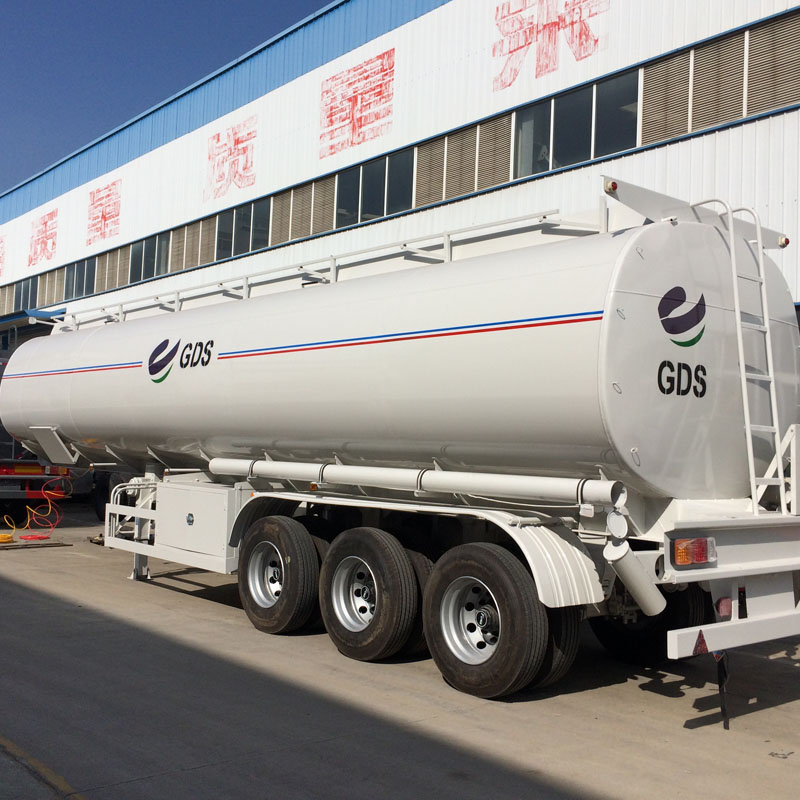

HLW9400GYY oil transport semi trailer

Overall dimensions

mm

12000×2500×3900

Load capacity

L

42000

Curb weight

kg

12800

Tank dimensions

mm

11000x2500x1800

Wheel base

6800+1300+1300

Approach/departure angle

°

-/19

Number of armor plate spring

-/8/8/8

axle

13TONS FUWA

Tire specification

11R22.5

Pin traction

90#

F/R wheel base

1840/1840/1840

Outrigger

28T Single-action

Number of axles

3

Braking system

Brake made in China

Equipment

28T single leg, four big gas chambers two small gas chambers, domestic relay valve, 90# traction pin, one spare tire rack, one toolbox. ABS

Tank material: 5mm carbon steel(Q235B).head Thickness:6 MM One DN100 flow valve with a box on each side. one tool box, two spare tire racks, water tank is optional.
