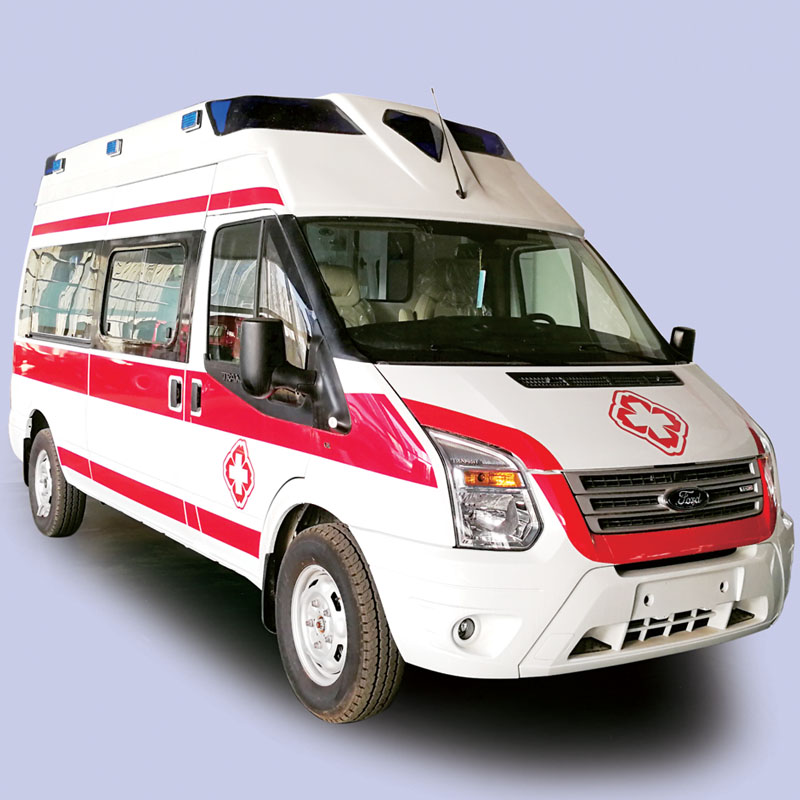

HLW5046XJHJ5 ambulance

  •  HLW5046XJHJ5 ambulance
HLW5046XJHJ5 ambulance

Product name: HLW5046XJHJ5 ambulance

Category: Ambulance

Brand FORD

Engine 136hp

Wheel base 3750mm

Tire 215/75R16LT

Product introduction:

Vehicle parameters

Vehicle Model

HLW5046XJHJ5

Vehicle Brand

HLW

Overall dimensions

5780X2000X2530mm

Curb weight

2750kg

Medical cabin dimensions

3180X1680X1830mm







Chassis parameters

Chassis model

JX6580TA-M5

Chassis brand

FORD

Overall dimensions

5780×2000×2360mm

Wheel base

3750mm

Chassis Manufacturer

Jiangling Motors Corporation, Ltd

Engine

Model

DURATORQ4D225H

Emission

Euro 5

Rated power

136hp

Displacement

2198ml

Manufacturer

Jiangling Motors Corporation, Ltd

Tire

Size

215/75R16LT

Number

4 nos

Front axle

McPherson independent suspension

Rear axle

Hotchkiss suspension

Drive form

4X2

Transmissions

Manual, 6 speed forward 1 reverse.

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above, please take the actual product as the standard



 Ambulance parameters

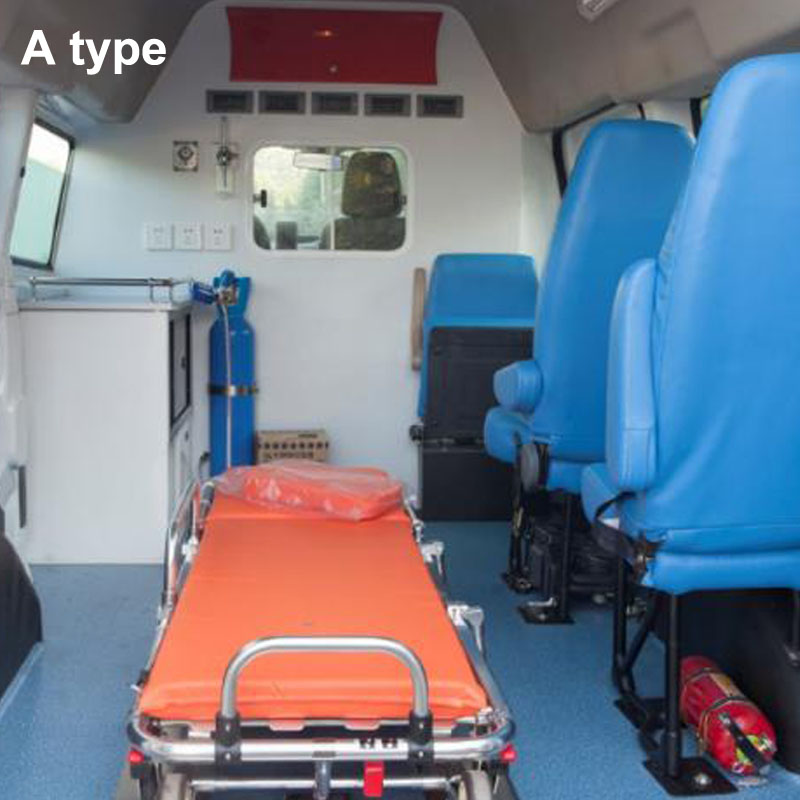

A type Design description: It is specially designed for township or small-scale hospital development and delivery of mild patients or administrative use.
Basic configuration
1 Air conditioner in medical cabin
2 Warm air in medical cabin
Circuits and electrical appliances
1 Standard long-row alarm lamp
2 100W alarm and hand-held controller
3 500W power supply inverter
4 Medical cabin tilting control switch
5 One 220V power interface
6 Two top lights
7 Strip disinfection lamp
Oxygen supply system
1 One 10-liter medical iron bottle and shock-absorbing clamp
2 One humidifying bottle with oxygen decompression valve
Medical cabin
1 Original car interior trim
2 Partition wall
3 Push-pull observation window of partition wall
4 One small medicine bottle cabinet behind the partition wall
5 Fixed oxygen bottle beside medicine bottle cabinet
6 Long seat belt and safety belt embedding
7 Medical floor leather
8 Fire extinguisher
Seat
1 One long soft seat for two people on the right
2 One forward seat on the right
Medical system
1 Automatic boarding stretcher
2 Infusion stand
Vehicle appearance
1 Black solar film on left side of medical cabin.Appearance can be customized
2 Translucent abrasive film on the right and at the rear
3 Standard medical appearance

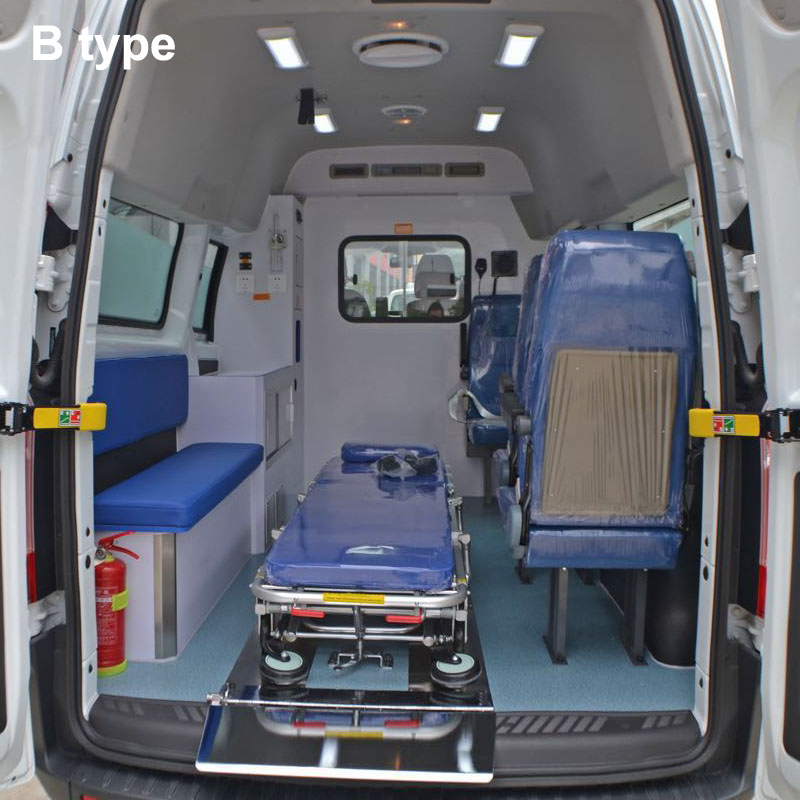

B type Design description: It is specially designed for public hospitals or private hospitals to deliver mild or severe patients. There are 2 - 3 necessary instruments in the medical cabinet, and fast oxygen terminal and circuit terminal are convenient to use. The 10L oxygen bottle can be used for short and medium transportation, and the independent seat and long seat can be used for 8 persons. It is the best design for hospital administration and ambulance.
Basic configuration
1 High-power direct air conditioner in medical cabin
2 High-power warm air in medical cabin
Circuits and electrical appliances
1 Standard long-row alarm lamp
2 100W alarm and hand-held controller
3 Blue flash square lamp at the rear(optional)
4 Blue flash square lamp on left and right sides (optional)
5 White flash square lamp on left and right sides (optional)
6 600W power supply inverter
7 Conventional circuit and electrical protection box
8 Medical cabin tilting control switch
9 Two 220V power interfaces
10 One 12V power interface
11 Two top lights
12 One round disinfection lamp
13 One positive and reverse ventilation fan
14 One intercom for driver’s cab and medical cabin
Oxygen supply system
1 One 10-liter medical iron bottle and shock-absorbing clamp
2 One humidifying bottle with oxygen decompression valve
3 Hidden oxygen pipeline system
4 Two oxygen interfaces
Medical cabin
1 Original car interior trim
2 Sealed partition wall with special-shaped polymer material
3 Push-pull observation window of partition wall
4 Walker vertical oxygen cabinet and storage cabinet one the left
5 Walker medical device cabinet on the left
6 One long soft seat for two people on the left
7 Long seat belt and safety belt embedding
8 Wear-resistant and skid-resistant medical flooring and cushion
9 Fire extinguisher
Seat
1 One reverse 3-point seat belt folding seat on the right
2 Two forward 3-point seat belt independent seats on the right
3 One long soft seat for two people on the left
Medical system
1 Automatic boarding stretcher
2 Stretcher cushion plate and guide plate
3 Sliding infusion stand
Vehicle appearance
1 Black solar film on left side of medical cabin.Appearance can be customized
2 Translucent abrasive film on the right and at the rear
3 Standard medical appearance

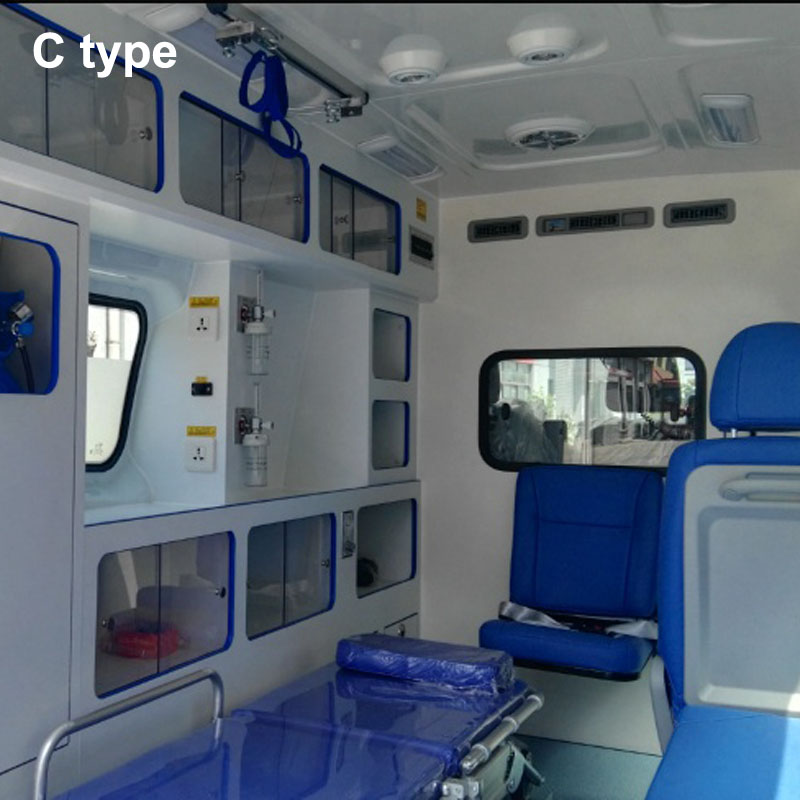

C type Design description: With first aid resuscitation equipment and essential medicines, it can rescue critically injured patients on site or during transportation.
Basic configuration
1 High-power direct air conditioner in medical cabin
2 High-power warm air in medical cabin
Circuits and electrical appliances
1 Standard long-row alarm lamp. Integrated DVD navigation, backing rear view and medical cabin monitoring system, backing radar, timing disinfection device, touch screen control system are optional.
2 100W alarm and hand-held controller
3 Blue flash square lamp at the rear
4 Blue flash square lamp on left and right sides
5 White flash square lamp on left and right sides
6 Second power supply system for medical cabin
7 Emergency start-up system in driver’s cab
8 1000W forward rotating wave inverter system
9 16A external charging system
10 Integrated circuit integrated control and protection system
11 AC circuit protection system
12 Integrated tilting switch control panel for medical cabin
13 Two 220V power interfaces
14 Two 12V power interfaces
15 Four top lights
16 One round disinfection lamp
17 One positive and reverse ventilation fan
18 One intercom for driver’s cab and medical cabin
19 Lighting system at the rear in medical cabin
Oxygen supply system
1 One 10-liter medical iron bottle and shock-absorbing clamp.The integrated oxygen control system in front cabin is optional.
2 One humidifying bottle with oxygen decompression valve
3 Hidden oxygen pipeline system
4 Two oxygen interfaces
Medical cabin
1 Original car interior trim. Integral plastic-absorbing interior top is optional.
2 Sealed partition wall with special-shaped polymer material
3 Push-pull observation window of partition wall
4 Walker vertical oxygen cabinet and storage cabinet one the left
5 Walker medical device cabinet on the left
6 Vehicle safety embedded parts
7 Sound insulation and heat insulation for the whole vehicle
8 Hard top and side wall of environmental protection material
9 Wear-resistant and skid-resistant medical flooring and cushion
10 Fire extinguisher
Seat
1 One reverse 3-point seat belt folding seat in the front
2 Two forward 3-point seat belt independent seats on the right
3 One long soft seat for three people on the right
Medical system
1 Automatic boarding stretcher
2 Stretcher cushion plate and guide plate
3 Sliding infusion stand
Vehicle appearance
1 Black solar film on left side of medical cabin. Appearance can be customized
2 Translucent abrasive film on the right and at the rear
3 Standard medical appearance
