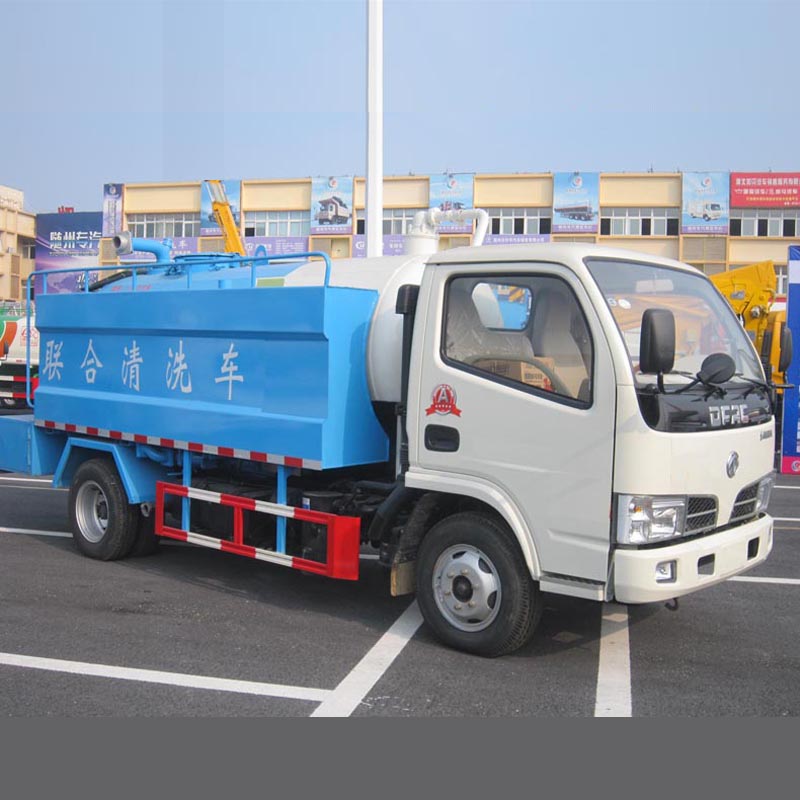

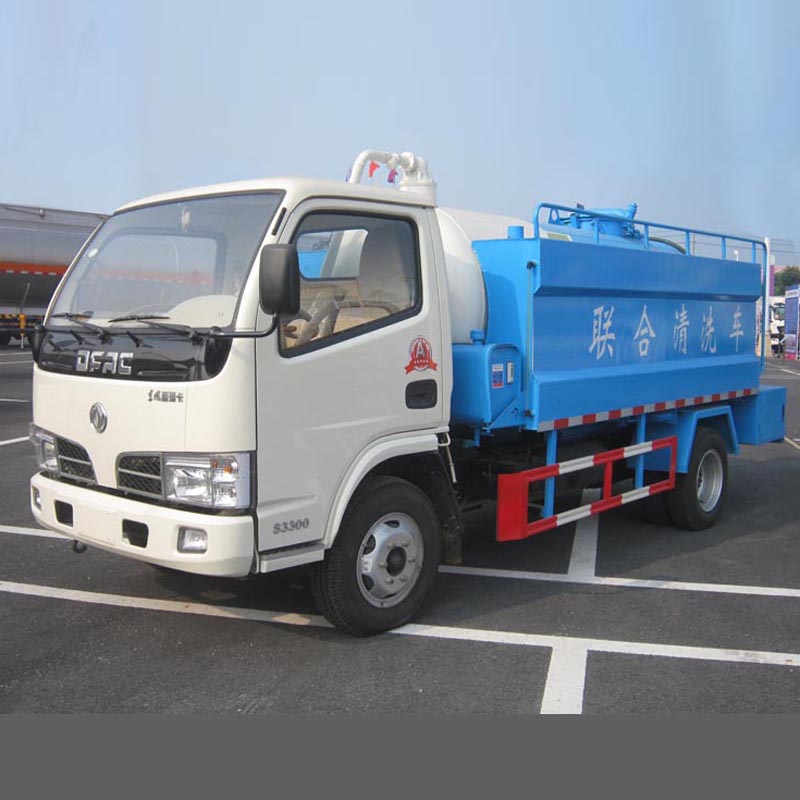

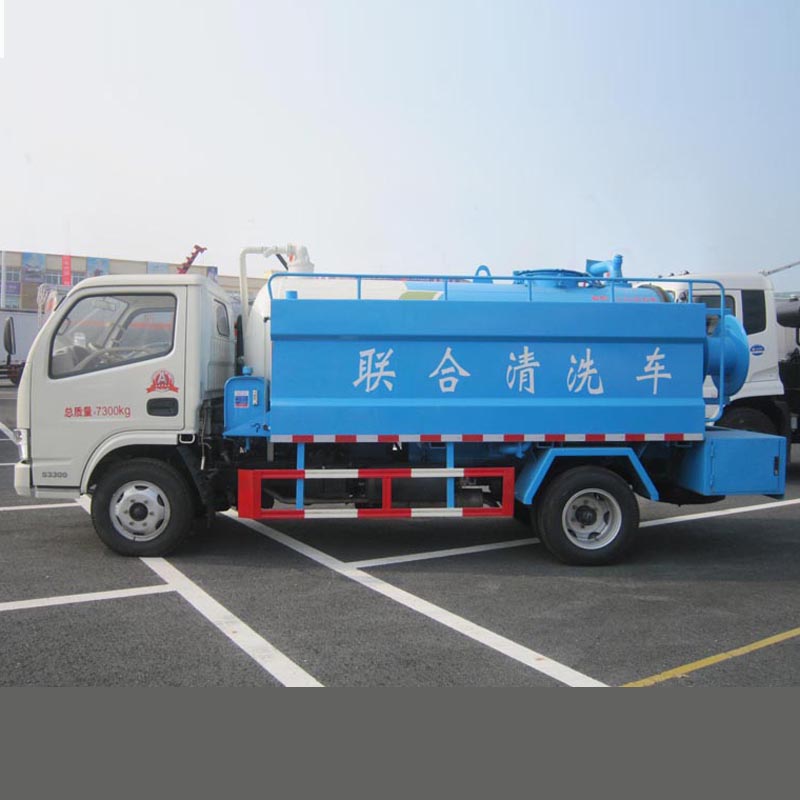

HLW5060GQXWE vacuum suction and pressure washing truck

Vehicle parameters                                                                            www.hltq.com

Vehicle Model

HLW5060GQXWE

Vehicle Brand

FOMON

Overall dimensions

6910X2080X2500mm

Curb weight

4550kg

Vacuum tank volume

4000L

Washing tank volume

1500L

Chassis parameters                                                                           www.hltq.com

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00-16 nylon tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering wheel

Left hand drive

Selective configuration

Air Conditioner,steel wire tire,power assisted steering

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Vacuum suction and pressure washing tank structure parameters                                    www.hltq.com

Vacuum tank volume

4000L

Washing tank volume

1500L

Tank material

Carbon steel

Vacuum tank thickness

6mm

Washing tank thickness

4mm

Color and Logo

Optional

Domestic vacuum pump

Model

XD-63

RPM

900r/min

Italy plunger pump

Model

VX-B 130/160

RPM

1000r/min

Standard configuration

Chassis, sub frame, pressure washing tank, Italy plunger pump, reel with 60 meters pressure hose,10pcs stainless steel high pressure nozzles, tool box; vacuum sewage tank, oil water separator, water gas separator, hydraulic cylinder for unloading device, domestic vacuum pump, pressure gauge, suction hose, gravity flow valve, vacuum tank, connected device, observation tube, automatic anti overflow valve, hydraulic suite, rear door hydraulic opening.
