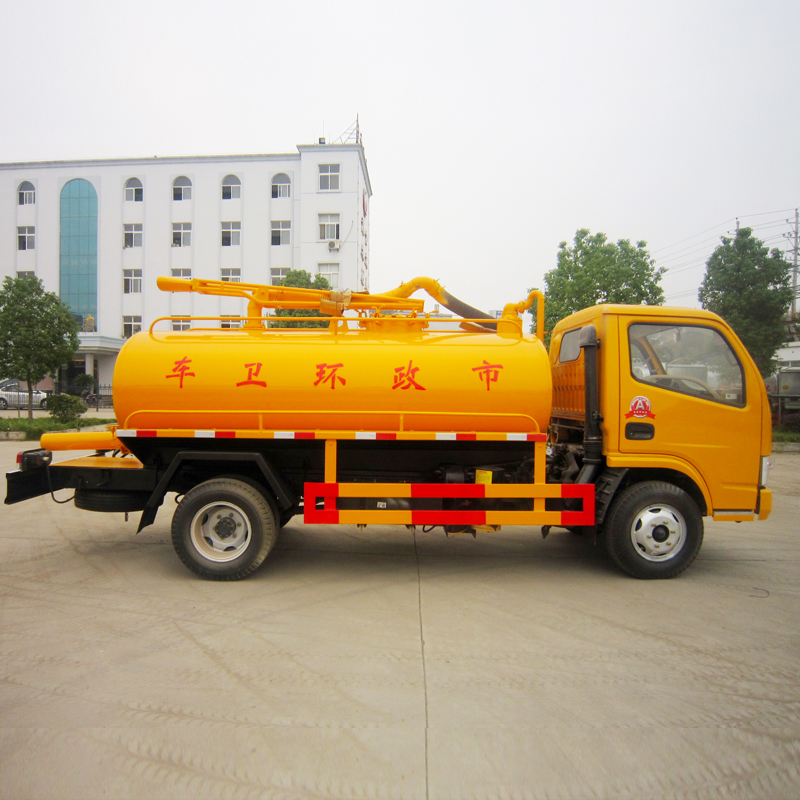

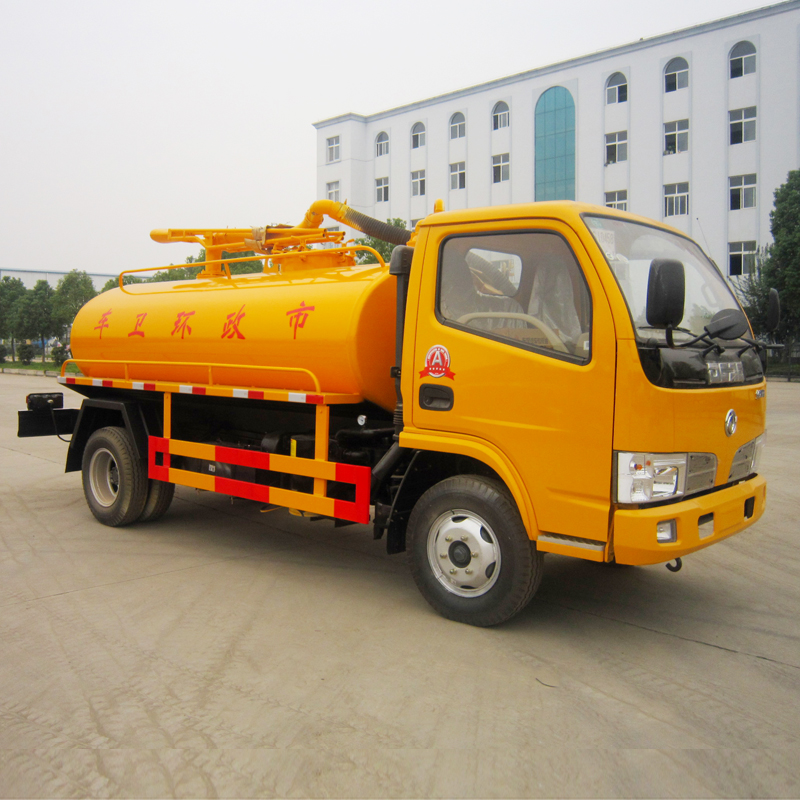

HLW5060GXEE 4000L fecal suction truck

Vehicle parameters                                                                            www.hltq.com

Vehicle Model

HLW5060GXEE

Vehicle Brand

FOMON

Overall dimensions

6000X1940X2600mm

Curb weight

3365kg

Tank dimensions

3390×1600×1060mm

Tank volume

4000L

Chassis parameters                                                                           www.hltq.com

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00-16 nylon tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering wheel

Left hand drive

Selective configuration

Air Conditioner,steel wire tire,power assisted steering

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fecal suction tank structure parameters                                                          www.hltq.com

Tank dimensions

3390×1600×1060mm

Tank volume

4000L

Tank material

Carbon steel

Tank thickness

6mm

Color and Logo

Optional

Standard configuration

Chassis,sub frame,6mm carbon steel fecal tank,6 meters fecal suction pipe, rotating arm, domestic vacuum pump,oil and gas separator, water vapor separator, anti overflow valve, observation tube, gravity flow valve Φ200mm.

Selective configuration

Liquid full alarm device, scraper pump.
