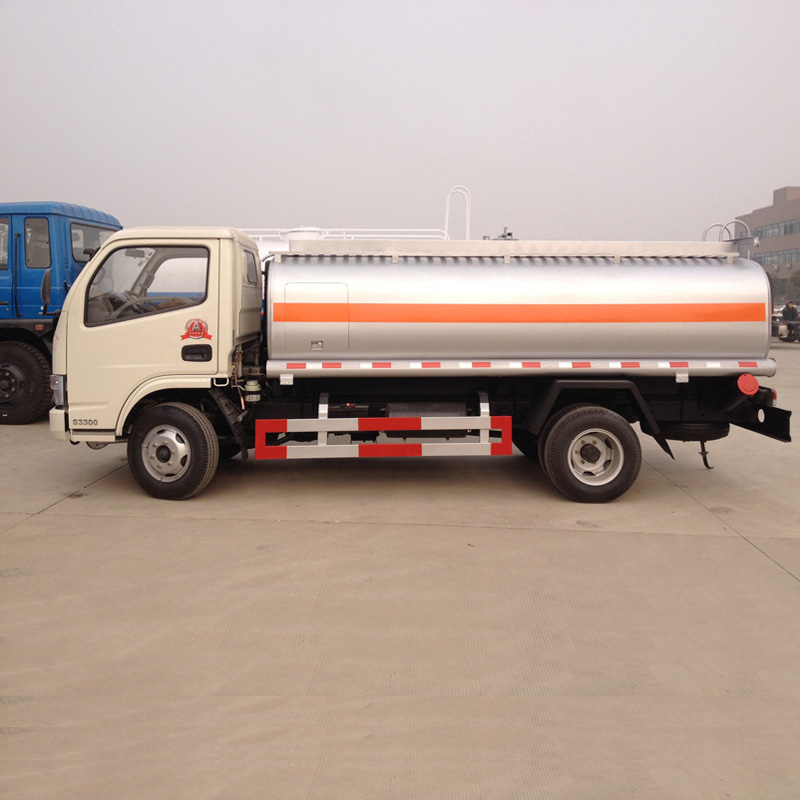

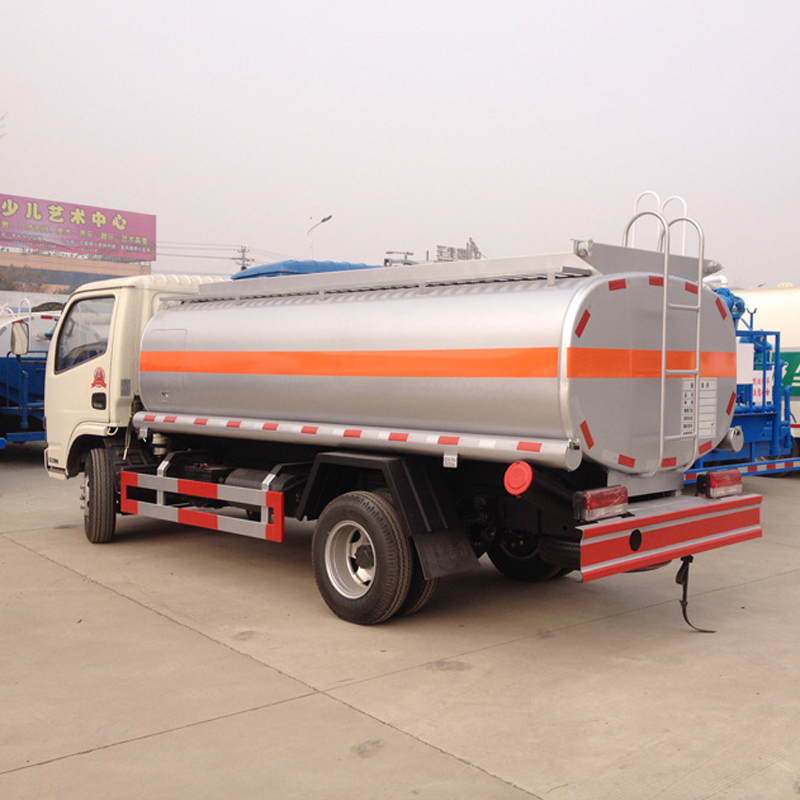

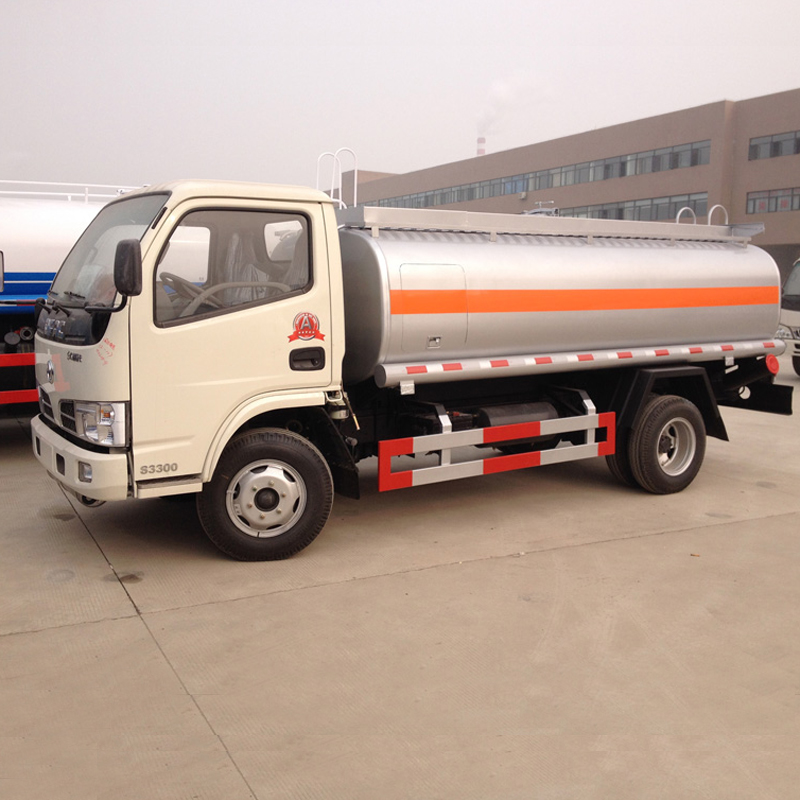

HLW5060GYYE fuel tank truck

Vehicle parameters

Vehicle Model

HLW5060GYYE

Vehicle Brand

Zhongqi Liwei

Overall dimensions

5820×1980×2350mm

Curb weight

3300kg

Tank dimensions

4100×1720×1150mm

Tank volume

6000L

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00R16 steel wire tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering wheel

Left hand drive/ Right hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Fuel tank structure parameters

Tank dimensions

4100×1720×1150mm

Tank volume

6000L

Tank material

Carbon steel

Tank thickness

5mm

Compartment

One

Color and Logo

Optional

Standard configuration

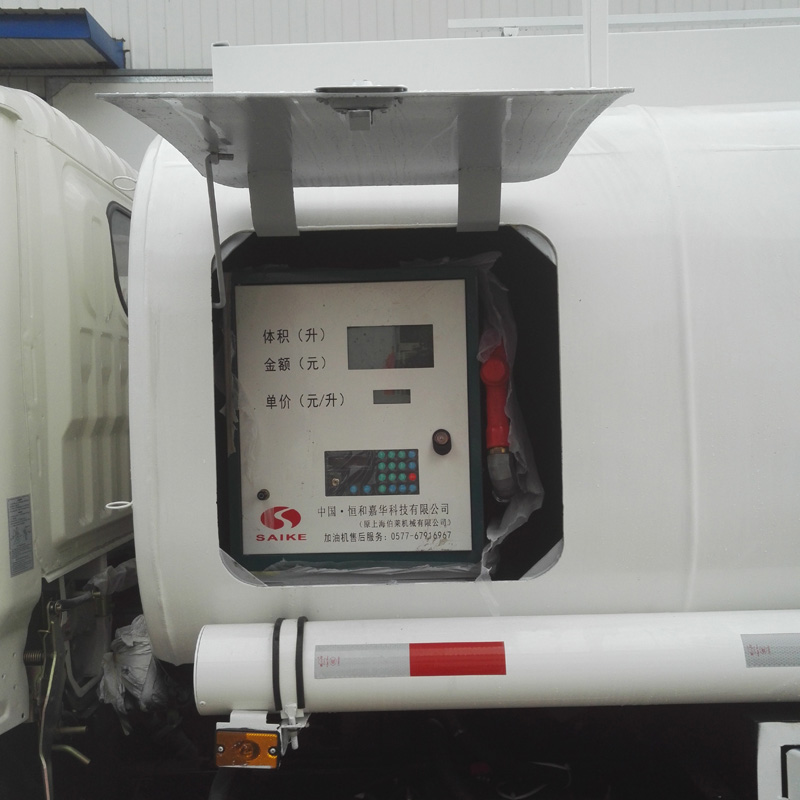

Chassis, carbon steel fuel tank, sub frame, oil pump, oiling machine, flow meter,  two aluminum alloy flow valves, tool box, manhole, climbing ladder, fire extinguisher, oil hose.

Selective configuration

Aluminum alloy fuel tank, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system, divided into several bins.
