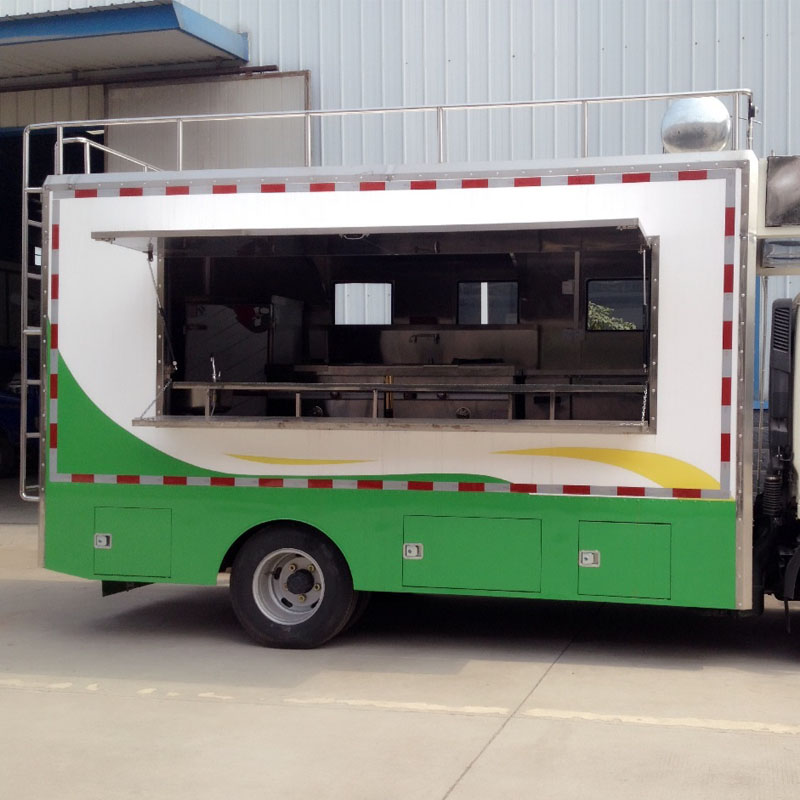

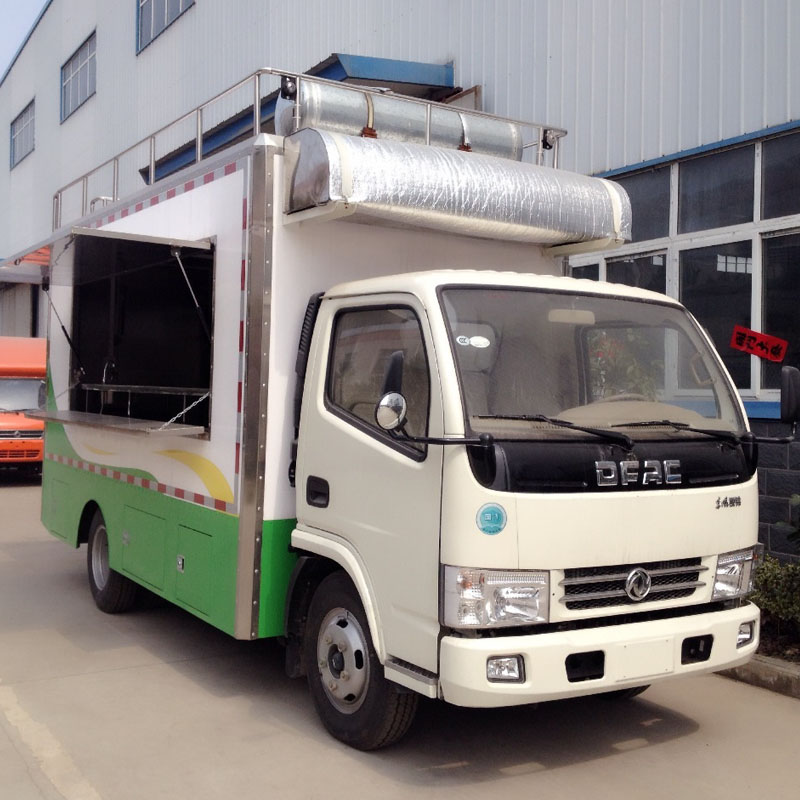

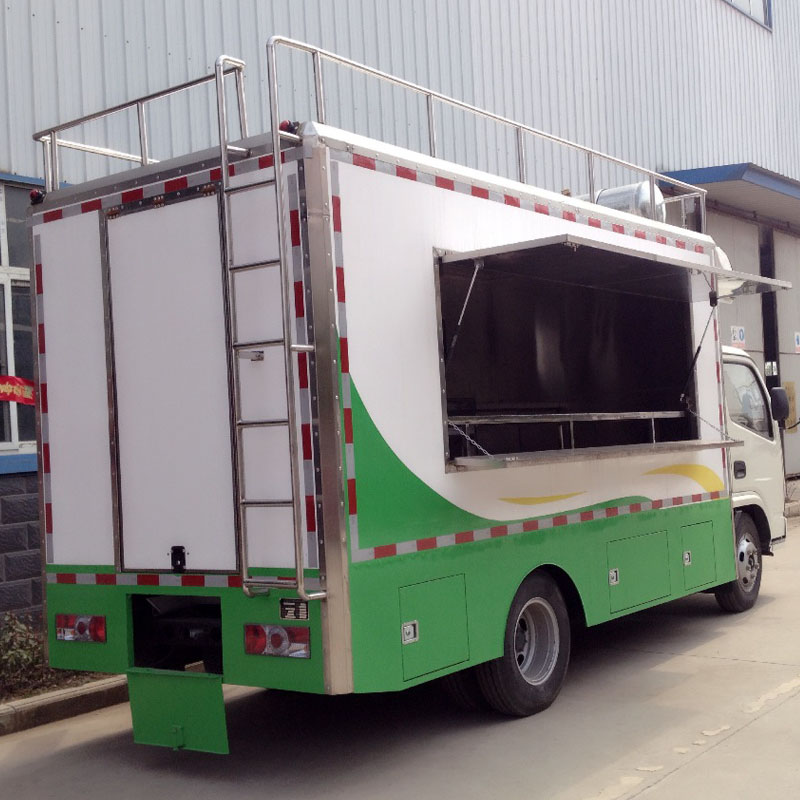

HLW5060XCCE food truck

Vehicle parameters

Vehicle Model

HLW5060XCCE

Vehicle Brand

HLW

Overall dimensions

5995X2090X3300mm

Curb weight

4365kg

Chassis parameters

Chassis model

EQ1060TJ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00R16 steel wire tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Food truck parameters

Box body configuration

1

Dimension

4200x1800x1850mm

2

Material

External FRP, inner stainless steel, thermal insulation, fire protection and insulation layer

3

Thickness

50mm

4

Wallboard

Three ventilation windows on one side, selling windows and sunshades on the other side

5

Peripheral parts

Climbing ladders, guardrails, skylights

6

Flooring material

Aluminum pattern plate

7

Rear door

HxW(1700x800mm)

8

Corner material

Aluminum profile/stainless Steel

9

Apron board

Large enclosure, toolbox, storage box

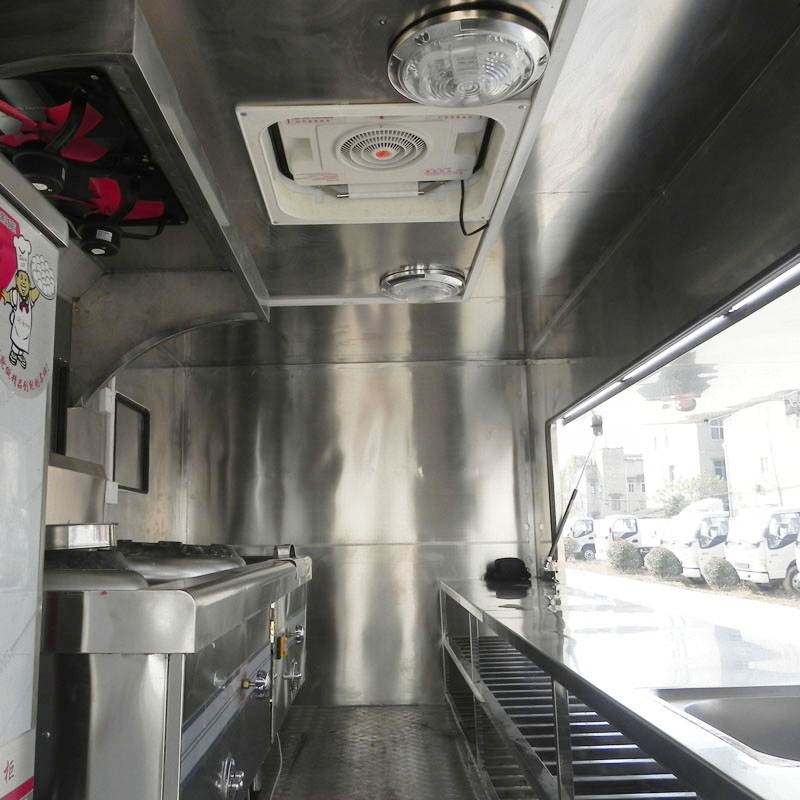

Inner configuration

1

Rice steaming cart

Electric/gas dual use. single cabinet door (10 floors), steamer plate material ( stainless steel), steamer plate size (600x400mm), steamer cabinet size (680x540x1320mm), steamed rice volume (for 300 people),steamed rice time(35 minutes)

2

Cooking bench

Dual stove, material (stainless steel), size (1800x1500x820mm), fuel ( methanol/ diesel/ natural gas)

3

Refrigerator

Stainless steel (1500x600x800mm)

4

Selling window

It can be expanded up and down,up (sunshade), down (selling window, 1.33 meters above ground )

5

Operations area

Operating panel (drawing/ pattern stainless steel), hand wash basin (stainless steel,420x370mm)

6

Cooker hood

Stainless steel, wall fan, top vent

7

Water purifying box

Stainless steel, with booster pump, 290L

8

Bilge tank

Stainless steel, with stainless steel ball valve, 300L

9

Fuel tank

Stainless steel,120L

10

Top window

Manual, 600x60mm

11

Climbing ladder

Stainless steel

12

Guardrail

Stainless steel

13

Circuit

Electronic control box, main switch of power supply, lighting circuit, 15 meters external power supply line

14

Ventilation windows

3 pieces, 390x480mm

Optional configuration

1

Fuel Generator

Gasoline/3KW/light generator

2

Air conditioner

1P wall hanging (GREE/MIDEA)

3

Soybean milk machine

Multipurpose

4

Insulation pail

Stainless steel, 50L, insulation performance (6-12 hours)

5

Sealing machine

Manual/automatic

6

Steam table

Stainless steel, 6 lattices/12 lattices

7

Oven

MIDEA 21-30L, 450x300x230mm

8

Water heater

Fast-heating, hanging water heater, 30L/40L/60L
