Product introduction:
Vehicle parameters www.hltq.com |
|||
Vehicle Model |
HLW5060ZZZE |
Vehicle Brand |
FOMON |
Overall dimensions |
5750X1940X2150mm |
Curb weight |
3365kg |
Van body volume |
4-5m3 |
|
|
Chassis parameters www.hltq.com |
|||||
Chassis model |
EQ1060TJ20D3 |
Chassis brand |
DONGFENG |
||
Overall dimensions |
5820x1940x2080mm |
Wheel base |
3300mm |
||
Front/rear wheel track |
1506/1466mm |
Front/rear suspension |
1032/1488mm |
||
Approach/departure angle |
19/15° |
Maximum speed |
80km/h |
||
Chassis Manufacturer |
Dongfeng Automobile Co.,Ltd |
||||
Cab |
Configuration |
Single row cab,allowable 3 passengers |
|||
Color |
White,other color is optional |
||||
Engine |
Model |
CY4102-C3F |
|||
Emission |
Euro 3 |
||||
Type |
in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine |
||||
Rated power |
95hp,rated power speed 3200rpm |
||||
Displacement |
3856ml |
||||
Bore x stroke |
102x118mm |
||||
Manufacturer |
Dongfeng Chaoyang Diesel Power Co. Ltd. |
||||
Tire |
Size |
7.00-16 nylon tire |
|||
Number |
6+1 nos |
||||
Fuel tank |
100L,steel |
||||
Front axle |
2.0T |
||||
Rear axle |
4.0T |
||||
Drive form |
4X2 |
||||
Rated voltage |
24V,DC |
||||
Transmissions |
5 speed forward 1 reverse. |
||||
Steering wheel |
Left hand drive |
||||
Selective configuration |
Air Conditioner,steel wire tire,power assisted steering |
||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
|||||

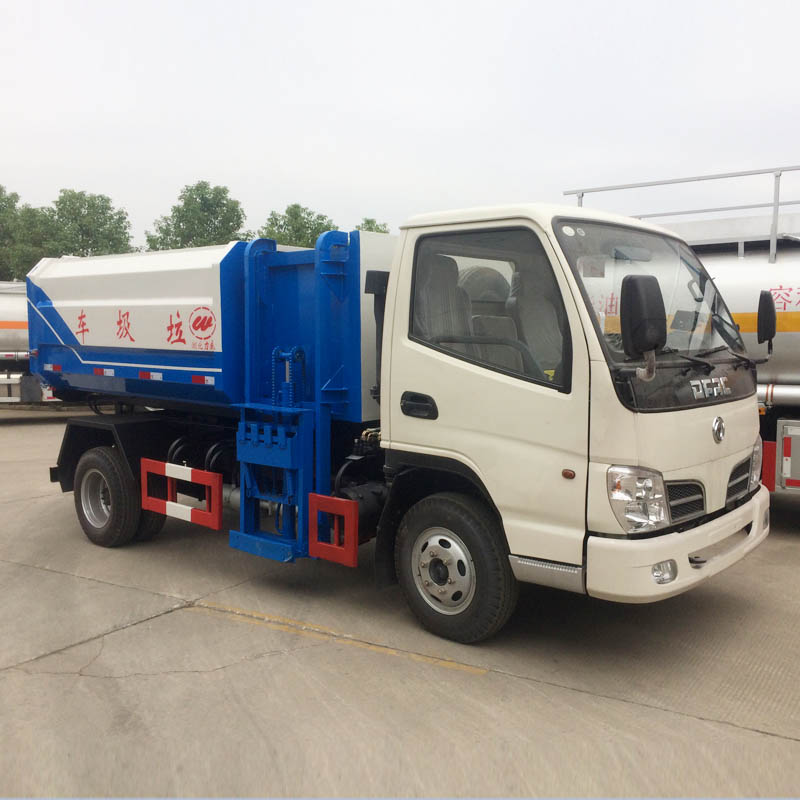

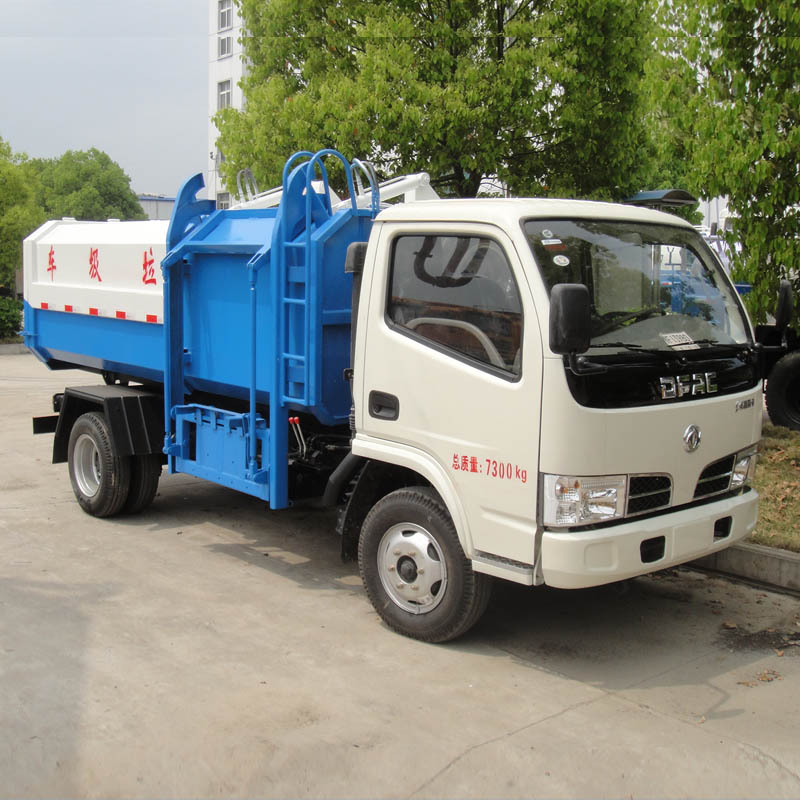

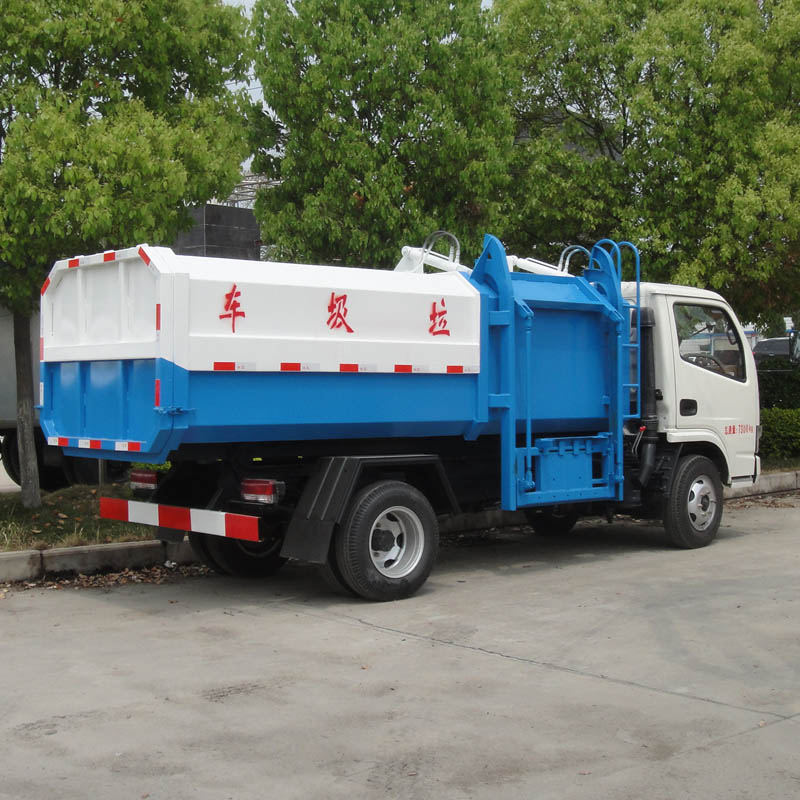

Side loader garbage truck structure parameters www.hltq.com |
||||
Tank material |
Carbon steel |
Van body volume |
4-5m3 |
|
Side wall |
2.5mm |
Bottom plate |
3mm |
|
Color and Logo |
Optional |
|
|
|
Standard configuration |
Chassis,sub frame,van body with rear door and top cover,scraper,hydraulic cylinder for unloading,garbage bins lifting system. |
|||
Selective configuration |
Hydraulic rear door. |
