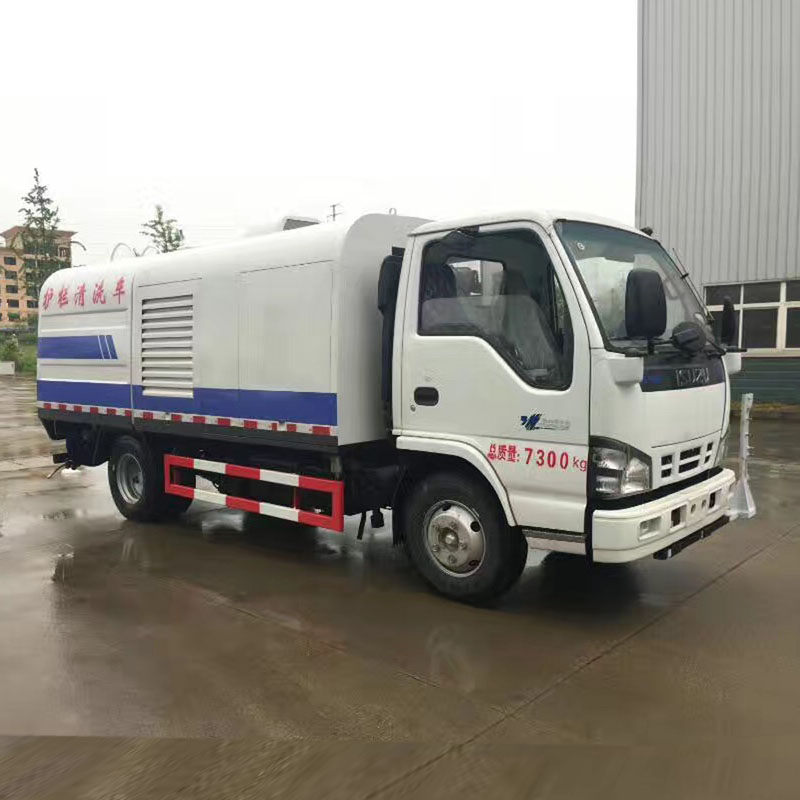

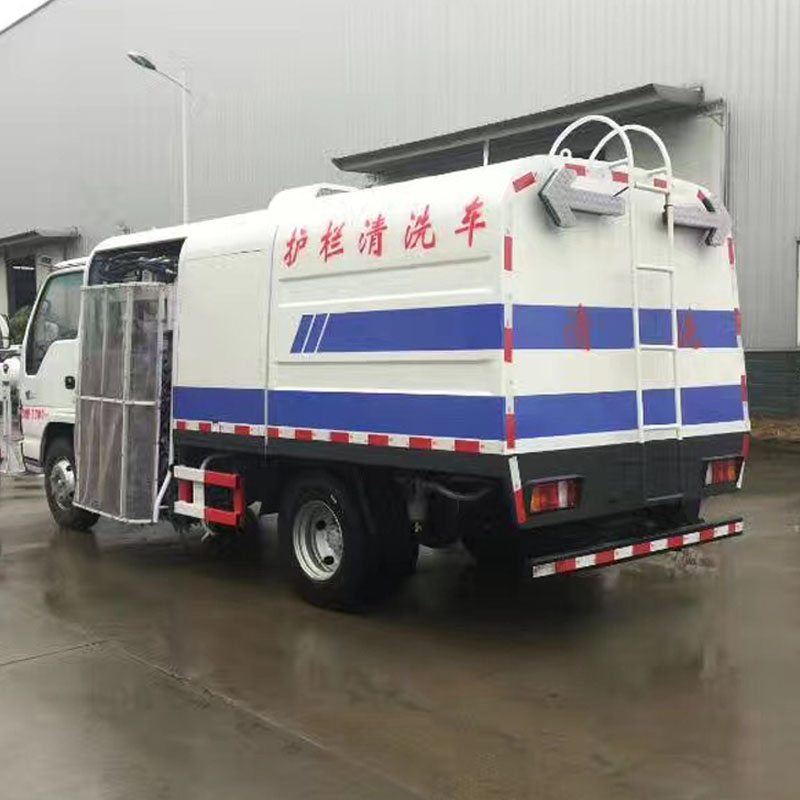

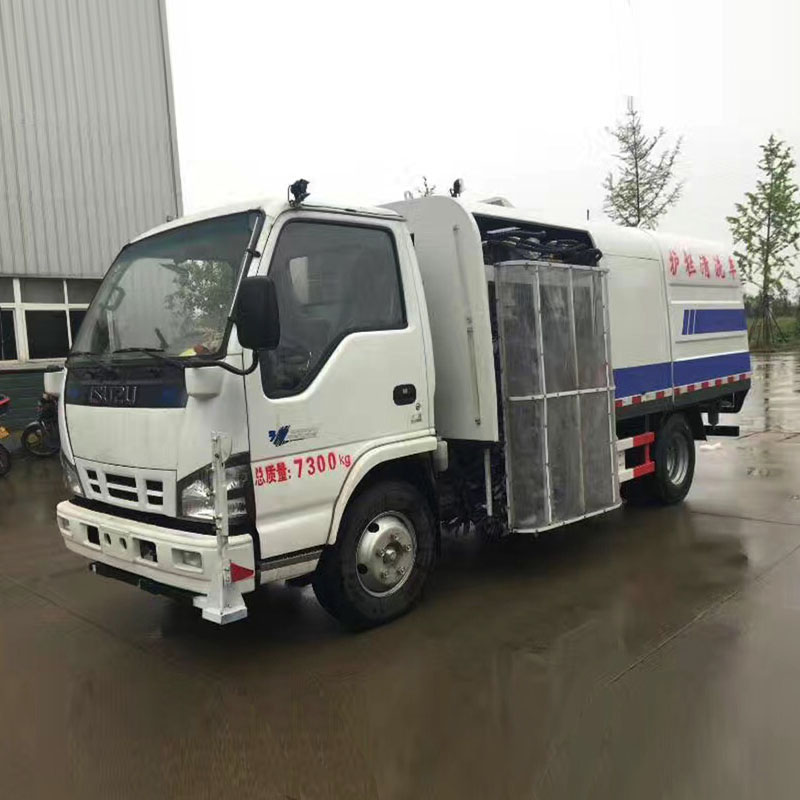

HLW5070GQXQ guardrail cleaning truck

Vehicle parameters

Vehicle Model

HLW5070GQXQ

Vehicle Brand

HLW

Overall dimensions

5990×2200×2600mm

Curb weight

4990kg

Tank volume

4000L

Chassis parameters

Chassis model

QL1070A1HAY

Chassis brand

ISUZU

Overall dimensions

5900X1880X2160mm

Wheel base

3360mm

Front/rear wheel track

1504/1425mm

Front/rear suspension

1015/1525mm

Approach/departure angle

24/16°

Maximum speed

105km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Cab

Configuration

600P,single row cab,allowable 3 passengers, air conditioner, USB radio interface,car interior

Color

White,other color is optional

Engine

Model

4KH1-TCG40

Emission

Euro 4

Type

4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve, diesel engine

Rated power

120hp,rated power speed 3400rpm

Displacement

2999ml

Manufacturer

Isuzu (chongqing) engine Co., Ltd.

Tire

Size

7.00-16 14PR nylon tire

Number

6+1 nos

Frame

172X65(4+3)mm

Front axle

2.5 tons

Rear axle

4.8 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MSB five speed transmission,5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

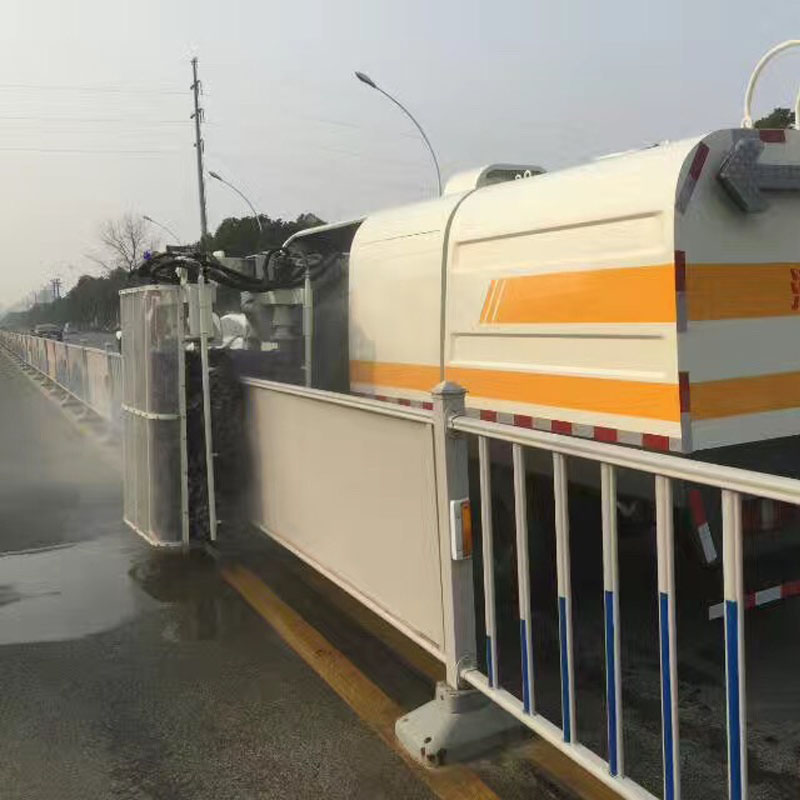

Guardrail cleaning truck structure parameters

performance parameter

Tank volume

4000L

Rolling brush

4 sets

Cleaning width

0-260mm

Rotation rate of rolling brush

150-300r/min

Cleaning area

2400-12000m/h

Cleaning speed

3-15km/h

Maximum cleaning height

1200-1400mm

Working noise

<88db

Hydraulic system

gear pump, motor, hydraulic cylinder, solenoid valve, integrated block, hydraulic radiator

Sprinkler system

high pressure water pump, filter, pipe, stainless steel nozzle
