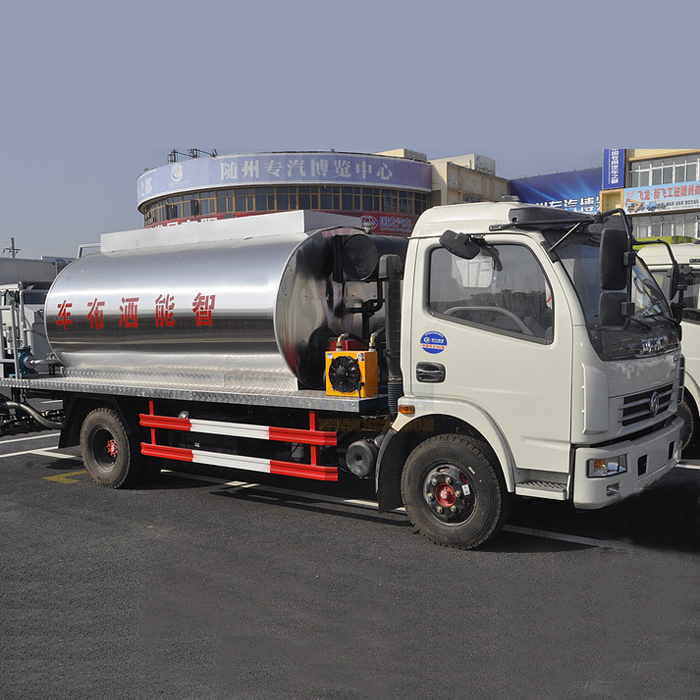

HLW5080GLQ Asphalt Distributor Truck

Common type

Asphalt pump: special pump for emulsified asphalt;

Hydraulic systerm: hydraulic pump(CBQ540-L), hydraulic motor for asphalt pump(05-90-BD31), manual reversing valve;

Spraying width 4.5 meters, 15 pieces asphalt nozzles;

Heating mode: Italian imported Riyadh burner (G10) , burns directly without heat conducting oil;

Spraying medium: only emulsified asphalt can be sprayed.

Standard type

Asphalt pump: QGB680 (High Viscosity Asphalt Pump, 680L/min)

Hydraulic systerm: Hydraulic pump(CBQ550-L), hydraulic motor for asphalt pump(05-110-BD31), manual reversing valve;

Spraying width 4.5 meters;

Control mode: controlled of rear platform operating box; 34 pieces pneumatic nozzles (one control two);

Heating mode: Italian imported Riyal burner (G10) +heat conducting oil automatic heating;

Generator: 6KW, Gasoline

Spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc.

Intelligent type

Asphalt pump: QGB680 (High Viscosity Asphalt Pump);

Hydraulic systerm: proportional valve (Taiwan EFBG-03-160-HF), automatic reversing valve and relief valve, hydraulic motor for asphalt pump(05-110-BD31), hydraulic pump(CBQ550-L);

Control mode: touch screen computer intelligent control in the cab, control system (German STW module); 34 pieces asphalt intelligent nozzles (one control one);

Heating mode: Italian imported Riyal burner (G20) +heat conducting oil automatic heating;

Generator: 6KW, Gasoline;

Spraying flow: 0.25-3.0L/m2;

Spraying width 4.5 meters;

Spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc.

Intelligent import type

Asphalt pump: Amarica Wiken;

Hydraulic systerm: proportional valve (Taiwan EFBG-03-160-HF), reversing valve and relief valve (Shanxi yuci), hydraulic motor for asphalt pump(A2F63W, German Rexroth), hydraulic pump (German Rexroth), radiator (Rizhao brand);

Control mode: touch screen computer intelligent control in the cab, control system (German STW module); 34 pieces asphalt intelligent nozzles (one control one);

Heating mode: Italian imported Riyal burner (G20) +heat conducting oil automatic heating;

Generator: Honda 5.5KW, Gasoline;

Spraying width 4.5-6 meters

Spraying flow: 0.2-3.0L/m2;

Spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc.
