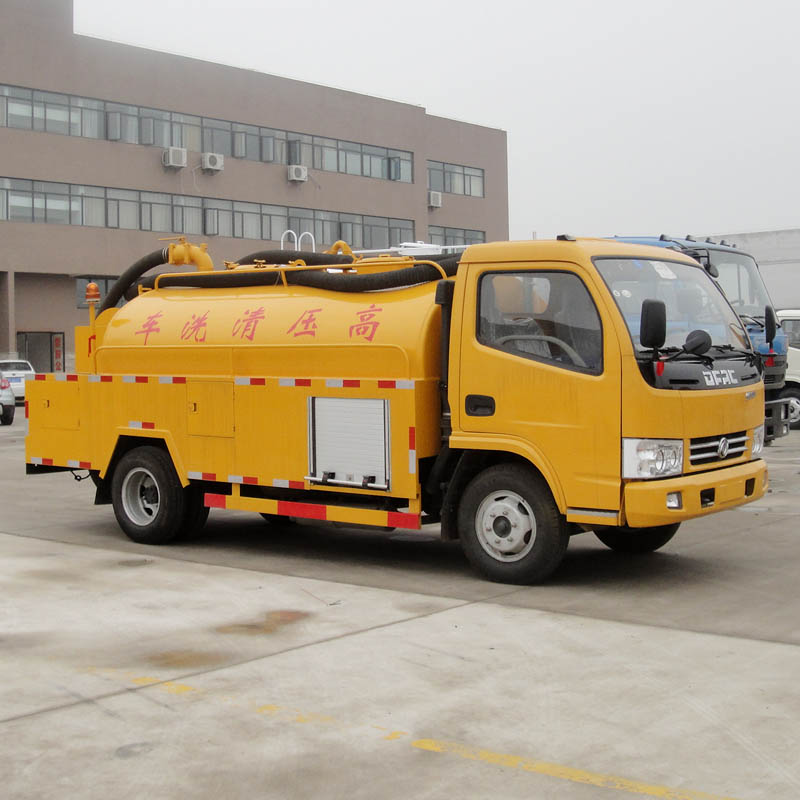

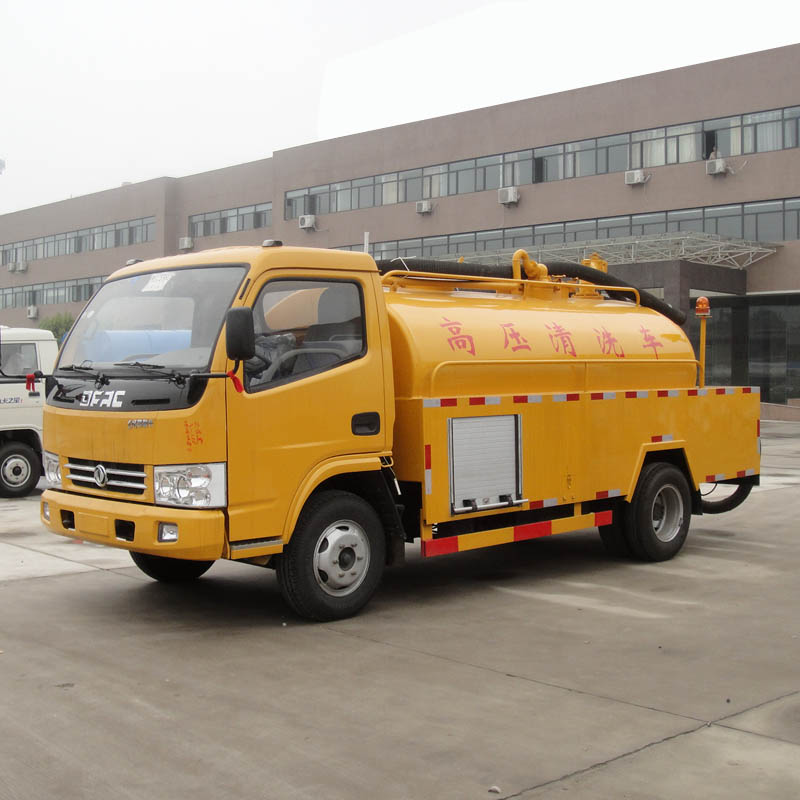

HLW5090GQXE pressure washing truck

Vehicle parameters                                                                            www.hltq.com

Vehicle Model

HLW5090GQXE

Vehicle Brand

FOMON

Overall dimensions

7000×2285×2500mm

Curb weight

4405kg

Tank dimensions

1600×1800×1250mm

Tank volume

5000L

Chassis parameters                                                                           www.hltq.com

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

White,other color is optional

Engine

Model

CY4102-E3C

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

120hp,rated power speed 2800rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Frame

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

2.4T

Rear axle

4.2T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner, Cummins engine B140 33(140hp)

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Pressure washing tank structure parameters                                                www.hltq.com

Tank dimensions

1600×1800×1250mm

Tank volume

5000L

Tank material

Carbon steel

Tank thickness

4/5mm

Color and Logo

Optional

Italy UDOR plunger pump

Model

VX-B 130/160 R-L

RPM

1000r/min

Flow

124L/min

Pressure

16Mpa

Power

37.4kw

Weight

57kg

Standard configuration

Chassis,sub frame,pressure washing tank,Italy UDOR plunger pump VX-B 130/160 R-L,reel with 60 meters pressure hose,10 units stainless steel high pressure nozzles,tool box.
