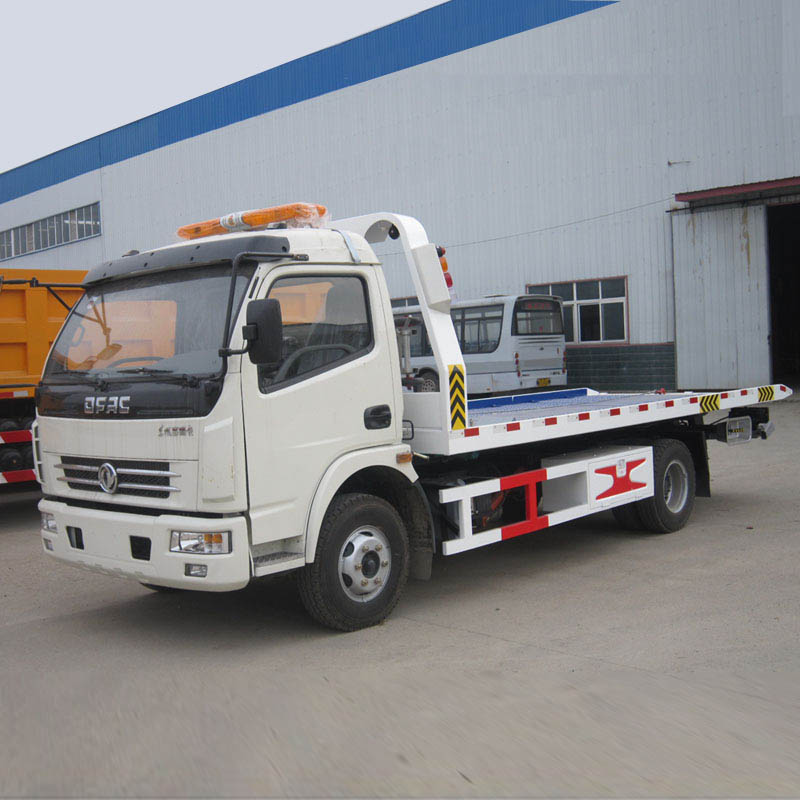

HLW5090TQZE wrecker truck

  •  HLW5090TQZE wrecker truck
HLW5090TQZE wrecker truck

Product name: HLW5090TQZE wrecker truck

Category: Wrecker Truck

Brand Dongfeng

Half landing

One pull two

Engine 120hp

Product introduction:



Vehicle parameters

Vehicle Model

HLW5090TQZE

Vehicle Brand

HLW

Overall dimensions

7450X2300X2650mm

Curb weight

5295kg

Platform dimensions

5600X2300mm







Chassis parameters

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

White,other color is optional

Engine

Model

YC4FA120-33

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

120hp,rated power speed 3200rpm

Displacement

2982ml

Bore x stroke

96x100mm

Manufacturer

Yuchai Diesel Power Co. Ltd.

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Frame

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

3.0T

Rear axle

5.5T

Drive form

4X2

Rated voltage

24V,90Ah

Brake system

Air brake

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard


Wrecker structure parameters

Platform dimensions

5600X2300mm

Platform material

3mm Stamping plate or 5mm pattern plate

Front hydraulic winch

4 tons

Rear lifting

3 tons

Color and Logo

Optional





Standard configuration

chassis,sub frame,platform with winch, auxiliary wheel, bundling belt, automatic slide, lights,small wheel cover,rear lifting 3 tons,front winch 4 tons.
