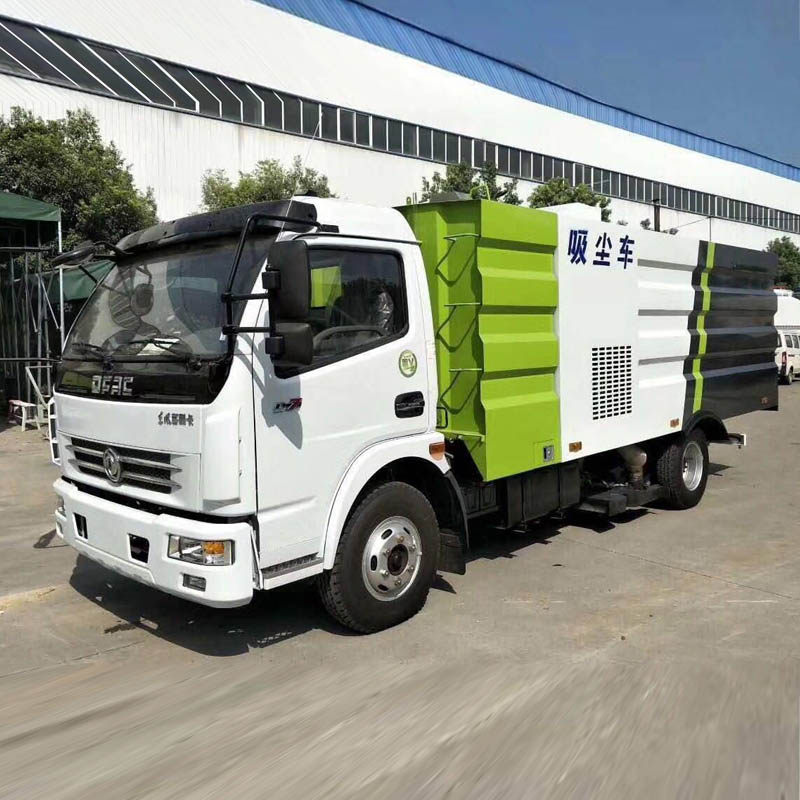

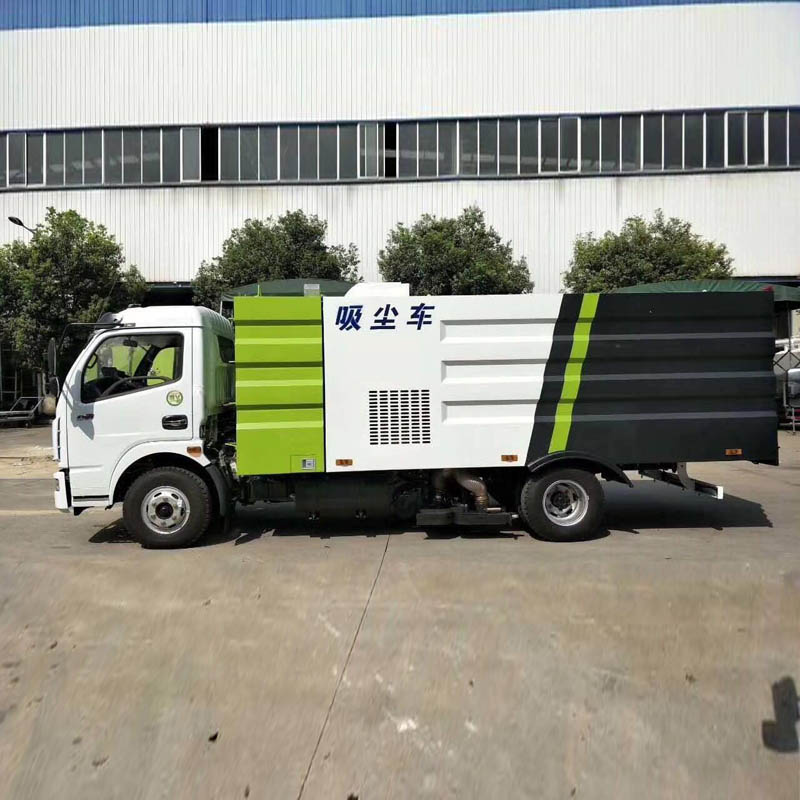

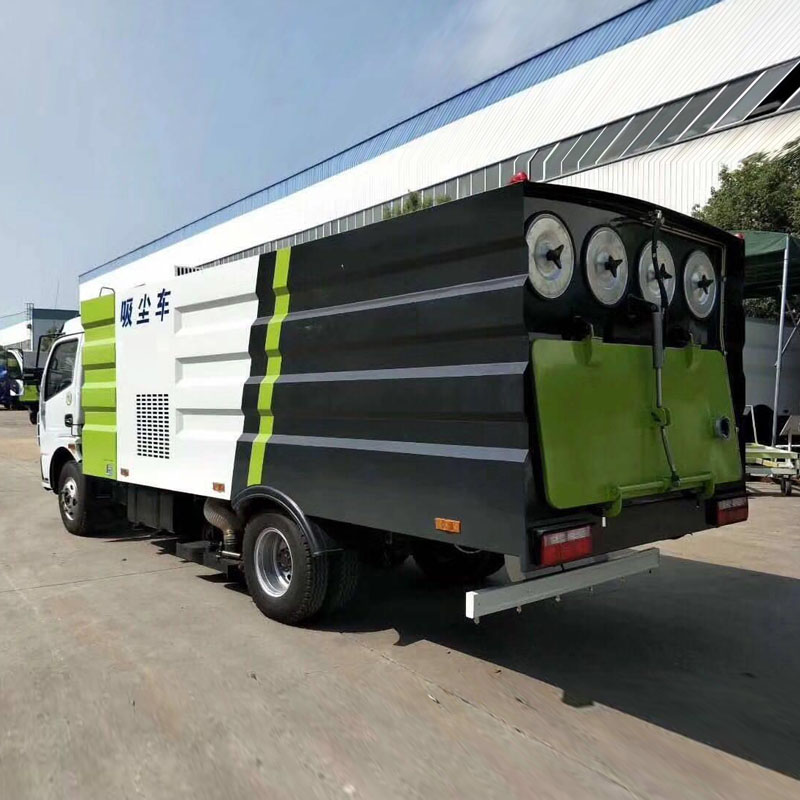

HLW5090TXCE vacuum dust absorption truck

Vehicle parameters

Vehicle Model

HLW5090TXCE

Vehicle Brand

HLW

Overall dimensions

6800X2200X2700mm

Curb weight

6800kg

Dust tank volume

5000L

Water tank volume

1500L

Chassis parameters

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

White,other color is optional

Engine

Model

CY4102-E3C

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

120hp,rated power speed 2800rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Frame

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

2.4T

Rear axle

4.2T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner, Cummins engine B140 33(140hp)

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Dust tank volume

5000L

Water tank volume

1500L

Sweep width

3000m

Cleaning speed

3-20km/h

Cleaning ability

9000-60000 m2/h

Cleaning efficiency

98%

Maximum suction particle

120mm

Min. clearance of suction nozzle

200mm

Unloading angle

45°

Unloading height

970mm

Color and Logo

Optional

Standard configuration

Chassis, sub frame,central suction cup, stainless steel vacuum tank, water tank, stainless steel body, 5T centrifugal fan, auxiliary engine Isuzu engine 57KW, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system,hydraulic motor, disconnect-type clutch,electronic water pump, rear LED arrow lamp.
