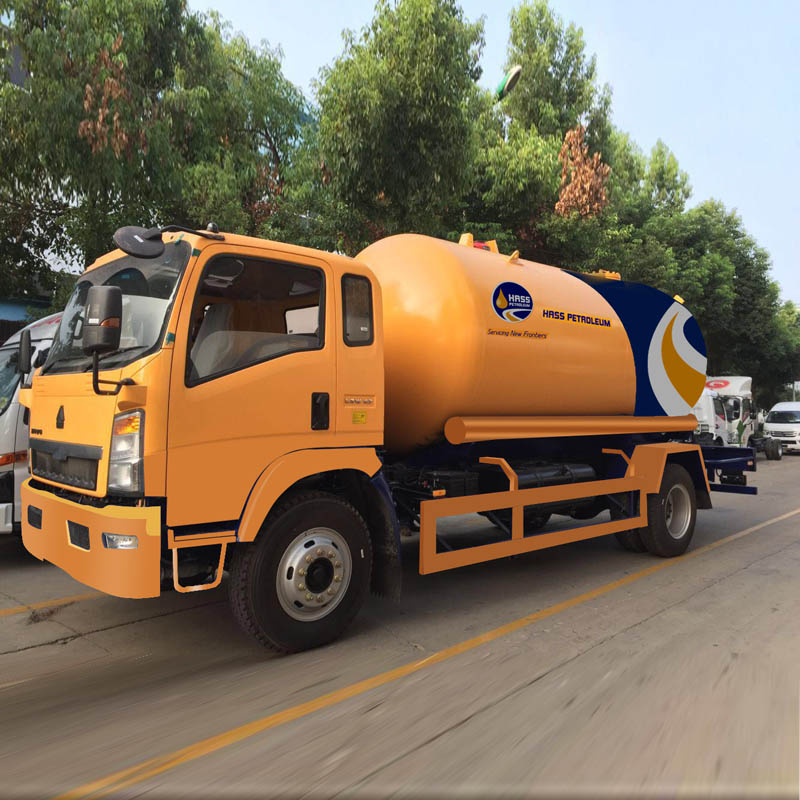

HLW5107GYQZ lpg truck

  •  HLW5107GYQZ lpg truck
HLW5107GYQZ lpg truck

Product name: HLW5107GYQZ lpg truck

Category: LPG Truck

Brand HOWO

Tank volume 8m3

Engine YN38PE-1 115hp

Wheel base 3800mm

Product introduction:

Vehicle parameters

Vehicle Model

HLW5107GYQZ

Vehicle Brand

HLW

Overall dimensions

7900X2350X2800mm

Curb weight

8700kg

Tank dimensions

4300×1500×1500mm

Tank volume

8m3

Loading medium

Propane







Chassis parameters

Chassis model

ZZ1107D3815C1

Chassis brand

SINOTRUK HOWO

Overall dimensions

6810X2330X2550mm

Wheel base

3800mm

Front/rear wheel track

1798/1764mm

Front/rear suspension

1240/1770mm

Approach/departure angle

27/23°

Maximum speed

95km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co., Ltd

Cab

Configuration

2080 a row and a half cab,allowable 3 passengers

Color

White,other color is optional

Engine

Model

YN38PE-1

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

115hp,rated power speed 3000rpm

Displacement

3760ml

Bore x stroke

102x115mm

Manufacturer

Kunming Yunnei Power Co., Ltd

Tire

Size

8.25R16 steel wire tire

Number

6+1 nos

Frame

210mm

Oil tank

120L steel tank

Brake system

Air brake

Front axle

2.7T

Rear axle

7.2T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox WLY6T46, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard



Upper structure parameters

Design Pressure

1.77Mpa

Design temperature

50°

Tank capacity

8,000 liters

Filling medium

 LPG(Propane)

Tank material

Q345R

Corrosion allowance

1.00 mm

Heat treatment method

PWHT

Tank mass

3190kg

Hydraulic test pressure

2.66Mpa

Diameter x Thickness x length

1500x10x4300 mm

Color

Optional





Standard configuration

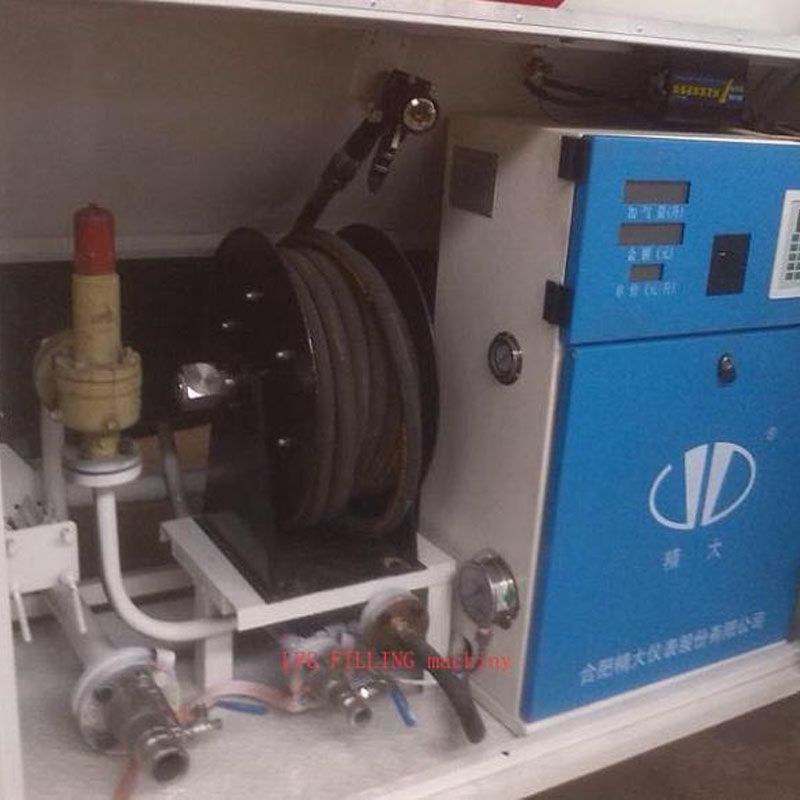

Safety valve, emergency cut-off valve, liquid level meter, temperature gauge, pressure gauge, gas machine, Filling gun

Selective configuration

Please fill in here
