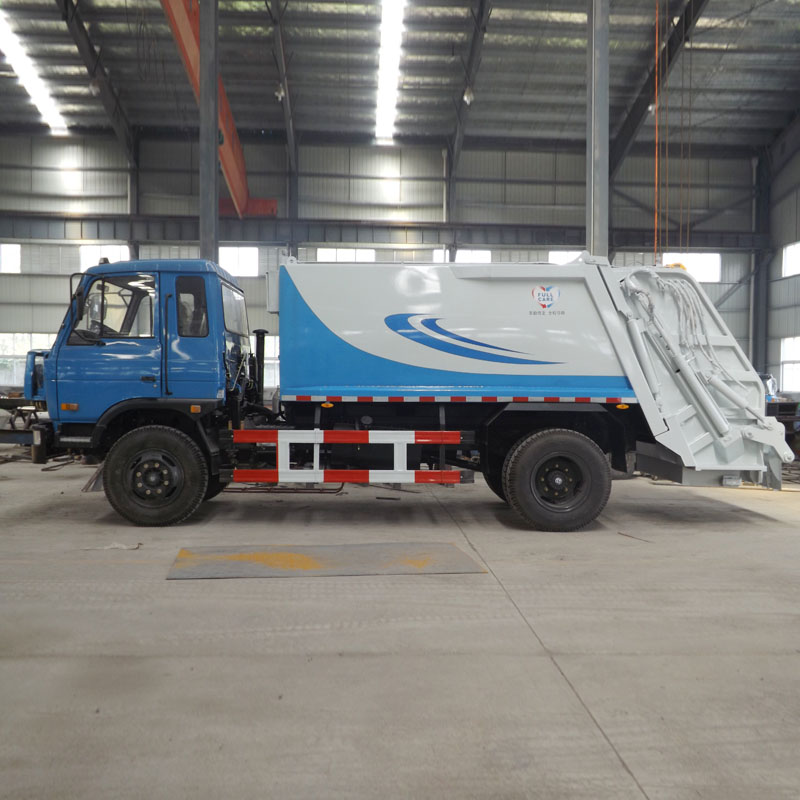

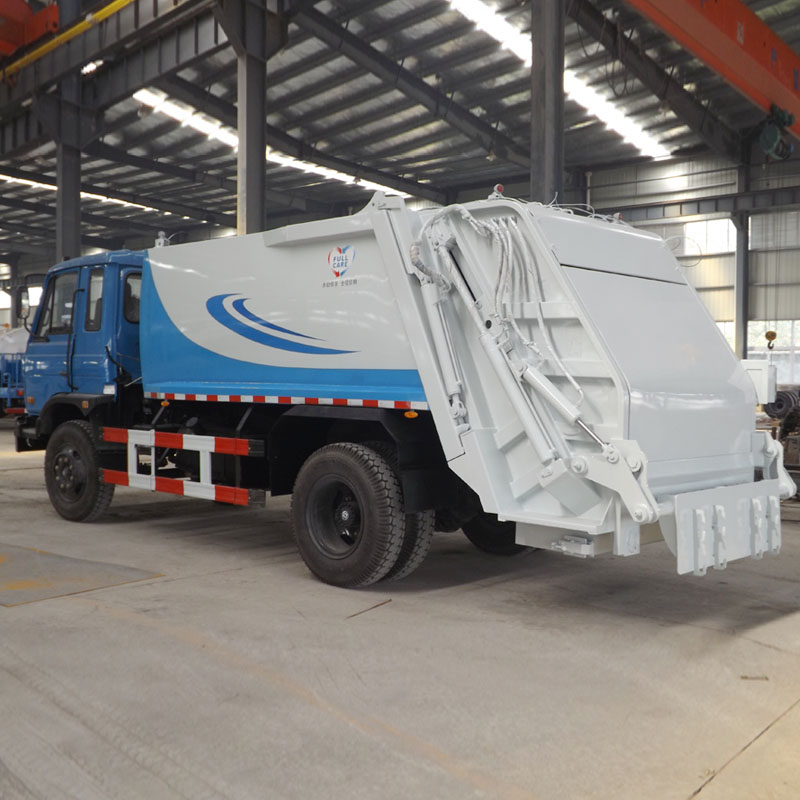

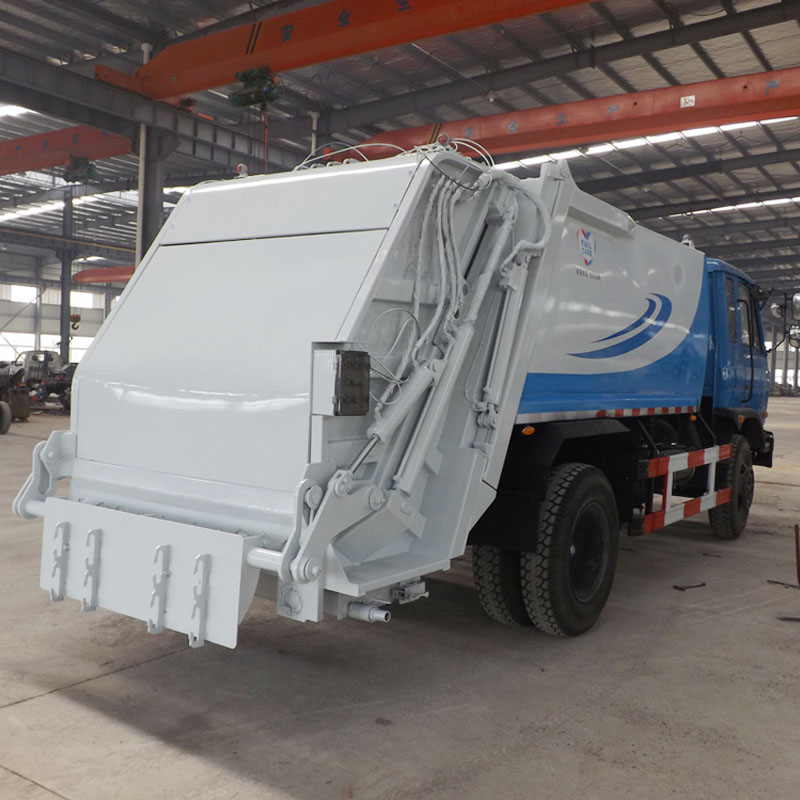

HLW5108ZYSE refuse compactor

Vehicle parameters

Vehicle Model

HLW5108ZYSE

Vehicle Brand

HLW

Overall dimensions

7580×2470×3000mm

Curb weight

8350kg

Loading capacity

10m3

Chassis parameters

Chassis model

EQ1108KJ

Chassis brand

DONGFENG

Overall dimensions

6975X2462X2690mm

Wheel base

3950mm

Front/rear wheel track

1900/1800mm

Front/rear suspension

1205/1820mm

Approach/departure angle

25/18°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Blue,other color is optional

Engine

Model

B170 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

170hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

560N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00-20 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

9.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner,steel wire tire,new driver’s cab

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Equipment

Structure

Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems

Loading capacity

10m3

System of loading

Mechanized, rear loading

Modes of the pressing

Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic

Body

Version

All-metal

Shape

arc-shaped

Sidewalls

Sheet carbon steel (thickness: 4 mm)

Bottom

Sheet carbon steel (thickness: 4 mm)

Roof

Sheet carbon steel (thickness: 4 mm)

Front frame

Sheet carbonaceous steel (thickness: 5 mm)

Rear frame

П-shaped profile from sheet carbon steel (thickness:5 mm)

Basis

120х120mm (thickness: 5 mm)

Loading bunker

Loading bunker

All-metal with sidewalls and a loading ladle

Volume

1.2 m3

Sidewalls

Sheet carbon steel (thickness: 4 mm)

Ladle floor material

Sheet carbon steel (thickness: 4 mm)

Liquid drain

Drainage channel,sewage tank

Working zone Lighting

2 lamps

Mechanism of raising

Two hydraulic cylinders

Ensuring tightness

Between the body and lifting back part in the lower part profile acid-proof rubber is used.

Pressing system

Features

Control mode diversification,bidirectional compression

Pressure

16Mpa

Compaction ratio

 3.0:1

Loading cycle

25-30 second

Unloading cycle

15-20 second

pressing mechanism

The giving plate and  hinge related pressing plate moving on two directing bars

Pressing mode

Automatic pressing

(1 full cycle and continuous pressing) and controlling of each cycle of pressing separately

Control of  pressing

Control from the external panel on the bunker

Lifting rear part

Mechanism of lifting

Two hydraulic cylinders

Function description

Suitable for various rubbish bins

Others

Color and Logo

Optional

Standard configuration

Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control.

Selective configuration

PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc.
