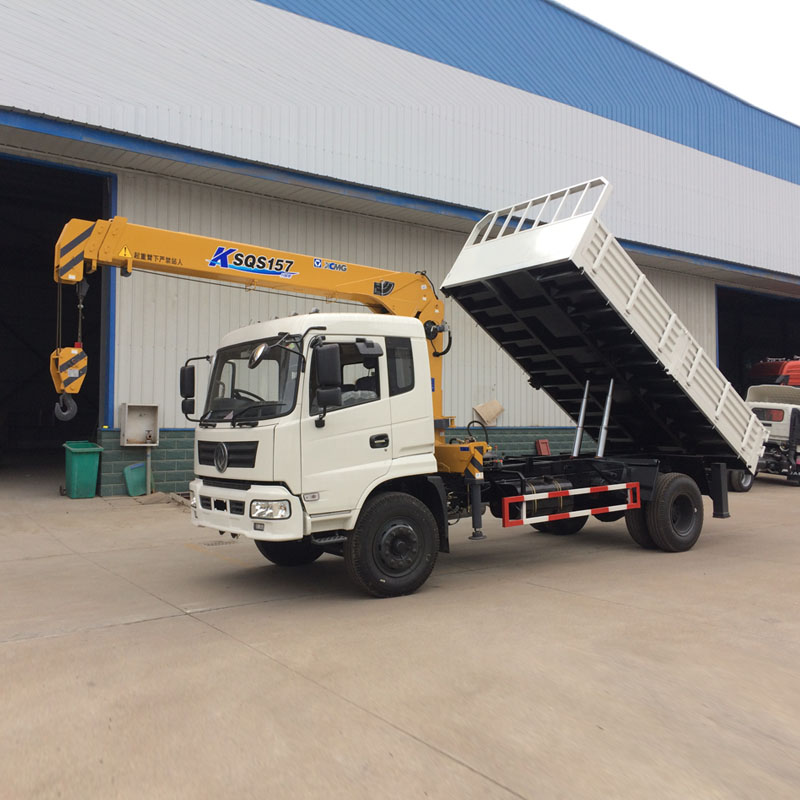

HLW5126JSQE-R RHD dump truck mounted crane

Vehicle parameters

Vehicle Model

HLW5126JSQE-R

Vehicle Brand

HLW

Overall dimensions

8600X2500X3710mm

Curb weight

9100kg

Van dimensions

5200X2300X500mm

Maximum loading of crane

6.3 tons

Chassis parameters

Chassis model

EQ1126KJ1

Chassis brand

DONGFENG

Overall dimensions

7955x2462x2690mm

Wheel base

4700mm

Front/rear wheel track

1900/1800mm

Front/rear suspension

1205/2050mm

Approach/departure angle

20/13°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

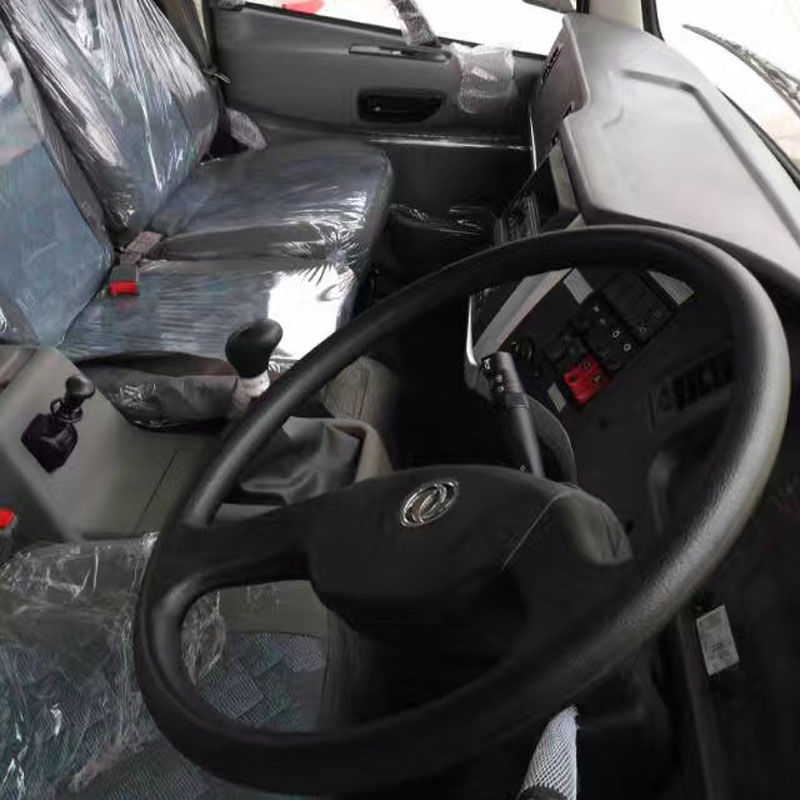

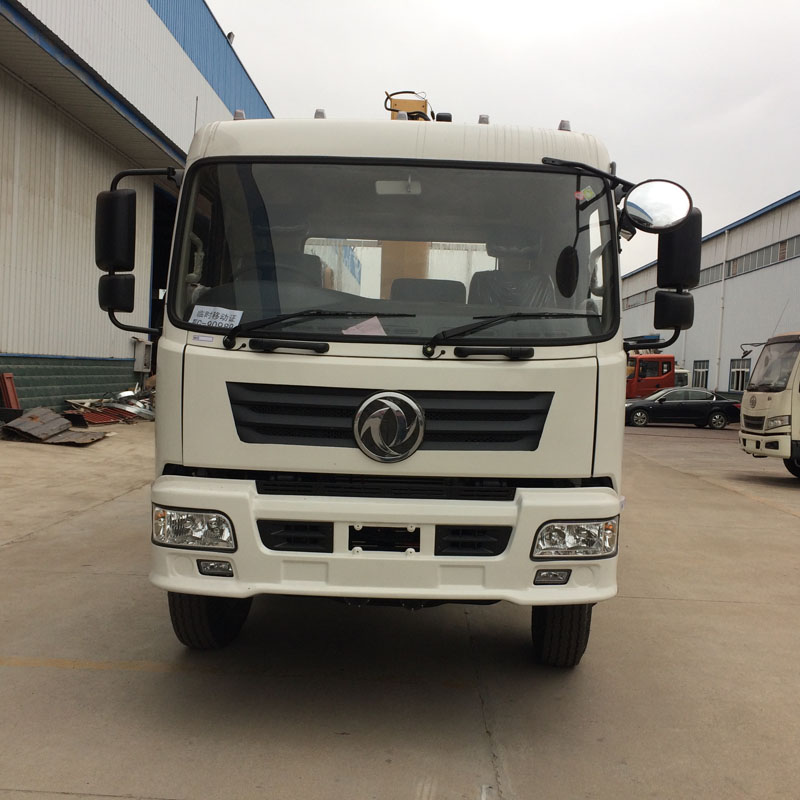

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

white,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00-20 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

9.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S750, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Right hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

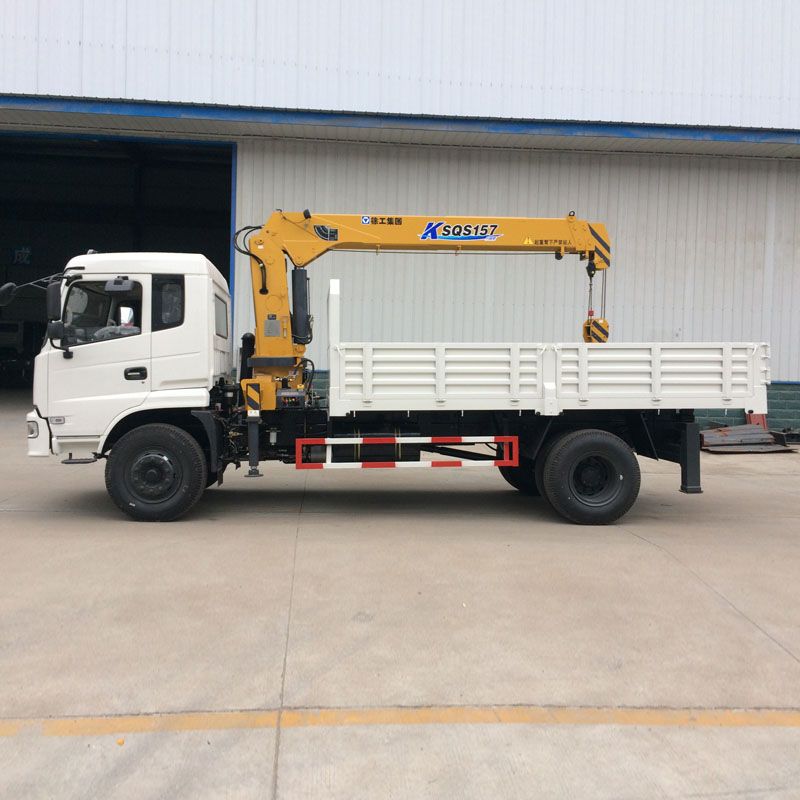

Truck mounted crane structure parameters

Van dimensions

5200X2300X500mm

Maximum loading of crane

6.3 tons

XCMG crane

Crane model

SQS157

Maximum lifting height

11m

Maximum working radius

9 m

Maximum loading

5 tons

Crane type

Straight arm

Telescopic arms number

3

Hydraulic, turning angle 360°

Color and Logo

Optional

Standard configuration

Chassis,sub frame,van body,XCMG straight arm truck crane equipped between the cabin and van body,mechanical leg.
