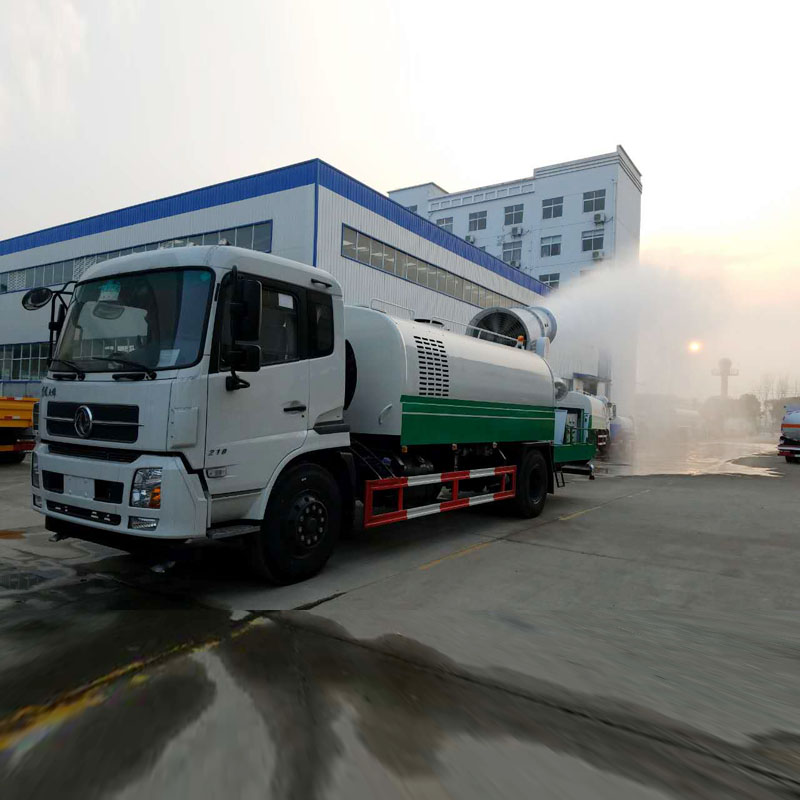

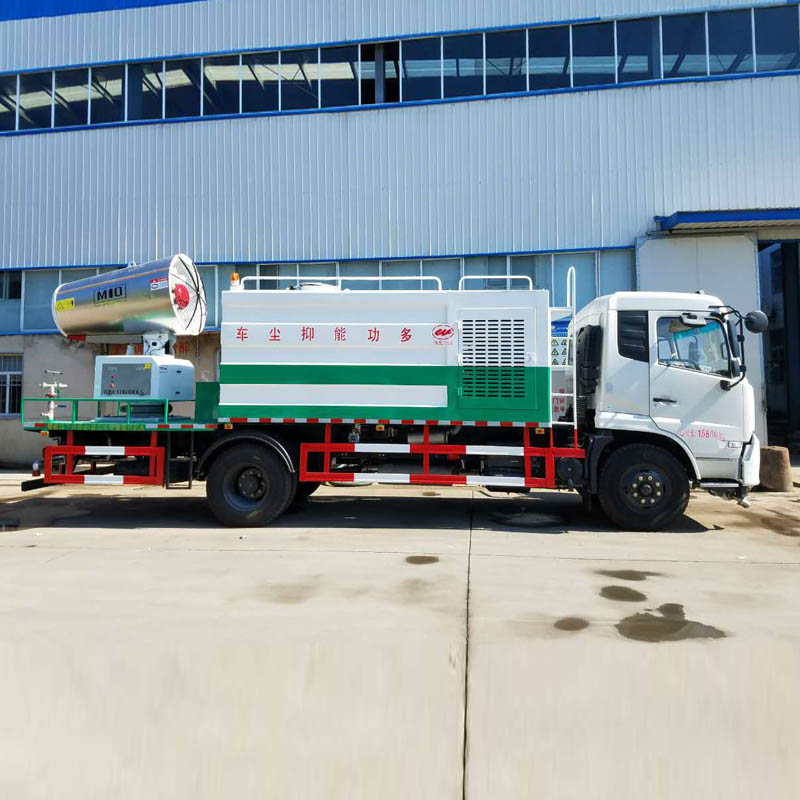

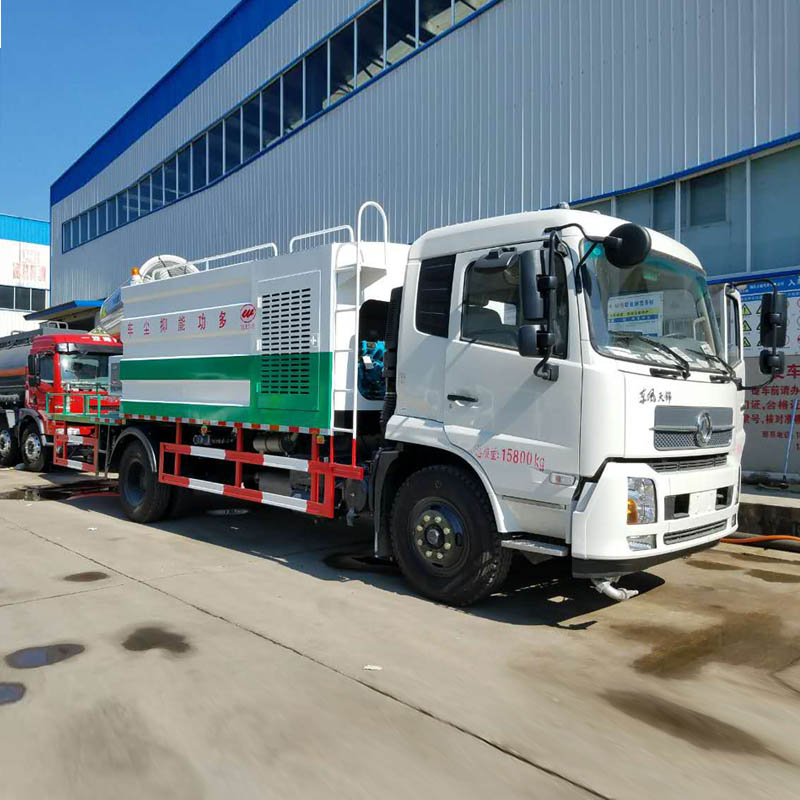

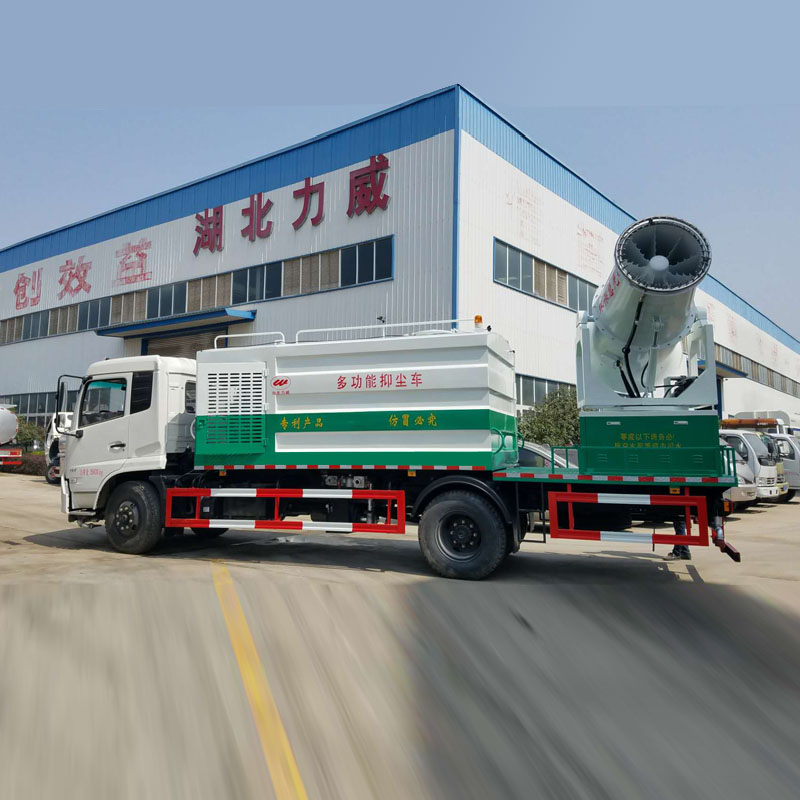

Product introduction:
Vehicle parameters |
|||
Vehicle Model |
HLW5126TDYE |
Vehicle Brand |
HLW |
Overall dimensions |
8990X2480X3950mm |
Curb weight |
9360kg |
Tank volume |
10000L |
|
|
Chassis parameters |
|||||
Chassis model |
EQ1126KJ1 |
Chassis brand |
DONGFENG |
||
Overall dimensions |
7955x2462x2690mm |
Wheel base |
4700mm |
||
Front/rear wheel track |
1900/1800mm |
Front/rear suspension |
1205/2050mm |
||
Approach/departure angle |
20/13° |
Maximum speed |
90km/h |
||
Chassis Manufacturer |
Dongfeng Motor Company |
||||
Cab |
Configuration |
A row and a half deluxe cab(with sleeping berth),allowable 3 passengers |
|||
Color |
white,other color is optional |
||||
Engine |
Model |
B190 33 |
|||
Emission |
Euro 3 |
||||
Type |
6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine |
||||
Rated power |
190hp,rated power speed 2500rpm |
||||
Displacement |
5900ml |
||||
Max.torque |
640N.m |
||||
Bore x stroke |
102x120mm |
||||
Manufacturer |
Dongfeng Cummins Engine Co., Ltd. |
||||
Tire |
Size |
9.00-20 nylon tire |
|||
Number |
6+1 nos |
||||
Frame |
(250×80×7)mm,parts are double layers. |
||||
Fuel tank |
160L,steel |
||||
Front axle |
3.6T |
||||
Rear axle |
9.0T |
||||
Drive form |
4X2 |
||||
Rated voltage |
24V,DC |
||||
Transmissions |
Gearbox DF6S750, 6 speed forward 1 reverse. |
||||
Steering device |
Power assisted steering |
||||
Steering wheel |
Left hand drive |
||||
Selective configuration |
Steel wire tire,air conditioner |
||||
If there is a slight change in the chassis parameters above,please take the actual product as the standard |
Upper structure parameters |
||||
Tank volume |
10000L |
Tank material |
5mm manganese steel |
|
Maximum range of spray machine |
120m |
Maximum spray height |
70m |
|
Spray machine |
30-120m optional |
Color and Logo |
Optional |
|
Standard configuration |
Chassis, sub frame, manganese steel water tank, PLC core control system, emergency stop button, fault indicator lamp,remote control, main air blower, spray machine. |
