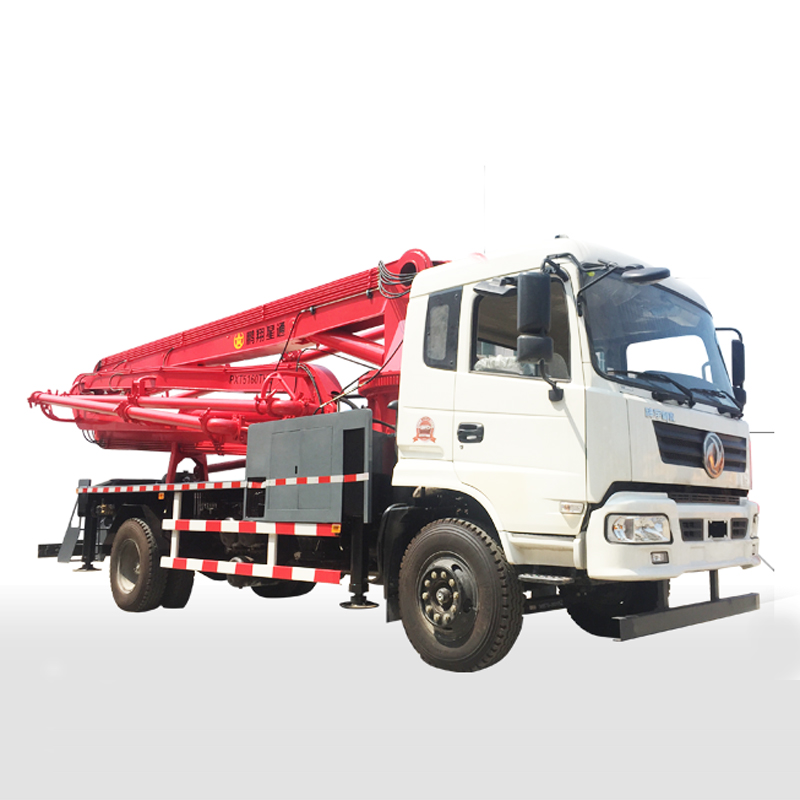

HLW5126THB concrete pump truck

  •  HLW5126THB concrete pump truck
HLW5126THB concrete pump truck

Product name: HLW5126THB concrete pump truck

Category: Concrete Pump Truck

Brand: Dongfeng

Lift height: 36m

Boom number: 5

Slewing angle: ±360°

Product introduction:



Model

Unit

Pump Unit

Max. Theor. output

m3/h

60/100

Max. Theor. concrete output Pressure

MPa

13.8/8

Rated working pressure

MPa

32

Pumping frequency

min-1

13/26

Hopper capacity

L

500

height of top surface of bucket

mm

1600

Recommended concrete slump

cm

14~23

Concrete delivery cylinder diameter

mm

230

Max. aggregate dimension

mm

40

model of dirstribution valve



S valve

Conveying cylinder bore

mm

125

Model

Unit

Boom Section

Boom number



5

Slewing angle

°

±360°

Lift height

m

36

The length/angle of first boom section

mm

8165/90

The length/angle of second boom section

mm

6560/180

The length/angle of third boom section

mm

6170/235

The length/angle of fourth boom section

mm

6190/180

The length/angle of fifth boom section

mm

3960/180

Hydraulic system pressure

MPa

32
