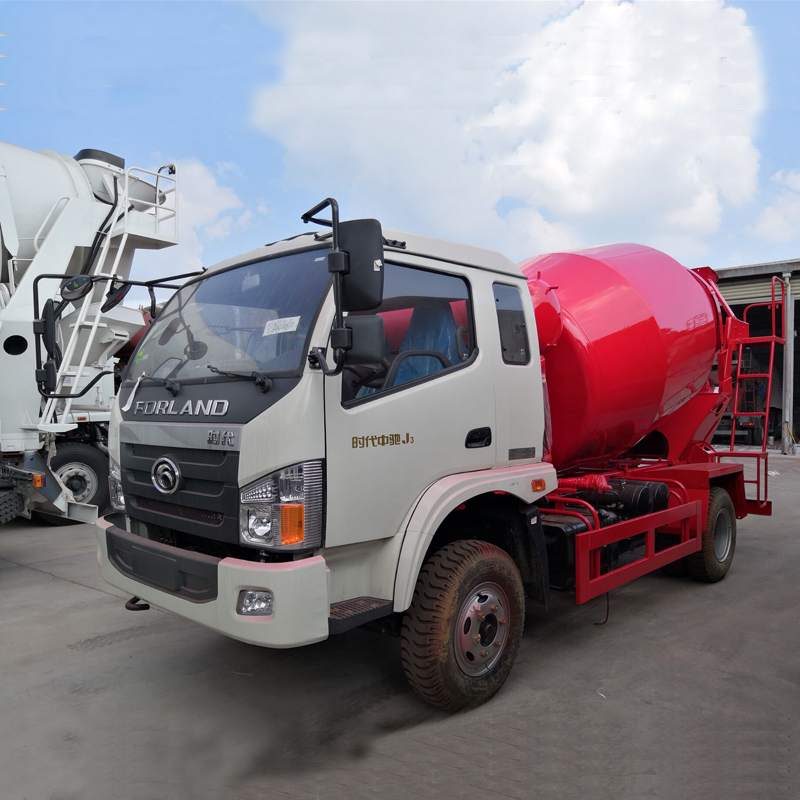

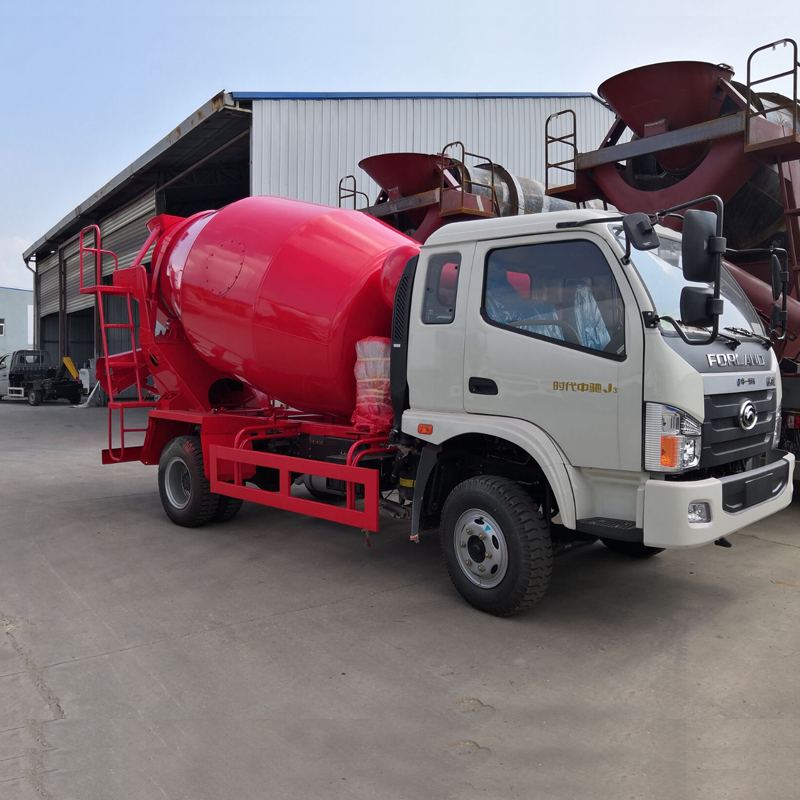

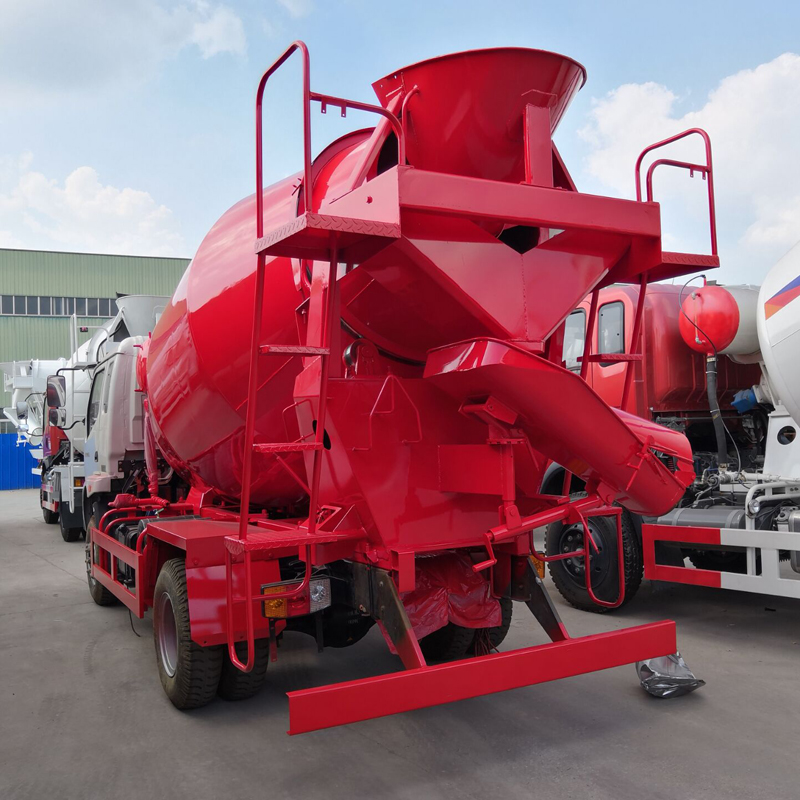

HLW5142GJBB1 5CBM concrete mixer truck

  •  HLW5142GJBB1 5CBM concrete mixer truck
HLW5142GJBB1 5CBM concrete mixer truck

Product name: HLW5142GJBB1 5CBM concrete mixer truck

Category: Concrete Mixer Truck

Volume: 5CBM

Reducer: KEYI

Hydraulic pump : Changyuan

Hydraulic motor: DALI

Product introduction:


Vehicle parameters

Vehicle Model

HLW5142GJBB1

Vehicle Brand

FOMON

Overall dimensions

6660X2480X3450mm

Curb weight

6060kg

Loading capacity

5m3







Chassis parameters

Chassis model

BJ5162GJB1

Chassis brand

FOTON

Overall dimensions

5730X2140X2450

Wheel base

3400mm

Front/rear wheel track

1710/1654mm

Front/rear suspension

1230/1100mm

Approach/departure angle

32/27°

Maximum speed

85km/h

Chassis Manufacturer

BEIQI FOTON MOTOR CO.,LTD

Cab

Configuration

S1860A a row and a half cab(with sleeping berth),allowable 3 passengers,all English signs in car body, English instruction ,international general accessories,double front windshield,power switch

Color

White,other color is optional

Engine

Model

YCD4F22-110

Emission

Euro 2

Type

4 cylinders,in-line,water-cooled, turbo inter-cooling,diesel engine

Rated power

110hp (81KW)

Displacement

3922ml

Max.torque

310N.m

Bore x stroke

102x120mm

Manufacturer

Guangxi Yuchai Machinery Group Co.,Ltd

Tire

Size

8.25-16 nylon tire

Number

6+1 nos

Clutch

φ320mm diaphragm spring clutch

Brake

Air brake

Fuel tank

120L

Rear axle

7 tons, 1092C rear axle

Drive form

4X2

Rated voltage

Camel brand,24V,DC

Transmissions

145HF, 5 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard



Concrete mixer truck structure parameters

Loading capacity

5m3

Tank material

5mm alloy steel

Tank front head

6mm alloy steel

Reducer

domestic

Hydraulic pump

domestic

Hydraulic motor

domestic

Radiator

KAIPENG

Color and Logo

Optional

Standard configuration

Chassis,sub frame,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 6mm alloy steel wear resistant material),domestic reducer,hydraulic pump,hydraulic motor,radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device.
