HLW5160DFS 6x6 military truck

Vehicle parameters

Vehicle Model

HLW5160DFS

Vehicle Brand

HLW

Overall dimensions

7625X2500X3180mm

Curb weight

7955kg

Van dimensions

4850X2300X800mm

Chassis parameters

Chassis model

DFS5160GLJ2

Chassis brand

DONGFENG

Overall dimensions

7700x2500x3100mm

Wheel base

3500+1250mm

Front/rear wheel track

1916/1876/1876mm

Front/rear suspension

1250/1700mm

Approach/departure angle

38/36°

Maximum speed

95km/h

Chassis Manufacturer

Dongfeng Motor Company

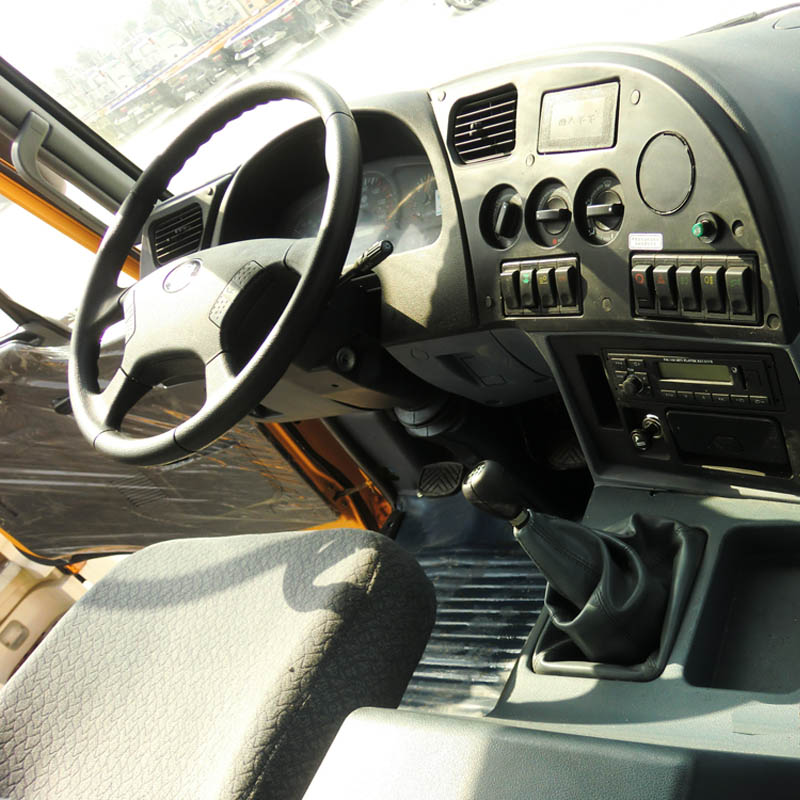

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Army green,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

12.5R20 military tubeless tire

Number

6+1 nos

Front axle

3.5T

Rear axle

4.0T

Drive form

6X6

Rated voltage

24V,DC

Transmissions

6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard
