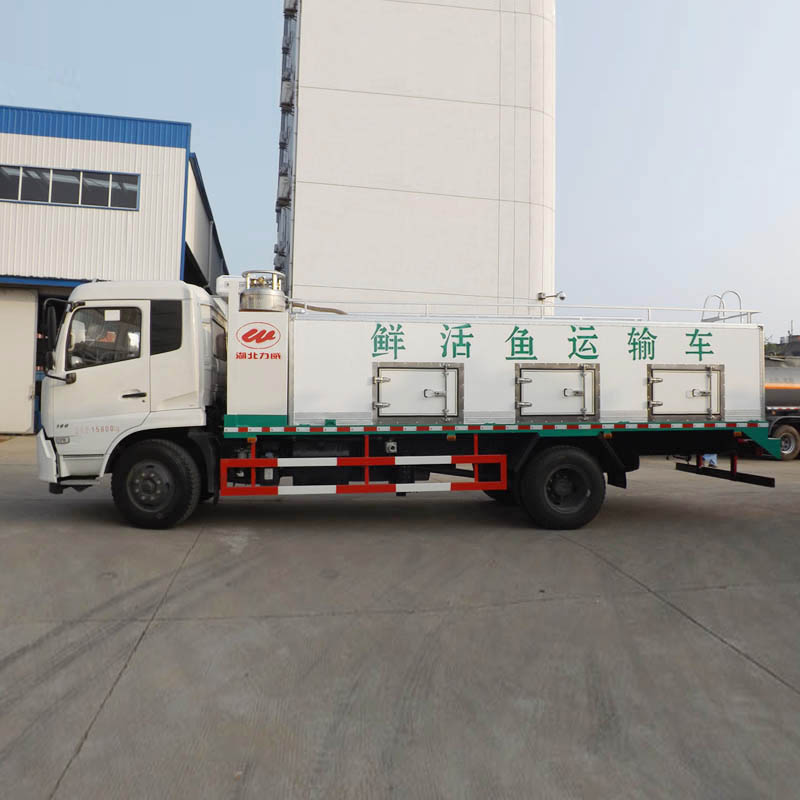

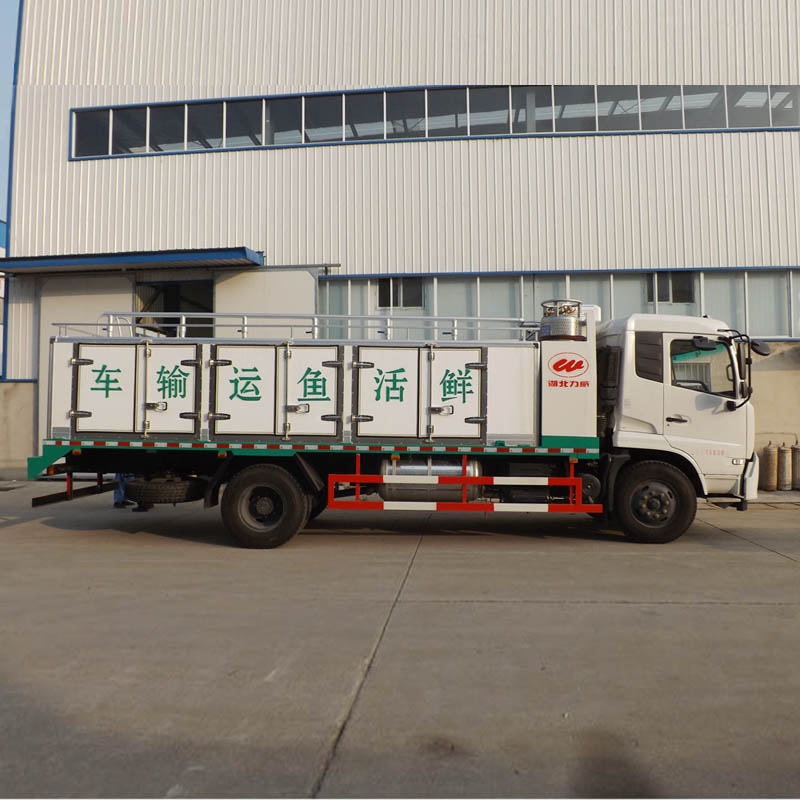

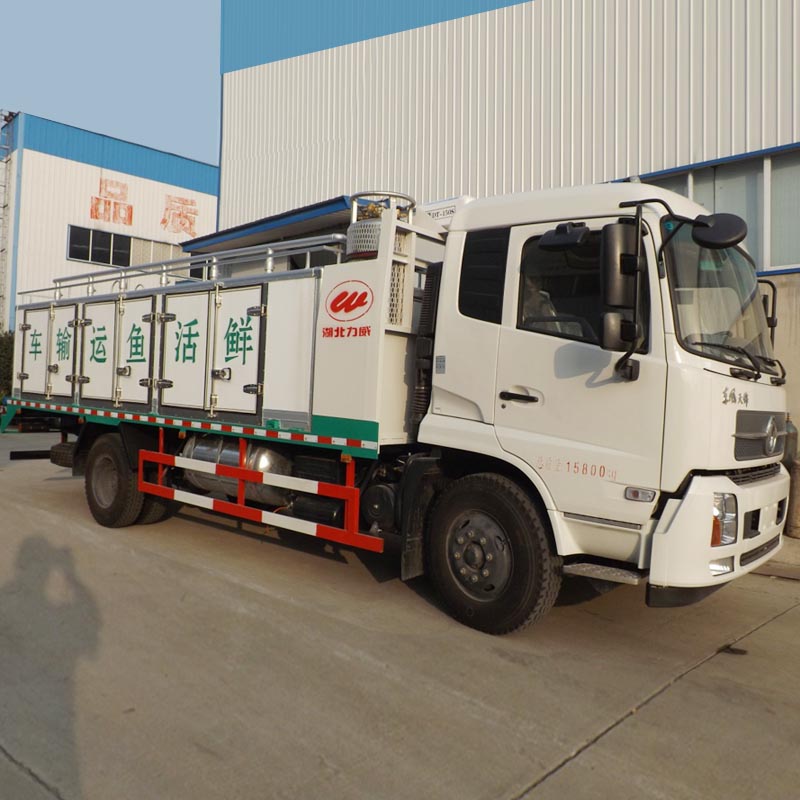

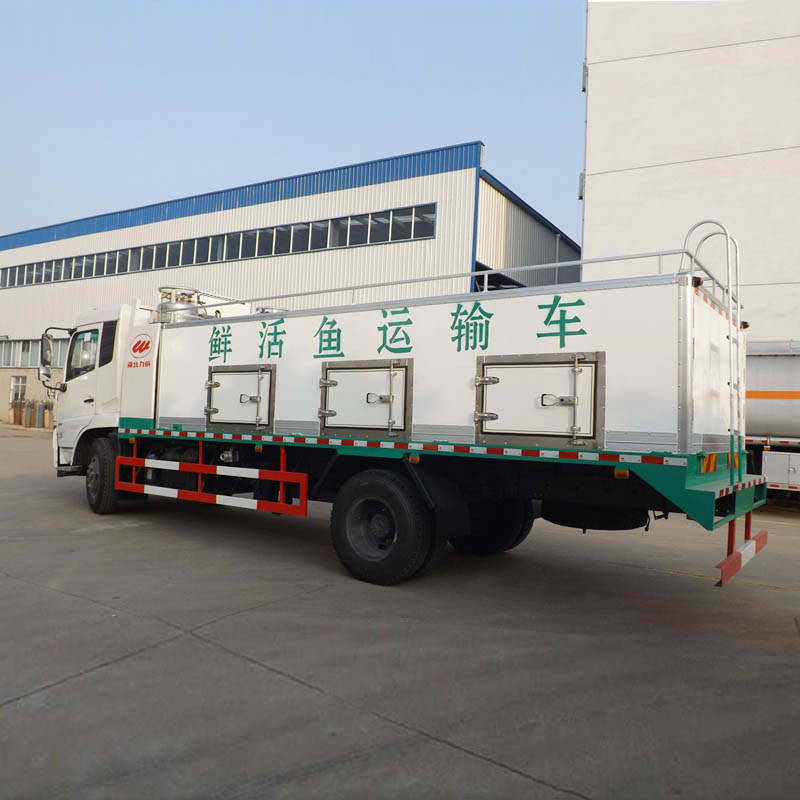

HLW5160TSCE live fish transport truck

Vehicle parameters

Vehicle Model

HLW5160TSCE

Vehicle Brand

HLW

Overall dimensions

9150X2500X3180mm

Curb weight

9360kg

Tank volume

10000L

Fish loading

5000kg

Chassis parameters

Chassis model

EQ1160BX

Chassis brand

DONGFENG

Overall dimensions

8290x2460x2760mm

Wheel base

4700mm

Front/rear wheel track

1940/1860mm

Front/rear suspension

1430/2160mm

Approach/departure angle

20/13°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

white,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

10.00-20 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

5.0T

Rear axle

10.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S750, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Live fish transport truck structure parameters

NO.

Item

Description

1

External incubator

Dimensions(5800X2450X1300mm), thickness≥6mm

2

Water tanker

Volume(10000L), material(4.3mm aluminum alloy), compartments(4-6)

3

Purification system

Water recycling & filtration system

4

Refrigeration system

Refrigeration unit(Keep the water temperature between 10 and 18 degrees,one unit)

5

Oxygen system

Liquid oxygen tank(210L, two units, oxygen supply can be adjusted in the cab)

6

Lifting system

2 tons crane with 24V winch(loading fish or unloading fish, one unit)

7

Water pump

65QZ40-50N

8

Suction pipe

¢80×3000mm, two pieces

9

LED lighting lamp

Suitable for night work,one set

10

Digital thermometer

Installed in the cab
