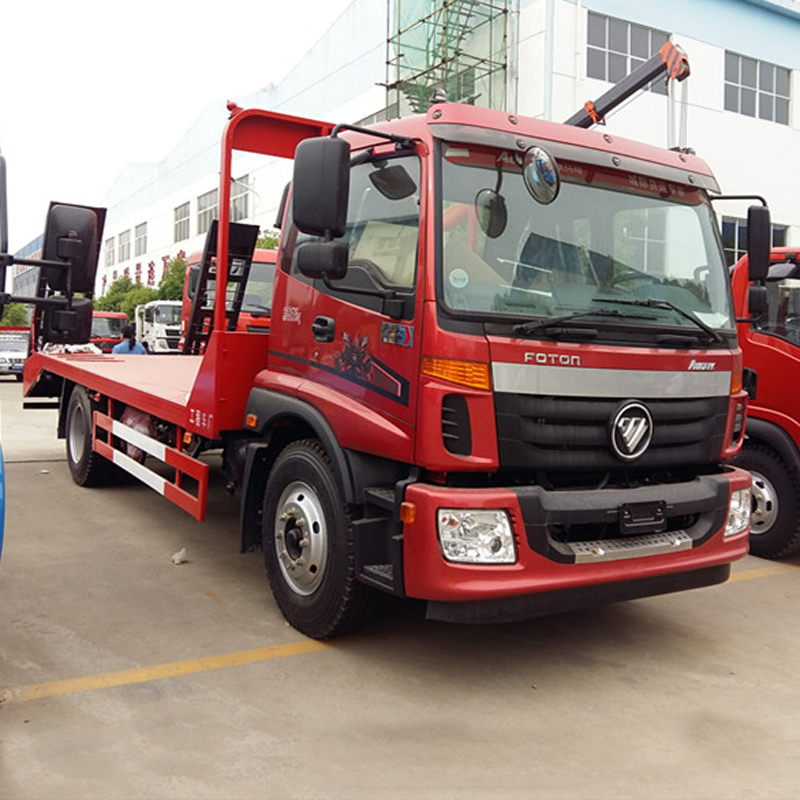

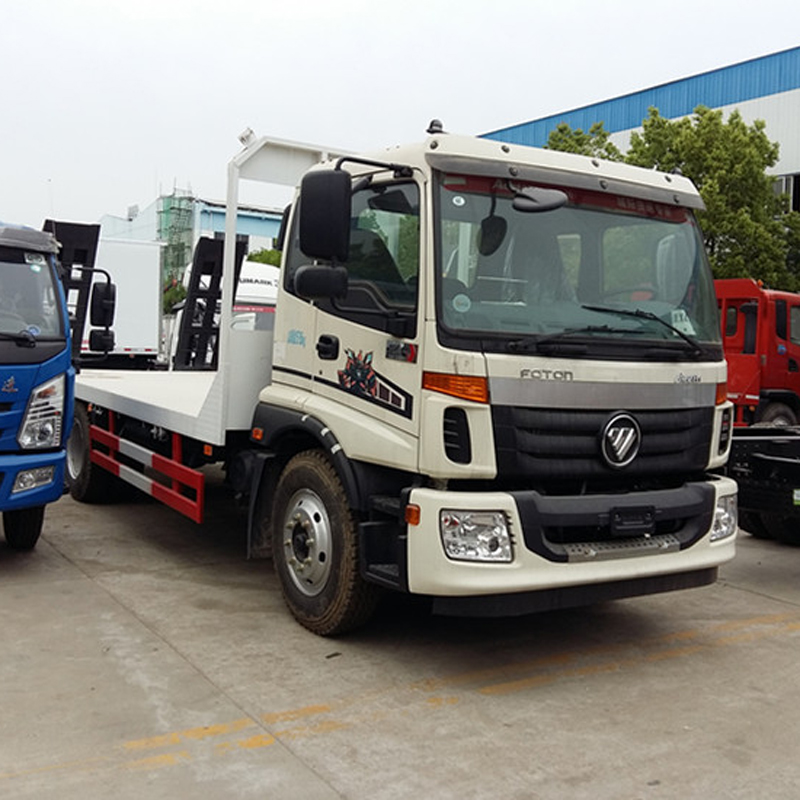

HLW5163TPBLB platform truck

Vehicle parameters                                                                            www.hltq.com

Vehicle Model

HLW5163TPBLB

Vehicle Brand

FOMON

Overall dimensions

9000X2500X2850mm

Curb weight

7405kg

Platform dimensions

5500X2500X550mm

Loading capacity

12000kg

Chassis parameters                                                                           www.hltq.com

Chassis model

BJ1163VKPGG-1

Chassis brand

FOTON

Overall dimensions

8805x2364x2760mm

Wheel base

5000mm

Front/rear wheel track

1900/1800mm

Front/rear suspension

1365/2440mm

Approach/departure angle

20/10°

Maximum speed

90km/h

Chassis Manufacturer

Beijing Foton Daimler Motor Co., Ltd.

Cab

Configuration

A row and a half cab(with sleeping berth),allowable 3 passengers, ETX2200 flat top,air conditioner

Color

Red,other color is optional

Engine

Model

Phaser160Ti-33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, direct injection, dry cylinder liner,diesel engine,

Rated power

160hp,rated power speed 2500rpm

Displacement

5990ml

Max.torque

560N.m

Bore x stroke

100x127mm

Manufacturer

Tianjin Lovol Engine Co., Ltd

Tire

Size

9.00R20 steel wire tire

Number

6+1 nos

Fuel tank

200L aluminum alloy

Rear axle

8.0 tons

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Datong 6 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Engine 190hp,8 speed forward 1 reverse, rear axle 9.0 tons

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Platform structure parameters                                                                 www.hltq.com

Platform dimensions

5500X2500X550mm

Loading capacity

12000kg

Thickness of pattern plate

5mm

Square steel tube

100x100mm

Square tube spacing

350mm

Channel steel frame

12#

The cargo fence

Can be removable

Color and Logo

Optional

Standard configuration

Chassis,sub frame,pattern plate, two double spring climbing ladders,square steel tube, square tube spacing 350mm, 12# channel steel frame.

Selective configuration

Hydraulic lifting cylinder for unloading, crane,5/6/8mm pattern plate
