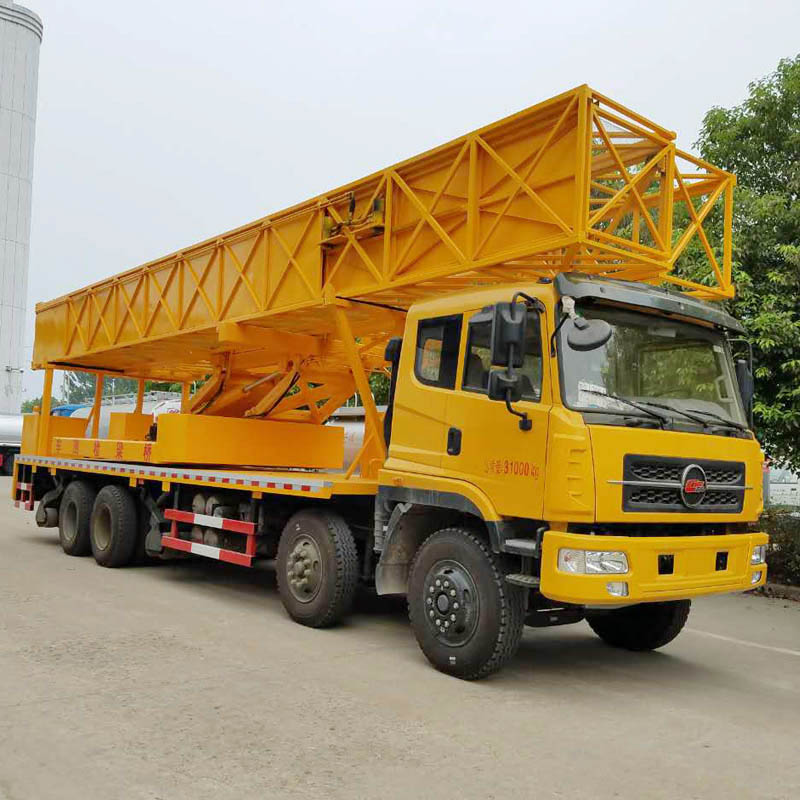

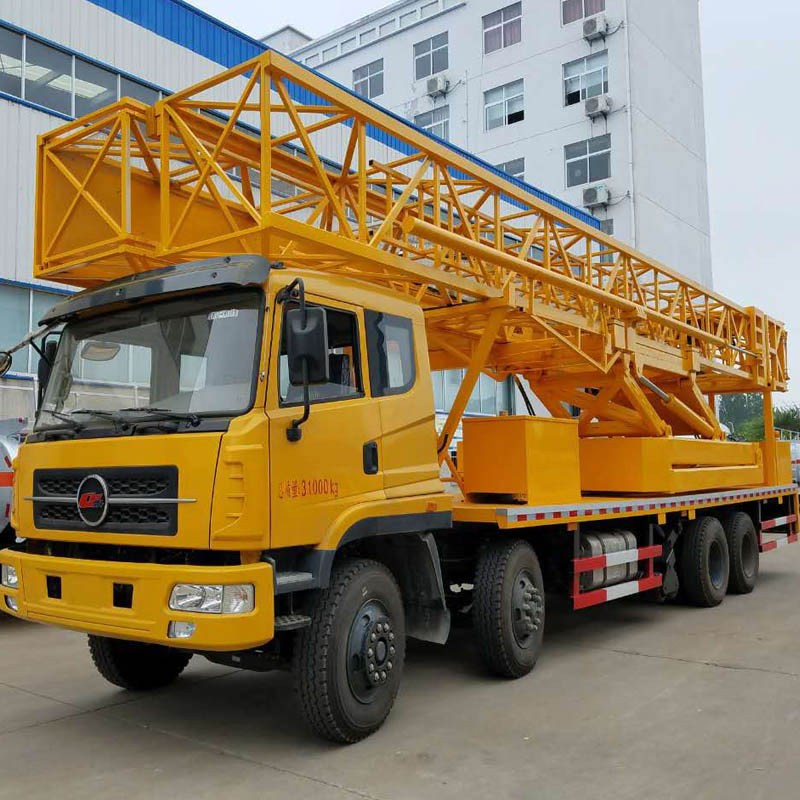

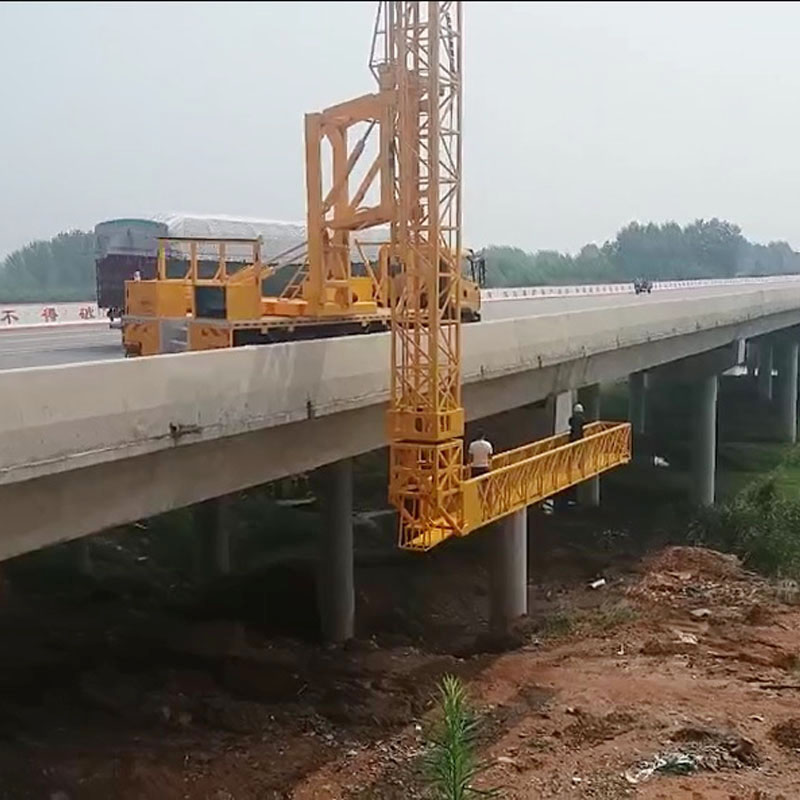

HLW5310JQJ5HQ bridge inspection truck

Vehicle parameters

Vehicle Model

HLW5310JQJ5HQ

Vehicle Brand

HLW

Overall dimensions

12150X2500X3990mm

Curb weight

30805kg

Chassis parameters

Chassis model

HQG1310GD5

Chassis brand

Chufeng

Overall dimensions

11800x2480x2880mm

Wheel base

1950+4500+1350mm

Front/rear wheel track

1950/1950/1860/1860mm

Front/rear suspension

1250/2500mm

Approach/departure angle

18/14°

Maximum speed

90km/h

Chassis Manufacturer

Hubei Xinchufeng Automobile Co., Ltd

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Yellow,other color is optional

Engine

Model

YC6L310-50

Emission

Euro 5

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

310hp,rated power speed 2200rpm

Displacement

8424ml

Max.torque

1150N.m

Bore x stroke

113x140mm

Manufacturer

Yuchai Machinery Co., Ltd

Tire

Size

11.00R20 18PR steel tire wire

Number

12+1 nos

Frame

300(8+8)mm

Fuel tank

400L,steel

Front axle

5.0T

Rear axle

10.0T

Drive form

8X4

Rated voltage

24V,DC

Transmissions

Gearbox 10JSD140A, 10 speed forward 2 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Bridge inspection truck structure parameters

Maximum horizontal operating radius under bridge

22m

Maximum working depth under bridge

9.0m

Maximum width across sidewalk

3.5m

Maximum height across guardrail

5.4m

Maximum load capacity of platform

800kgs

Maximum load capacity at the end of platform

400kgs
