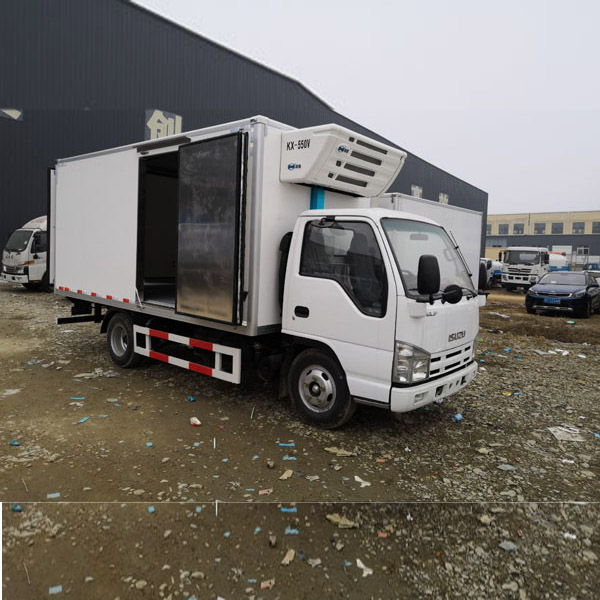

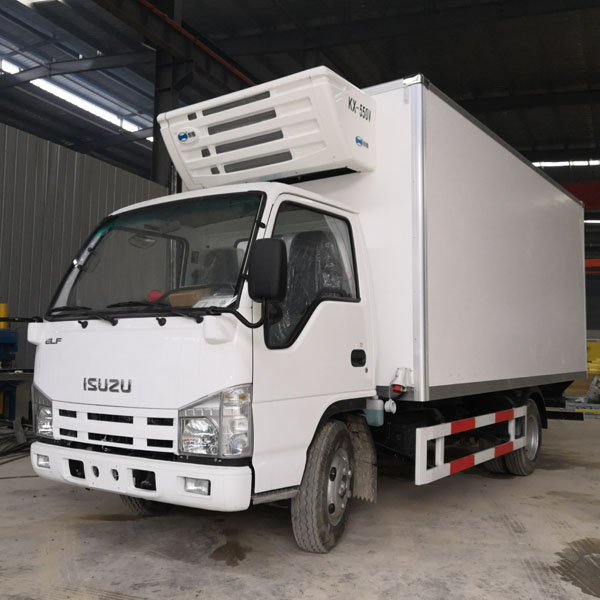

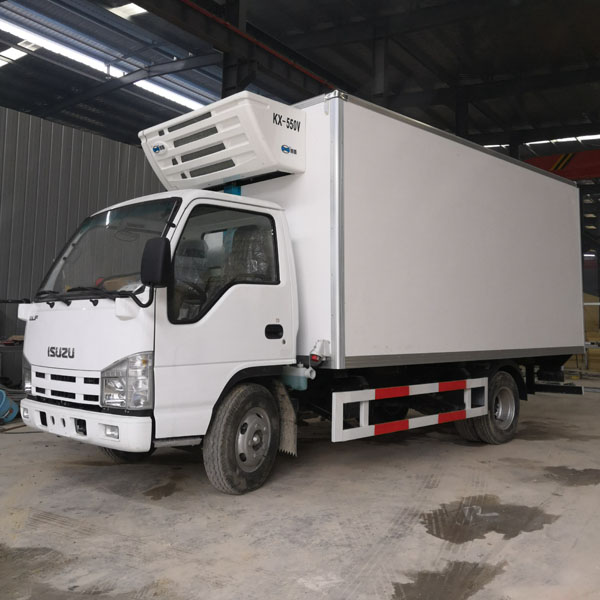

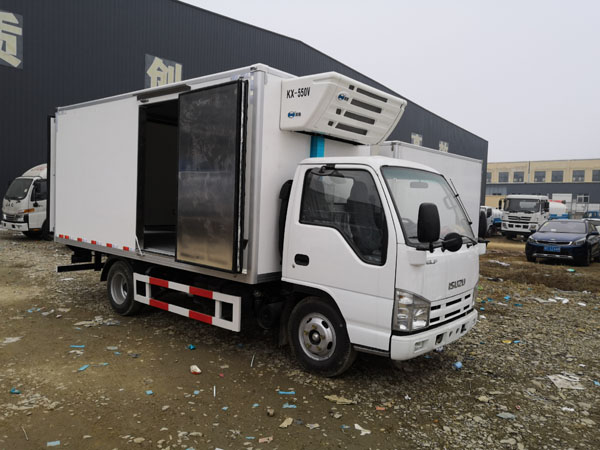

HLW50503XLCQ refrigerator truck

  •  HLW50503XLCQ refrigerator truck
  •  HLW50503XLCQ refrigerator truck
  •  HLW50503XLCQ refrigerator truck
  •  HLW50503XLCQ refrigerator truck
  •  HLW50503XLCQ refrigerator truck
HLW50503XLCQ refrigerator truck  HLW50503XLCQ refrigerator truck  HLW50503XLCQ refrigerator truck  HLW50503XLCQ refrigerator truck  HLW50503XLCQ refrigerator truck

Product name: HLW50503XLCQ refrigerator truck

Category: Refrigerator Truck

Brand ISUZU

ENGINE POWER 98HP

Loading capacity 5000KG

Van volume 16 cbm

Product introduction:

Vehicle Model

HLW50503XLCQ

Vehicle Brand

FOMON

Overall dimensions

6300X2100X3000mm

Curb weight

3850kg

Van dimensions

4300X2000X2100mm

Loading capacity

16M3



Chassis parameters

Chassis model

QL10503HARY

Chassis brand

ISUZU

Overall dimensions

5900X1860X2180mm

Wheel base

3360mm

Front/rear wheel track

1504/1425mm

Front/rear suspension

1015/1525mm

Approach/departure angle

24/16°

Maximum speed

105km/h

Chassis Manufacturer

ISUZU QingLing Motors (Group) Co., Ltd.

Cab

Configuration

100P,single row cab,allowable 3 passengers, air conditioner, USB radio interface.

Color

White,other color is optional

Engine

Model

4JB1CN

Emission

Euro 4

Type

4 cylinders, in-line4-stroke,water-cooled,turbo inter-cooling,4-valve, diesel engine

Rated power

98hp,rated power speed 3400rpm

Displacement

2771ml

Max.Torque

220N.m

Bore&Stroke

93X102mm

Manufacturer

Isuzu (chongqing) engine Co., Ltd.

Tire

Size

7.00-16 nylon tire

Number

6+1 nos

Frame

172X65(4+3)mm

Front axle

2 tons

Rear axle

3 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

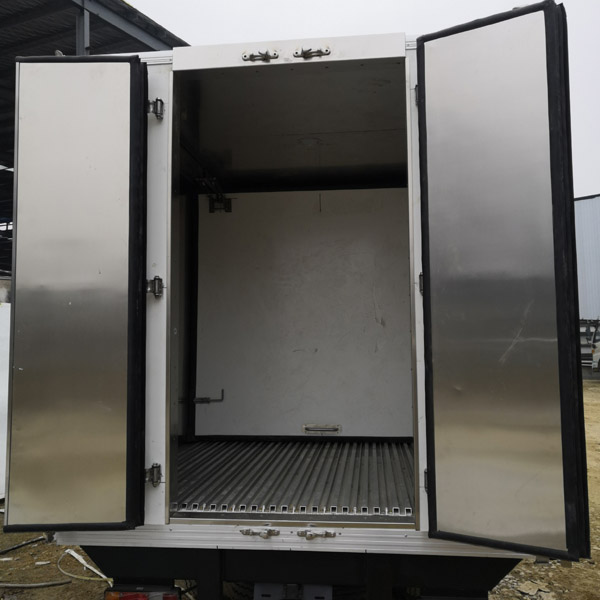

Van body structure parameters

Outer Van dimensions

4300X2000X2100mm

Inter van dimensions

4100x1800x1900mm

Van material(inner)

Glass steel

Van material(outer)

Glass steel

Insulation layer

Polyurethane foam

Thickness of insulation layer

10cm

Refrigerator unit brand

KAIXUE

Temperature

-18

Color and Logo

Optional



Standard configuration

Chassis,sub frame,van body(inner and outer glass steel,10 cm polyurethane foam insulation),-18refrigerator unit ,stainless steel locks,stainless steel door frame,with overhead light and anti collision device,refrigeration unit, one side door.Bulkhead with moving.Ventilation slot.Rear door as customers size.
