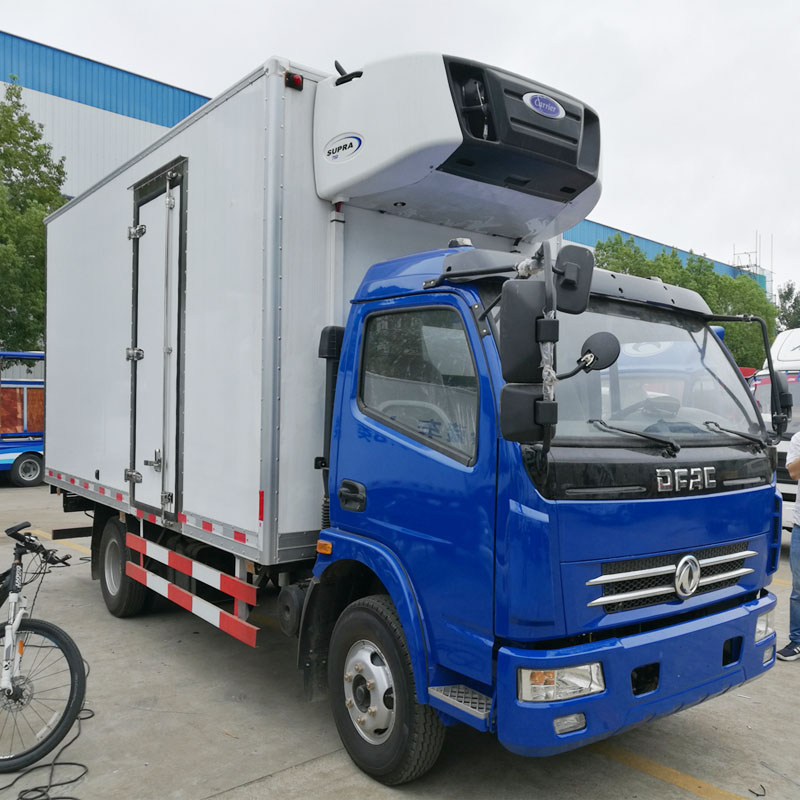

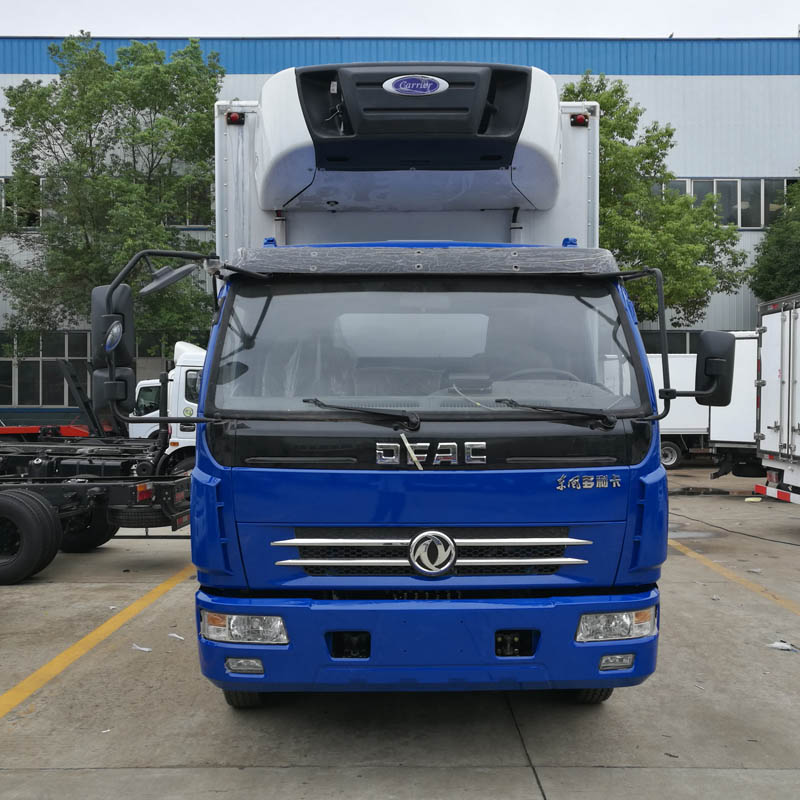

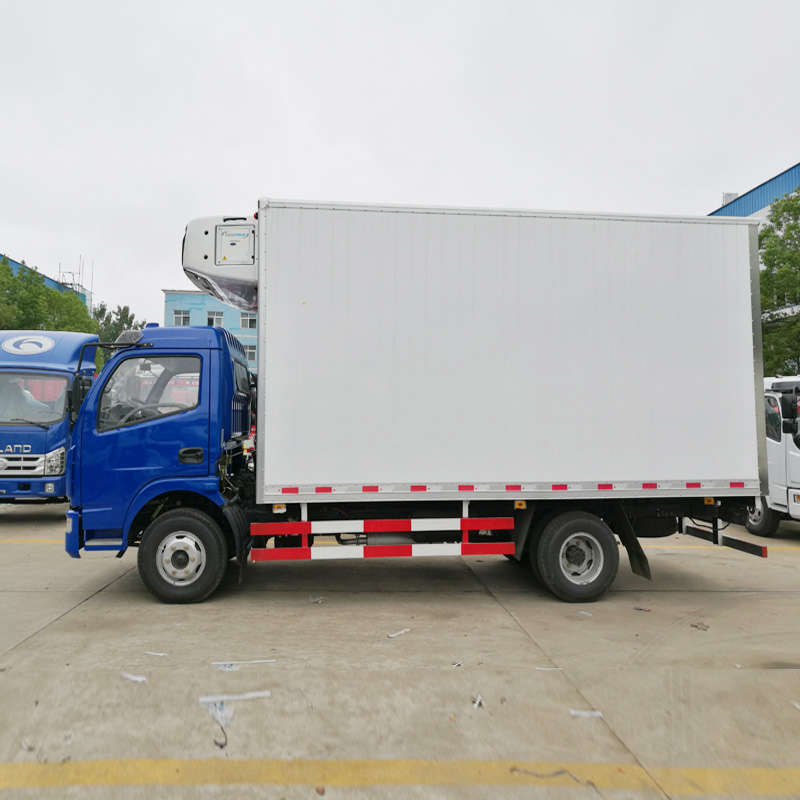

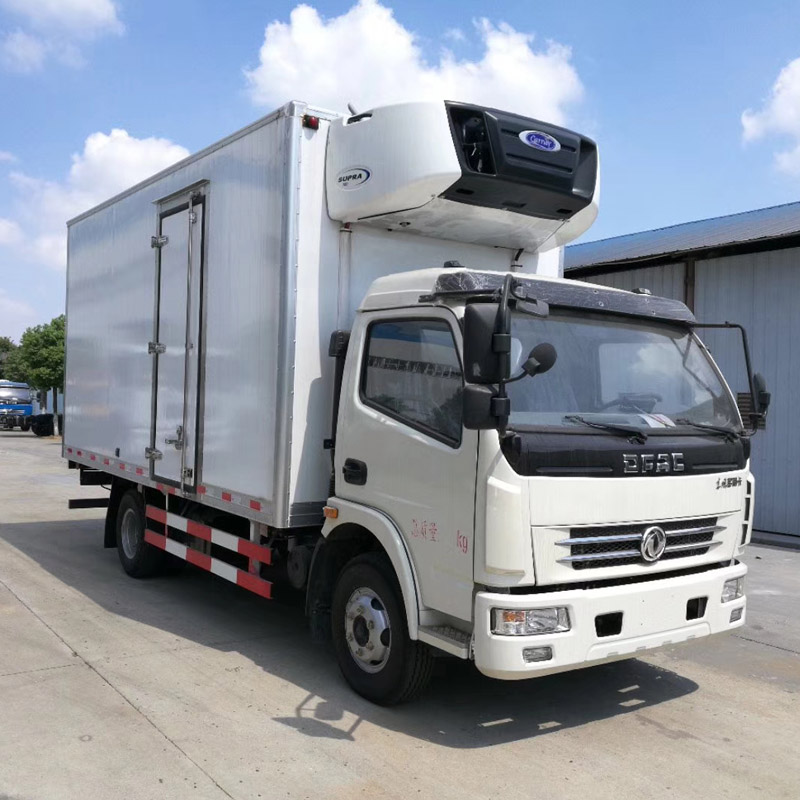

HLW5090XLCE refrigerator truck

Vehicle parameters

Vehicle Model

HLW5090XLCE

Vehicle Brand

HLW

Overall dimensions

7000X2200x3400mm

Curb weight

3850kg

Van dimensions

5000X2100X2200mm

Loading capacity

8000kg

Chassis parameters

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab, air conditioner, allowable 3 passengers, cab can be flipped

Color

Blue

Engine

Model

YC4E140-33

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Rated power

140hp,rated power speed 2800rpm

Displacement

4214ml

Bore x stroke

108x115mm

Manufacturer

Guangxi Yuchai Machinery Co.,ltd

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Frame

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

3T

Rear axle

5.5T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above, please take the actual product as the standard

Van body structure parameters

Van dimensions

5000X2100X2200mm

Loading capacity

8000kg

Van material(inner)

Glass steel

Van material(outer)

Glass steel

Insulation layer

Polyurethane foam

Thickness of insulation layer

10cm

Standard configuration

Chassis, sub frame, van body(inner and outer glass steel,10cm polyurethane foam insulation),stainless steel locks ,stainless steel door frame, heat preservation rolling door, with red light on the body ，one side swing door and anti collision device. Blue painting for whole truck。4mm steel plate. Divider panel in the body。re-inforcement for refrigeration unit on front panels
