Product name: HLW5090TSLE road sweeper

Category: Road Sweeper

Brand Dongfeng

Dust tank volume 5000L

Water tank volume 2500L

Wheel base 3800L

Product introduction:

Vehicle parameters

Vehicle Model

HLW5090TSLE

Vehicle Brand

DONGFENG

Overall dimensions

7200X2290X2550mm

Curb weight

6005kg

Dust tank volume

5000L

Water tank volume

2500L



Chassis parameters

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

Blue,other color is optional

Engine

Model

YC4E140-33

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

140hp,rated power speed 2800rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Yuchai Diesel Power Co. Ltd.

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

3T

Rear axle

5.5T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive



Upper structure parameters

Dust tank volume

5000L

Water tank volume

2500L

Sweep width

3000mm

Cleaning speed

3-20km/h

Cleaning ability

9000-60000 m2/h

Cleaning efficiency

98%

Maximum suction particle

120mm

Min. clearance of suction nozzle

200mm

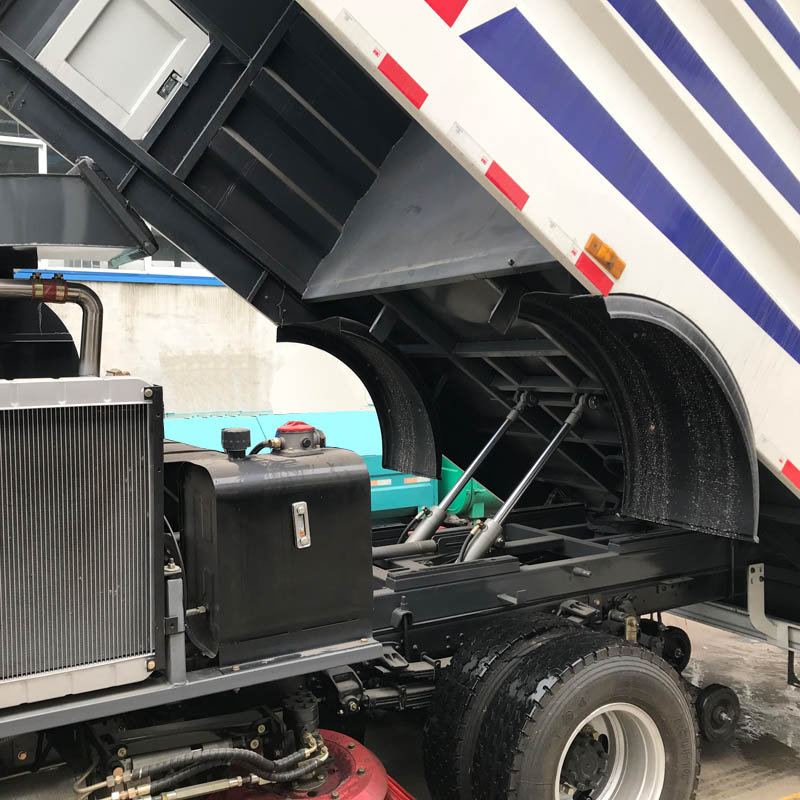

Unloading angle

45°

Unloading height

970mm





Color and Logo

Optional

Standard configuration

Chassis, sub frame,body,4 sweeping brushes, stainless steel vacuum tank, stainless water tank, stainless steel body, 5T centrifugal fan, auxiliary engine Isuzu engine 57KW, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system,hydraulic motor, disconnect-type clutch,electronic water pump, rear LED arrow lamp.
