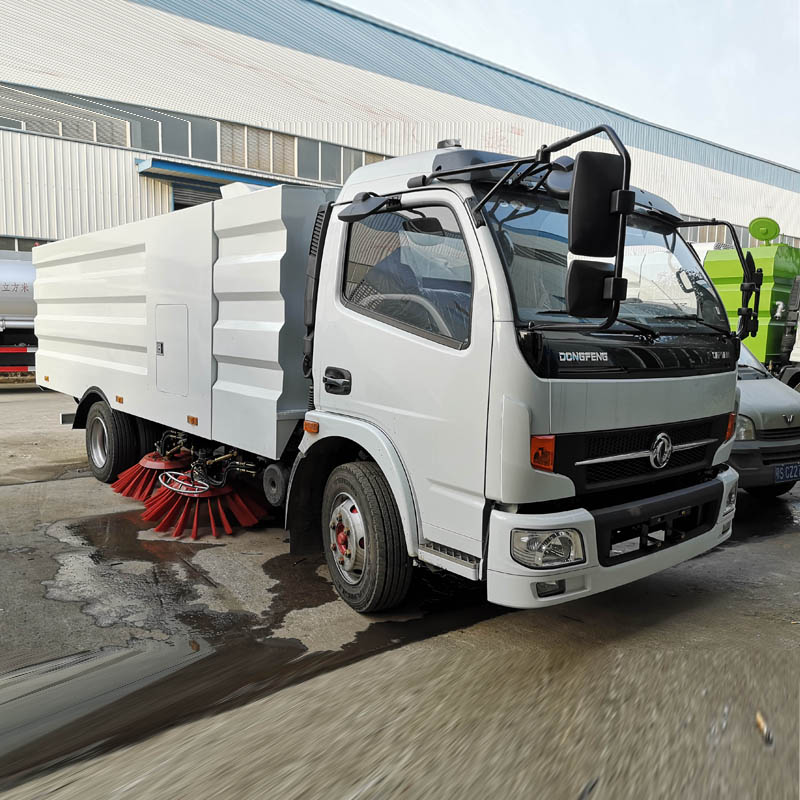

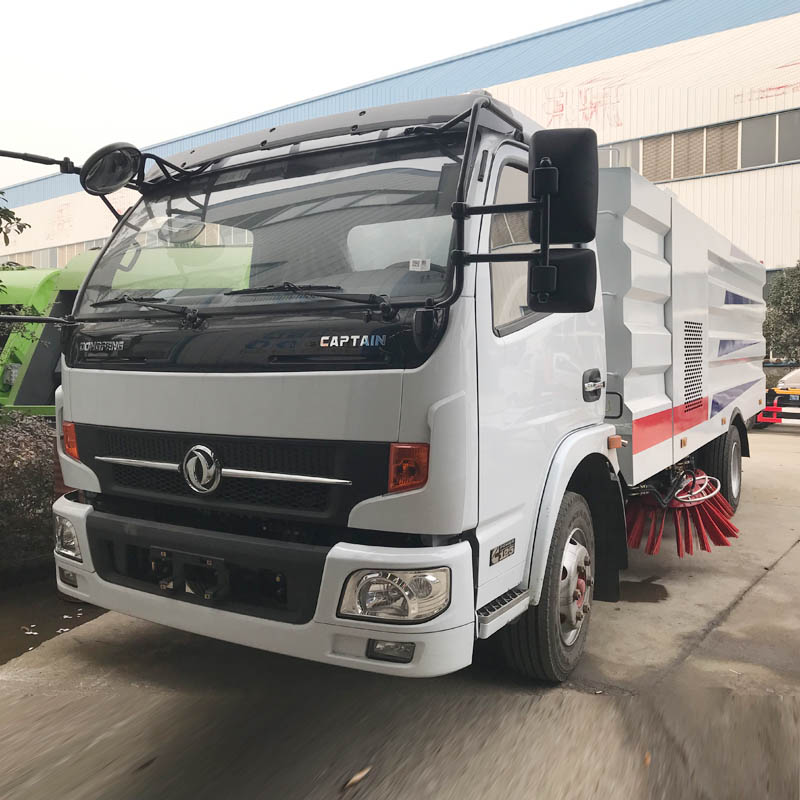

HLW5090TSLEC road sweeper

Vehicle parameters

Vehicle Model

HLW5090TSLEC

Vehicle Brand

HLW

Overall dimensions

7200X2290X2550mm

Curb weight

6005kg

Dust tank volume

5000L

Water tank volume

2500L

Chassis parameters

Chassis model

C16-771

Chassis brand

DONGFENG CAPTAIN

Overall dimensions

6740x2100x2390mm

Wheel base

3800mm

Front/rear wheel track

1750/1620mm

Front/rear suspension

1130/1810mm

Approach/departure angle

21/14.5°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

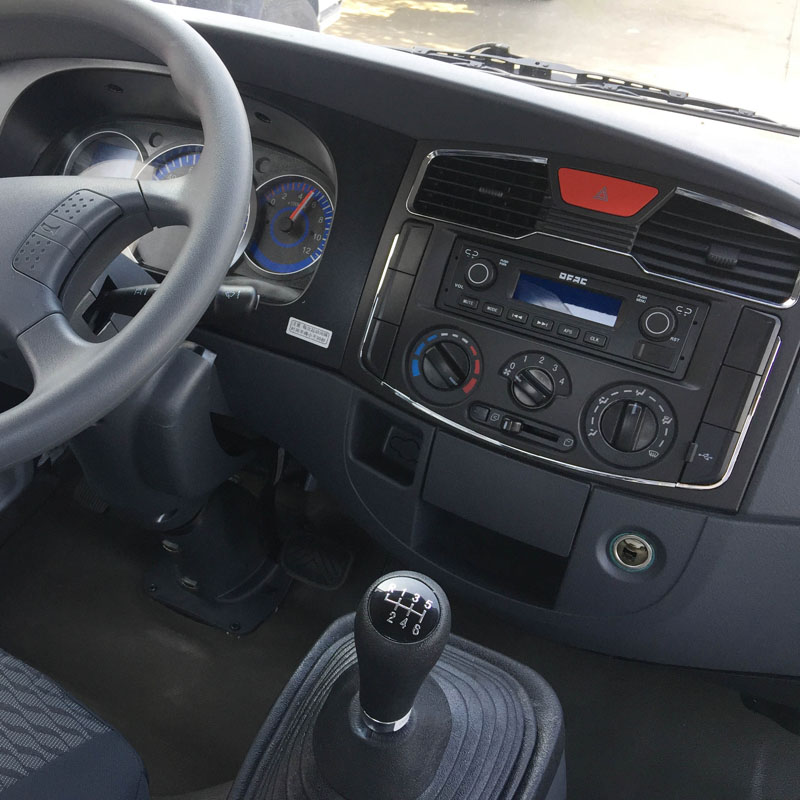

Cab

Configuration

Single row cab, allowable 3 passengers, cab can be flipped

Color

White, other color is optional

Engine

Model

EQB125-20

Emission

Euro 2

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

125hp

Displacement

5900ml

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins engine Co. Ltd.

Tire

Size

9.5R17.5 tubeless tire

Number

6+1 nos

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

125L,steel

Front axle

DANA 2.7T

Rear axle

DANA 5.5T

Drive form

4X2

Battery

2X90Ah,DC

Transmissions

FAST 6DS60T-D, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner

If there is a slight change in the chassis parameters above, please take the actual product as the standard

Upper structure parameters

Dust tank volume

5000L

Water tank volume

2500L

Sweep width

3000mm

Cleaning speed

3-20km/h

Cleaning ability

9000-60000 m2/h

Cleaning efficiency

98%

Maximum suction particle

120mm

Min. clearance of suction nozzle

200mm

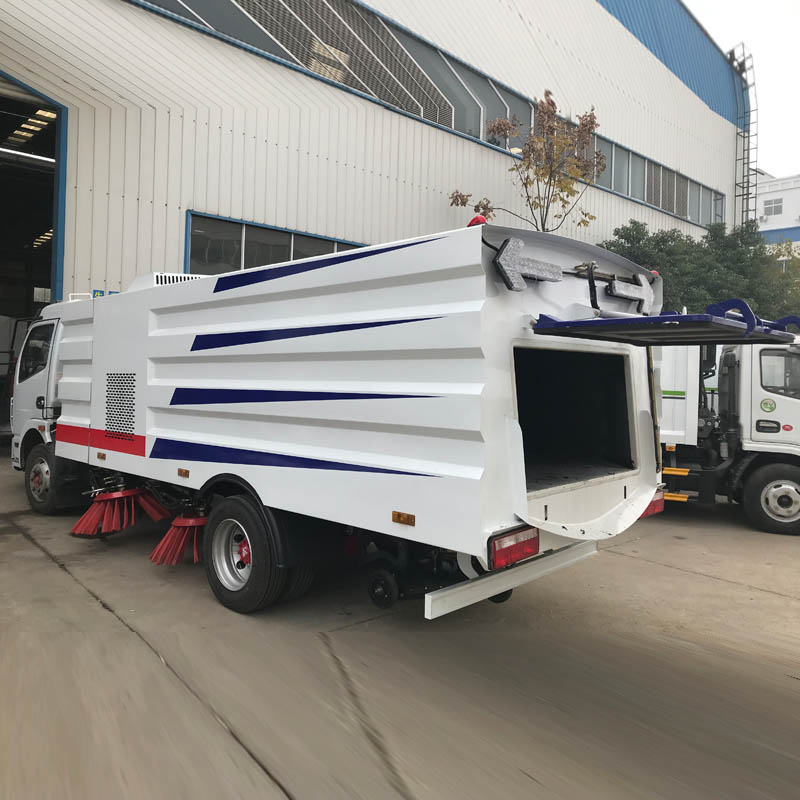

Unloading angle

45°

Unloading height

970mm

Color and Logo

Optional

Standard configuration

Chassis, sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank, stainless steel body, 5T centrifugal fan, auxiliary engine Isuzu engine 57KW, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system,hydraulic motor, disconnect-type clutch,electronic water pump, rear LED arrow lamp.
