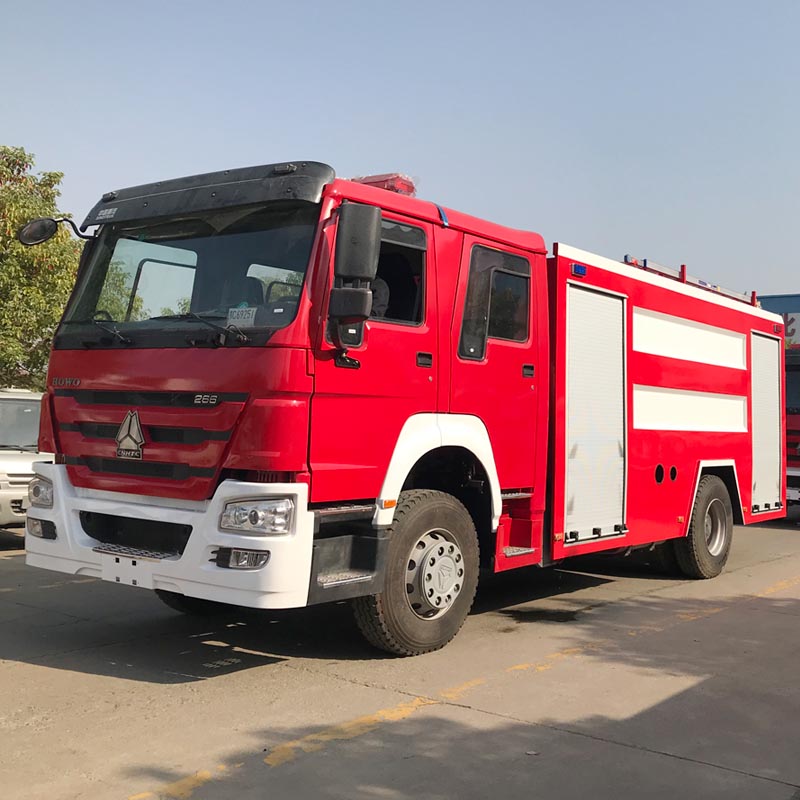

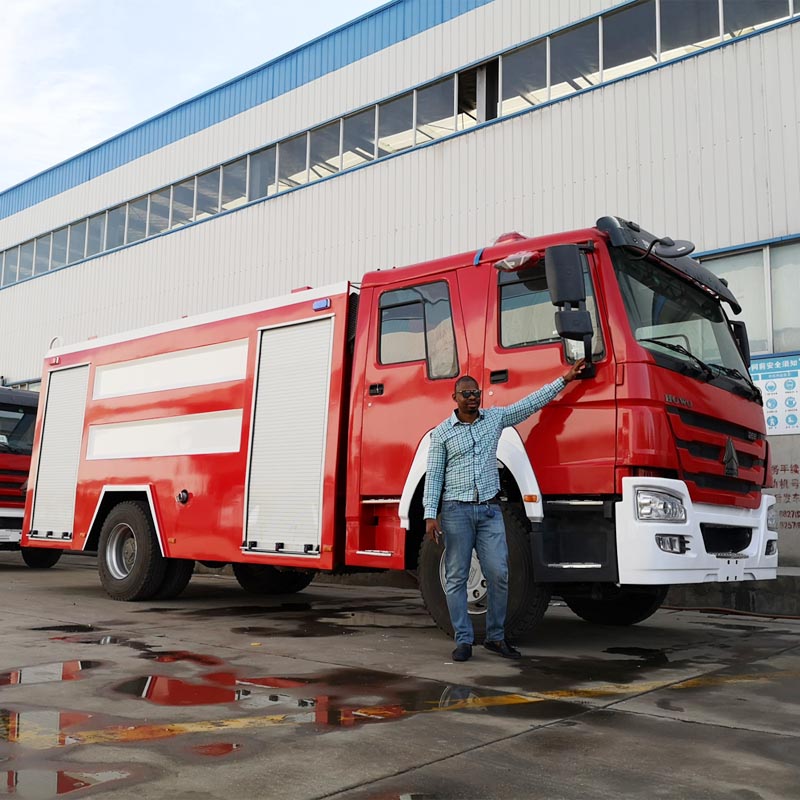

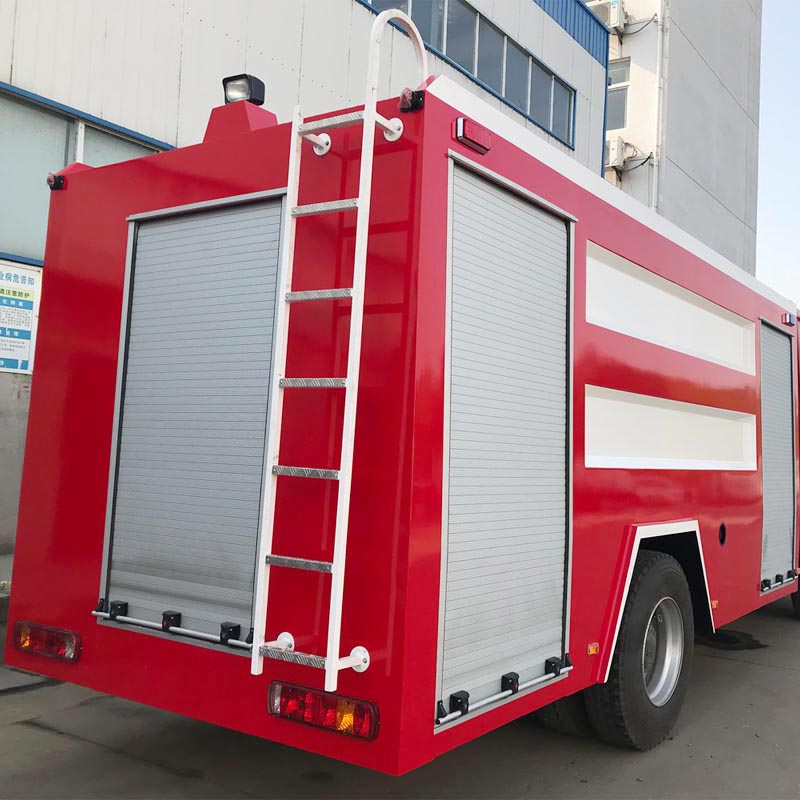

HLW5167GXFSGZ fire truck

Product name: HLW5167GXFSGZ fire truck

Category: Fire Truck

Brand HOWO

Water tanker 10000L

Engine 266hp

Wheel base 4600mm

Chassis parameters
Chassis model		ZZ1167M4617C	Chassis brand	SINOTRUK
Overall dimensions		7990x2496x2958mm	Wheel base	4600mm
Front/rear wheel track		2022/1830mm	Front/rear suspension	1500/1890mm
Approach/departure angle		16/23°	Maximum speed	90km/h
Chassis Manufacturer		China National Heavy Duty Truck Group Co.,Ltd
Cab	Configuration	HW76 double rows cab, allowable 3+3 passengers,air conditioner.
	Color	Red, other color is optional
Engine	Model	WD615.92
	Emission	Euro 3
	Type	6 cylinders, in-line, turbo inter-cooling
	Rated power	266hp, rated power speed 1100rpm
	Displacement	9726ml
	Max.torque	1100N.m
	Bore x stroke	123x130mm
	Manufacturer	China National Heavy Duty Truck Group Co.,Ltd
Tire	Size	11.00R20
	Number	6+1 nos
Clutch	φ430 diaphragm clutch
Fuel tank	300L iron oil tank
Front axle	HF 7 tons
Rear axle	ST 16 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	gearbox HW13710, 10 speed forward 2 reverse.
Steering device	Power assisted steering,steering machine(ZF8098)
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Fire truck structure parameters
Water tank volume		10000L	Tank material	Carbon steel
Tank thickness		5mm	Fire pump	CB10/40
Fire gun		PS40	Color and Logo	Optional
Standard configuration	Chassis,sub frame, van body, national standard equipment box, 25 units national standard fire-fighting equipment,fire pump, fire gun,fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank.

Fire truck accessories
NO.	ITEM	Q.T.Y	UNIT
1	Suction Tube 100-125 2 meters	4	Length
2	Water Filter 100-125	1	unit
3	Suction Tube wrench	2	unit
4	Ground fire wrench	1	unit
5	Underground Fire wrench	1	unit
6	Fire hose 65mm	5	roll
7	Fire hose 80mm	5	roll
8	Outer-affusion water belt	2	roll
9	Different diameter interface 80-65	2	unit
10	Nozzle straight stream	1	unit
11	Nozzle spray stream	1	unit
12	Nozzle multi jet	1	unit
13	Nozzle foam making	2	unit
14	Same diameter interface 100-125	1	unit
15	Tri-detaching water equipment 80-65	1	unit
16	Water collection	1	unit
17	Water belt guard bridge	1	Set of
18	Water belt Wrapper	4	unit
19	Water belt hook	4	unit
20	Foam barrel 25 Litre	2	unit
21	Fire Hammer	1	unit
22	Fire axe	1	unit
23	fire tool	1	unit
24	Fire hook	1	unit
25	Fire pickaxe	1	unit
26	Fire barrel	1	unit
27	Axe	1	unit
28	Ladders	1	Set
