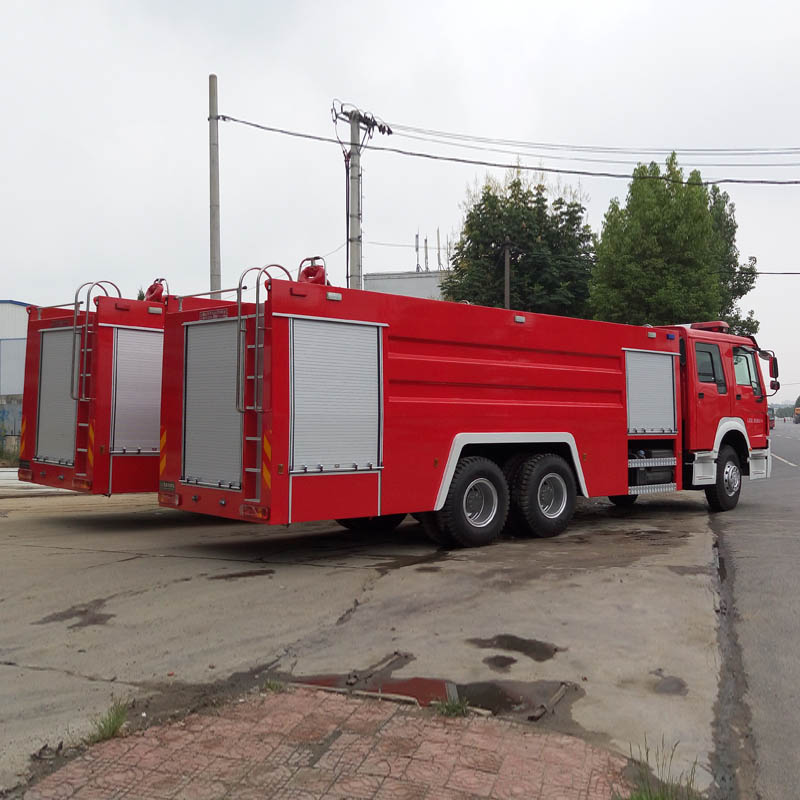

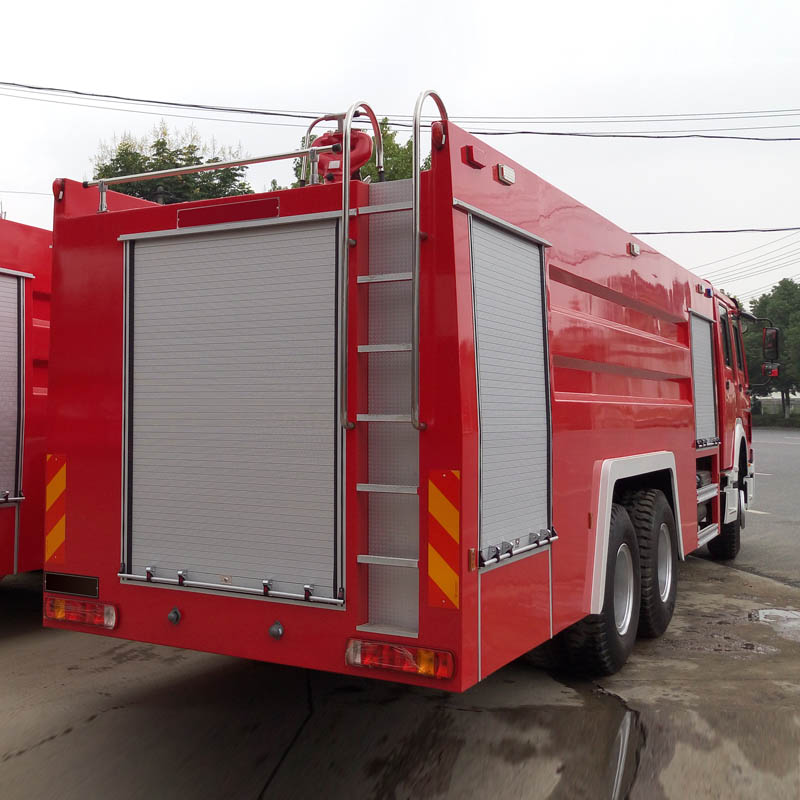

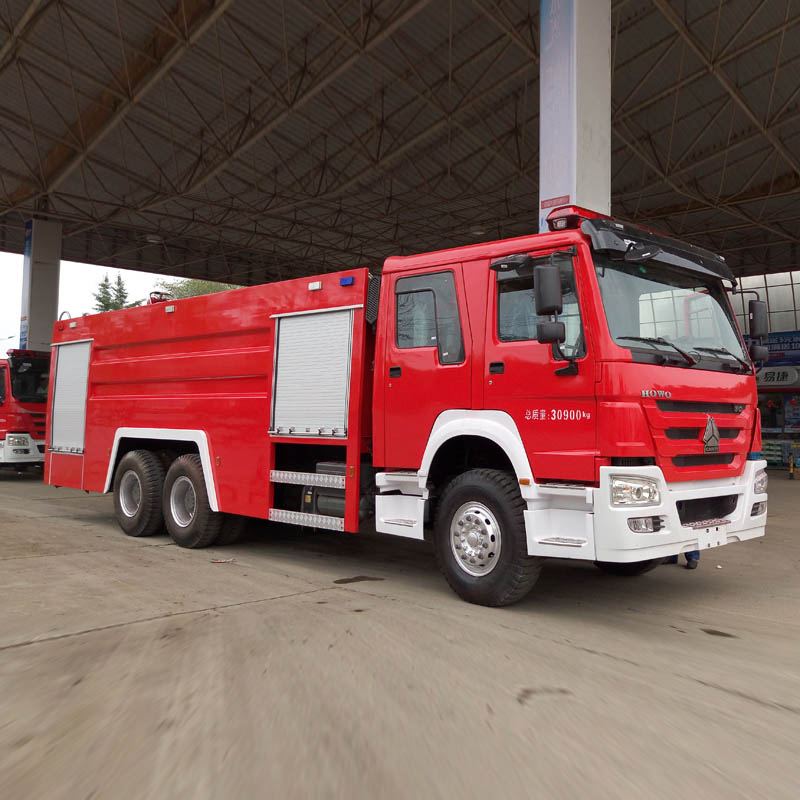

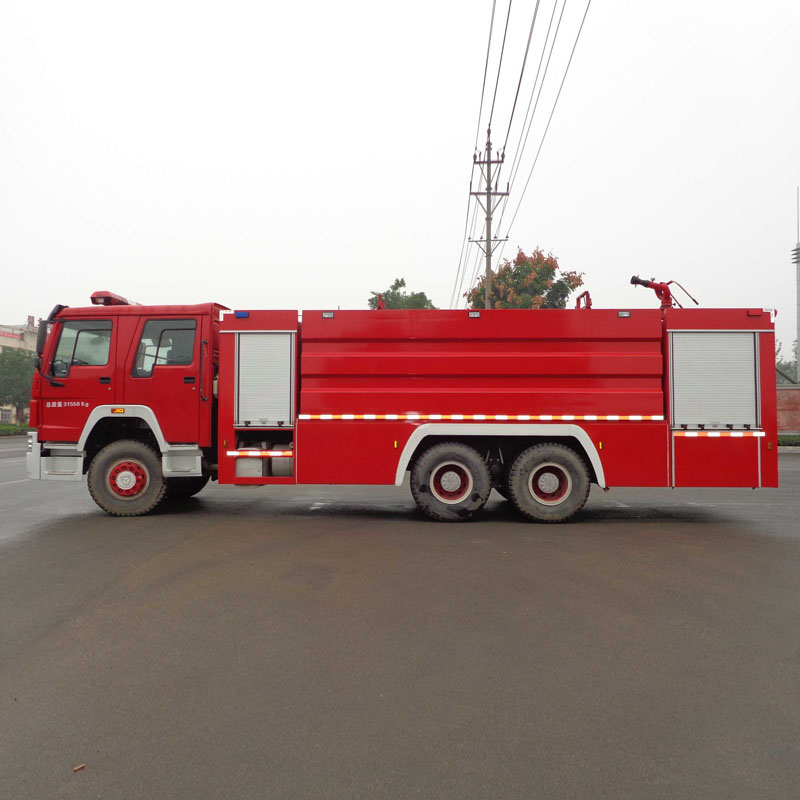

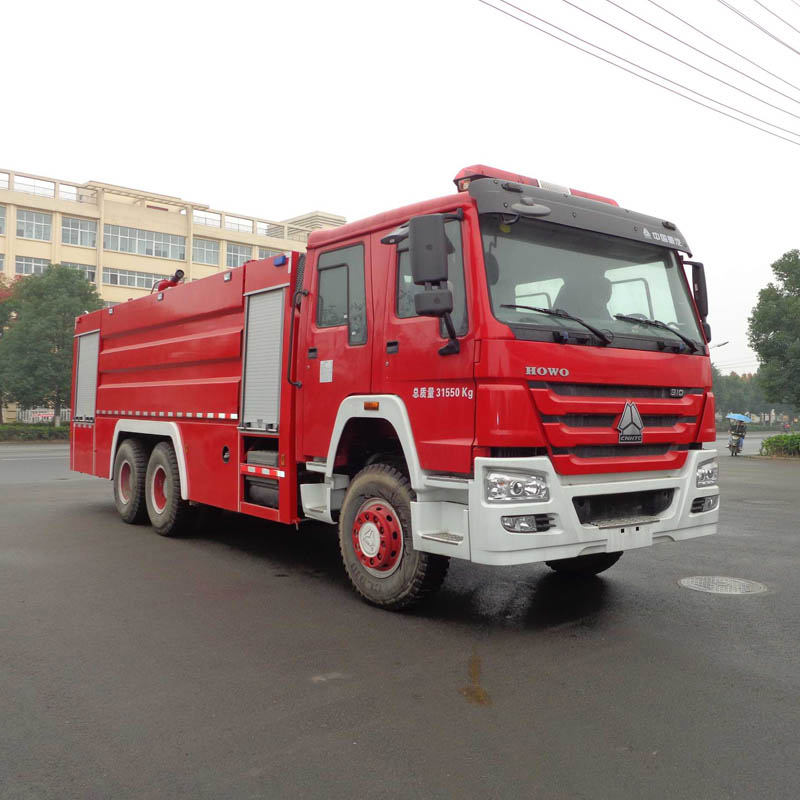

Product introduction:
Vehicle parameters |
|||
Vehicle Model |
HLW5257GXFSGZ |
Vehicle Brand |
HLW |
Overall dimensions |
9680X2500X3650mm |
Curb weight |
14500kg |
Water tank volume |
8000L |
Foam tank volume |
3000L |
Chassis parameters |
||||
Chassis model |
ZZ1257N4347C |
Chassis brand |
SINOTRUK HOWO |
|
Overall dimensions |
9120x2496x2958mm |
Wheel base |
4325+1350mm |
|
Front/rear wheel track |
2022/1830/1830mm |
Front/rear suspension |
1500/1920mm |
|
Approach/departure angle |
16/23° |
Maximum speed |
102km/h |
|
Chassis Manufacturer |
China National Heavy Duty Truck Group Co.,Ltd |
|||
Cab |
Configuration |
HW76 double rows cab, allowable 3+3 passengers,air conditioner. |
||
Color |
Red |
|||
Engine |
Model |
WD615.69 |
||
Emission |
Euro 2 |
|||
Type |
6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
|||
Rated power |
336hp, rated power speed 2200rpm |
|||
Displacement |
9726ml |
|||
Max.torque |
1350N.m |
|||
Bore x stroke |
126x130mm |
|||
Manufacturer |
China National Heavy Duty Truck Group Co.,Ltd |
|||
Tire |
Size |
12R22.5 tubeless tire |
||
Number |
10+1 nos |
|||
Clutch |
φ430 diaphragm clutch |
|||
Fuel tank |
400L Aluminum oil tank |
|||
Front axle |
HF 7 tons |
|||
Rear axle |
ST 16 tons |
|||
Drive form |
6X4 |
|||
Suspension |
Multi leaf springs |
|||
Rated voltage |
24V, DC |
|||
Transmissions |
gearbox HW19710, 10 speed forward 2 reverse. |
|||
Steering device |
Power assisted steering,steering machine(ZF8118) |
|||
Steering wheel |
Left hand drive |
|||
If there is a slight change in the chassis parameters above, please take the actual product as the standard |
Upper structure parameters |
|||||||
Water tank volume |
8000L |
Foam tank volume |
3000L |
||||
Tank material |
Carbon steel |
Tank thickness |
5mm |
||||
Fire pump |
CB10/60 |
Fire gun |
PL48 |
||||
|
|
Color and Logo |
Optional |
||||
Standard configuration |
Chassis,sub frame, van body,America DOPPON paint baking varnish,national standard equipment box, 25 units national standard fire-fighting equipment,fire pumpCB10/60 according to the capacity), fire gun(PL48 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank,foam tank,sidelights,tail remote lighting lamp. |
||||||
Fire truck accessories |
|||||||
NO. |
ITEM |
Q.T.Y |
UNIT |
||||
1 |
Suction Tube 100-125 2 meters |
4 |
Length |
||||
2 |
Water Filter 100-125 |
1 |
unit |
||||
3 |
Suction Tube wrench |
2 |
unit |
||||
4 |
Ground fire wrench |
1 |
unit |
||||
5 |
Underground Fire wrench |
1 |
unit |
||||
6 |
Fire hose 65mm |
5 |
roll |
||||
7 |
Fire hose 80mm |
5 |
roll |
||||
8 |
Outer-affusion water belt |
2 |
roll |
||||
9 |
Different diameter interface 80-65 |
2 |
unit |
||||
10 |
Nozzle straight stream |
1 |
unit |
||||
11 |
Nozzle spray stream |
1 |
unit |
||||
12 |
Nozzle multi jet |
1 |
unit |
||||
13 |
Nozzle foam making |
2 |
unit |
||||
14 |
Same diameter interface 100-125 |
1 |
unit |
||||
15 |
Tri-detaching water equipment 80-65 |
1 |
unit |
||||
16 |
Water collection |
1 |
unit |
||||
17 |
Water belt guard bridge |
1 |
Set of |
||||
18 |
Water belt Wrapper |
4 |
unit |
||||
19 |
Water belt hook |
4 |
unit |
||||
20 |
Foam barrel 25 Litre |
2 |
unit |
||||
21 |
Fire Hammer |
1 |
unit |
||||
22 |
Fire axe |
1 |
unit |
||||
23 |
fire tool |
1 |
unit |
||||
24 |
Fire hook |
1 |
unit |
||||
25 |
Fire pickaxe |
1 |
unit |
||||
26 |
Fire barrel |
1 |
unit |
||||
27 |
Axe |
1 |
unit |
||||
28 |
Ladders |
1 |
Set |
