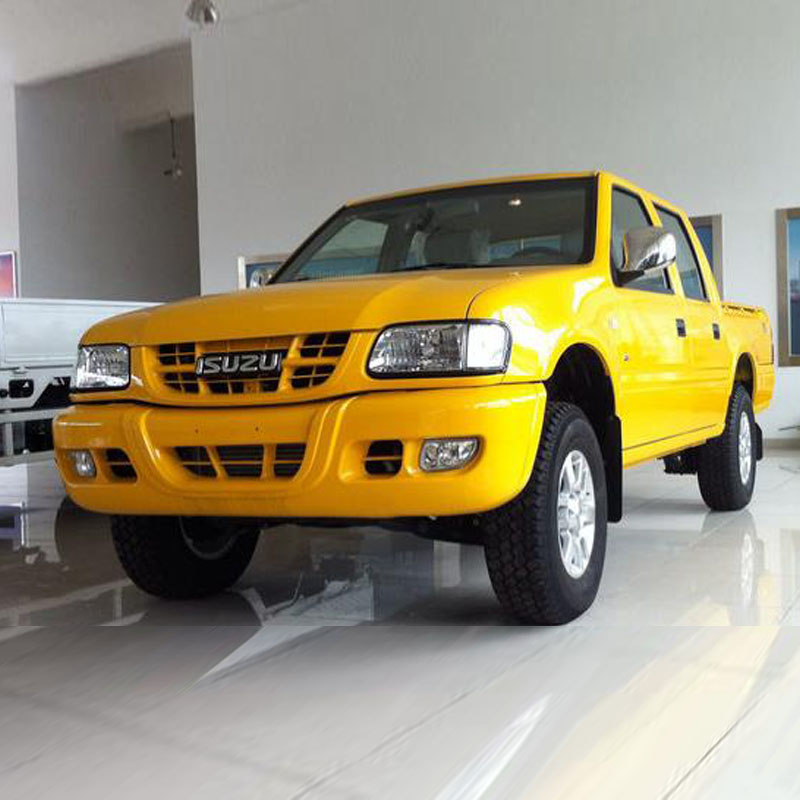

QL10207GDRC Pickup

Vehicle parameters

Vehicle Model

QL10207GDRC

GVW

2615KG

Overall dimensions

5030X1690X1680mm

Van dimensions

1488X1470X480mm

Chassis parameters

Overall dimensions

5030X1690X1680mm

Wheel base

3025mm

Approach/departure angle

30/20

Maximum speed

130km/h

Chassis Manufacturer

ISUZU QingLing Motors (Group) Co., Ltd.

Cab

Configuration

Double row ,allowable 2 +3 passengers, Air container,USB ,radio,electric window.

Color

Optional

Engine

Model

4JB1CT

Emission

Euro 4

Type

4 cylinders,16 valves ,in-line, turbocharged, high pressure common rail high pressure direct injection type

Maximum power

98hp 3600 rpm

Displacement

2771ml

Max.torque

220 N.m 1800rpm

Manufacturer

Isuzu (ChongQing) Engine Co., Ltd.

Tire

Size

   235/75R15

Number

4+1 nos

Fuel tank

80L

Drive form

4X4

suspension

Front  Independent suspension  Rear Leaf spring

Brakes

Front  ventilated discs   Rear   drums type

Rated voltage

24V,DC

Windows

Front/rear electric adjust window

Transmissions

5 speed forward 1 reverse

Steering device

Hydraulic power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Van body structure parameters

Van dimensions

1488X1470X480mm

Van material

Carbon steel

Color and Logo

Optional

Standard configuration

Chassis,sub frame, van body
