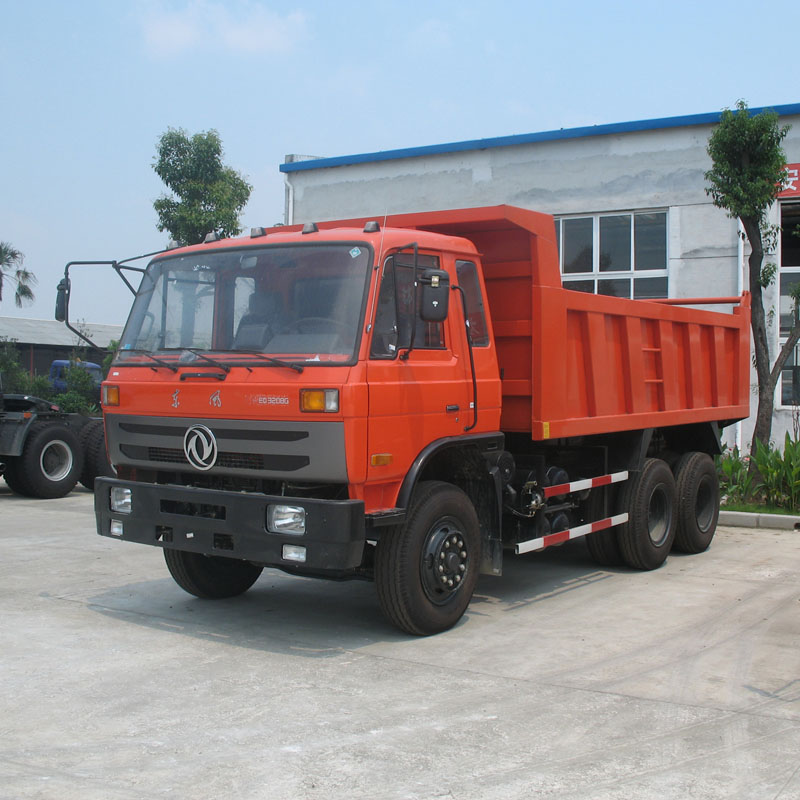

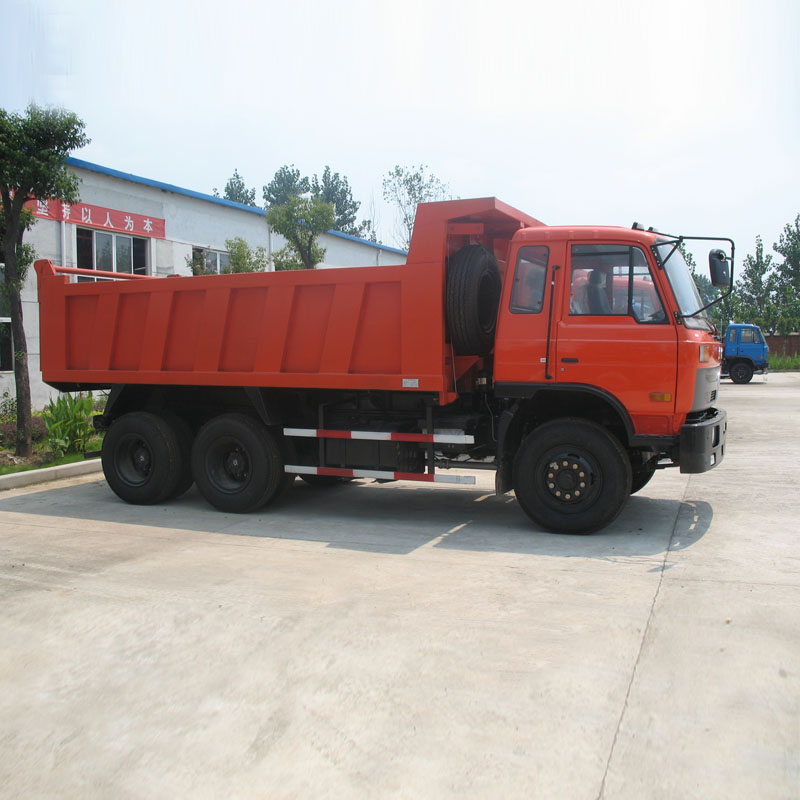

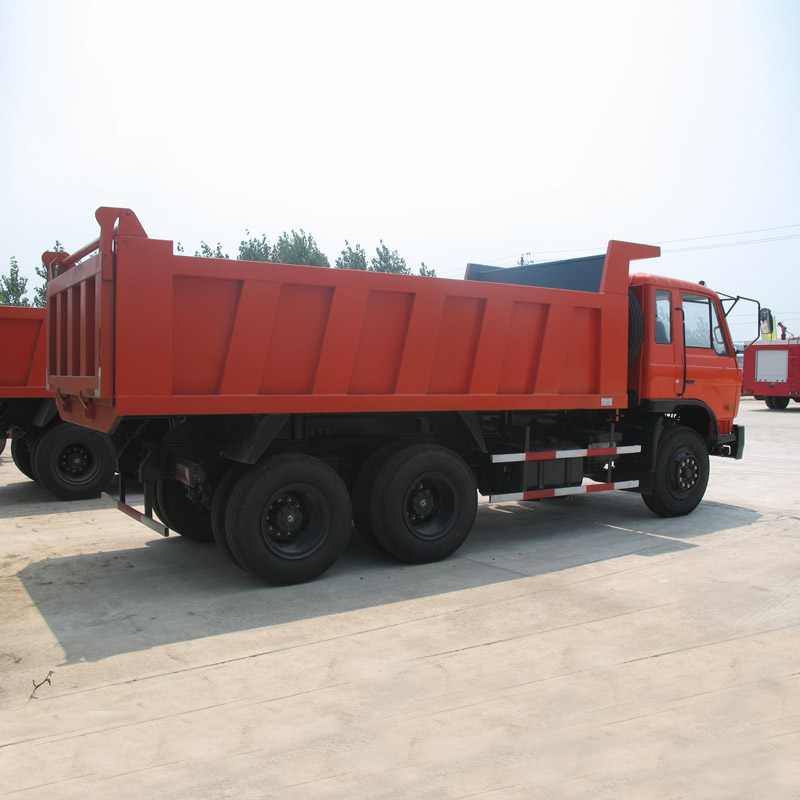

HLW3208E dump truck

Vehicle parameters

Vehicle Model

HLW3208E

Vehicle Brand

LIWEI

Overall dimensions

7795X2480X3350mm

Curb weight

9900kg

Van dimensions

4775X2300X1500mm

Loading capacity

20000kg

Chassis parameters

Chassis model

EQ3208GJ5

Chassis brand

DONGFENG

Overall dimensions

6865X2462X2710mm

Wheel base

3500+1300mm

Front/rear wheel track

1940/1860mm

Front/rear suspension

1245/820mm

Approach/departure angle

32/36°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Red,other color is optional

Engine

Model

YC6A240-33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

240hp,rated power speed 2300rpm

Displacement

7255ml

Max.torque

900N.m

Bore x stroke

108x132mm

Manufacturer

Yuchai Machinery Co.,Ltd

Tire

Size

11.00-20 nylon tire

Number

10+1 nos

Fuel tank

160L,steel

Front axle

5.0T

Rear axle

10.0T

Drive form

6X4

Rated voltage

24V,DC

Transmissions

Gearbox FAST 9JS, 9 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

Air Conditioner,steel wire tire,new driver’s cab

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper truck structure parameters

Van body dimensions

4775X2300X1500mm

Side wall

8mm

Bottom plate

12mm

Van body material

Common steel

Lifting position

Front lifting

Dumping direction

Rear

Oil Cylinder

Domestic Ф180

Color and Logo

Optional

Standard configuration

chassis, sub frame, van body side 8mm bottom 12mm,domestic Middle lifting hydraulic cylinder Ф180,common steel, four longitudinal beams, rectangular van body, single door
