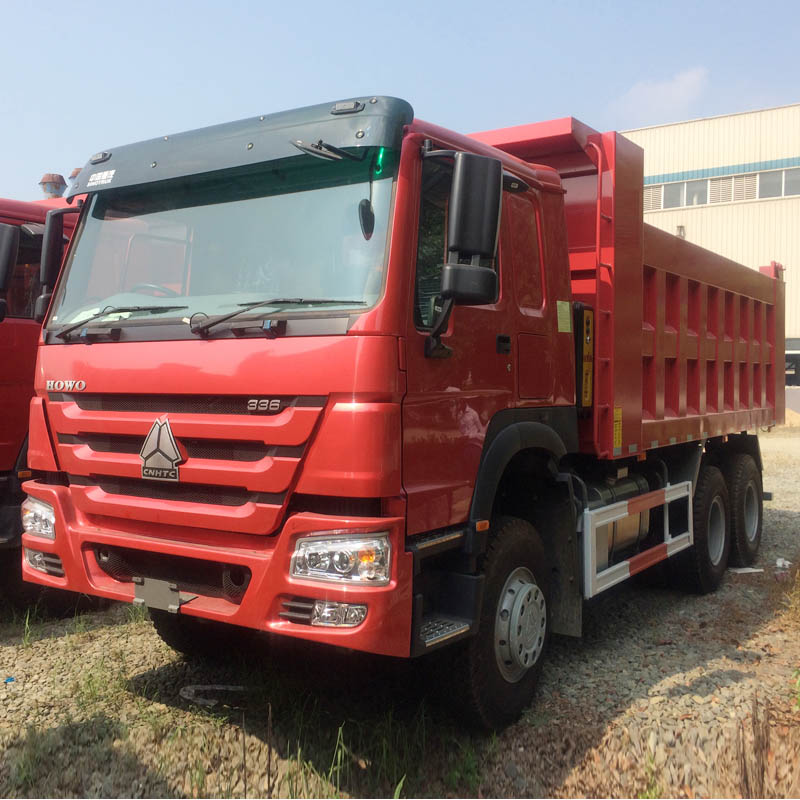

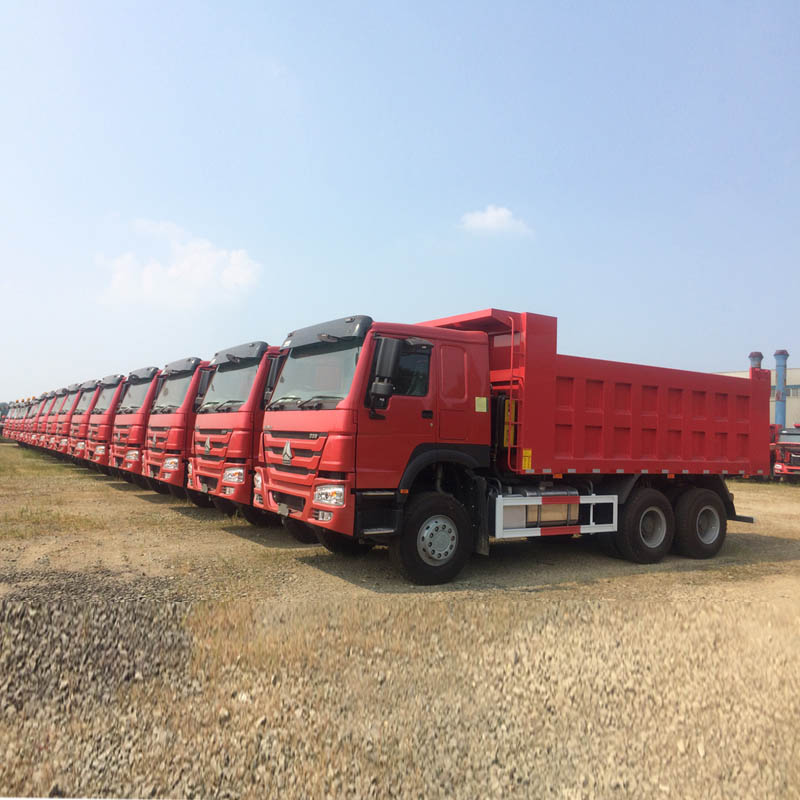

HLW3257N3847Z dump truck

Vehicle parameters

Vehicle Model

HLW3257N3847Z

Vehicle Brand

Sinotruk HOWO

Overall dimensions

8545 X2496X3370mm

Curb weight

12270kg

Van dimensions

5600X2300X1600mm

Loading capacity

40000kg

Chassis parameters

Chassis model

ZZ3257N3847A

Chassis brand

Sinotruk HOWO

Overall dimensions

7575X2496X3025mm

Wheel base

3815+1350mm

Front/rear wheel track

2022, 1830/1830mm

Front/rear suspension

1500/1870mm

Approach/departure angle

19/50°

Maximum speed

90km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers. Air conditioner.

Color

Red, other color is optional

Engine

Model

WD615.69

Emission

Euro 2

Type

6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine

Rated power

336hp, rated power speed 2200rpm

Displacement

9726ml

Max.torque

1350N.m

Bore x stroke

126x130mm

Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Tire

Size

12.00R20 steel wire tire

Number

10+1 nos

Frame

8+8/300

Clutch

φ430 diaphragm clutch

Fuel tank

300L Aluminum alloy fuel tank

Front axle

HF 9 tons

Rear axle

HC 16 tons

Drive form

6X4

Suspension

Multi leaf springs

Rated voltage

24V, DC

Transmissions

gearbox HW19710, 10 speed forward 2 reverse.

Steering device

ZF8118 Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above, please take the actual product as the standard

Upper structure parameters

Van body dimensions

5600X2300X1600mm

Side wall

8mm

Bottom plate

12mm

Van body material

Common steel

Lifting position

Front lifting

Dumping direction

Rear

Oil Cylinder

Domestic Ф180

Color and Logo

Optional

Standard configuration

chassis, sub frame, van body side 8mm bottom 12mm,domestic Middle lifting hydraulic cylinder Ф180,common steel, four longitudinal beams, rectangular van body, single door
