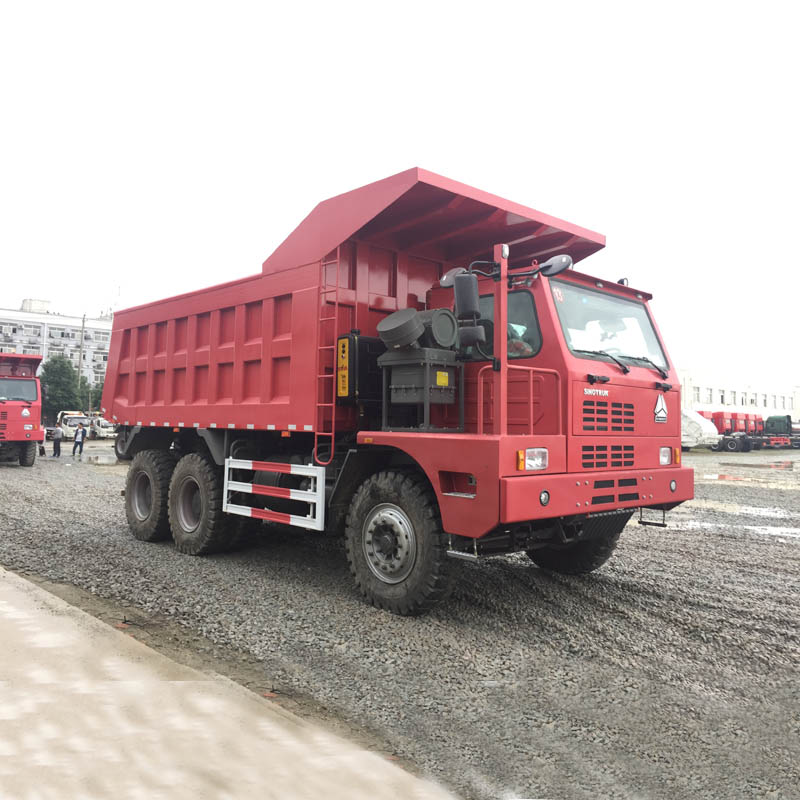

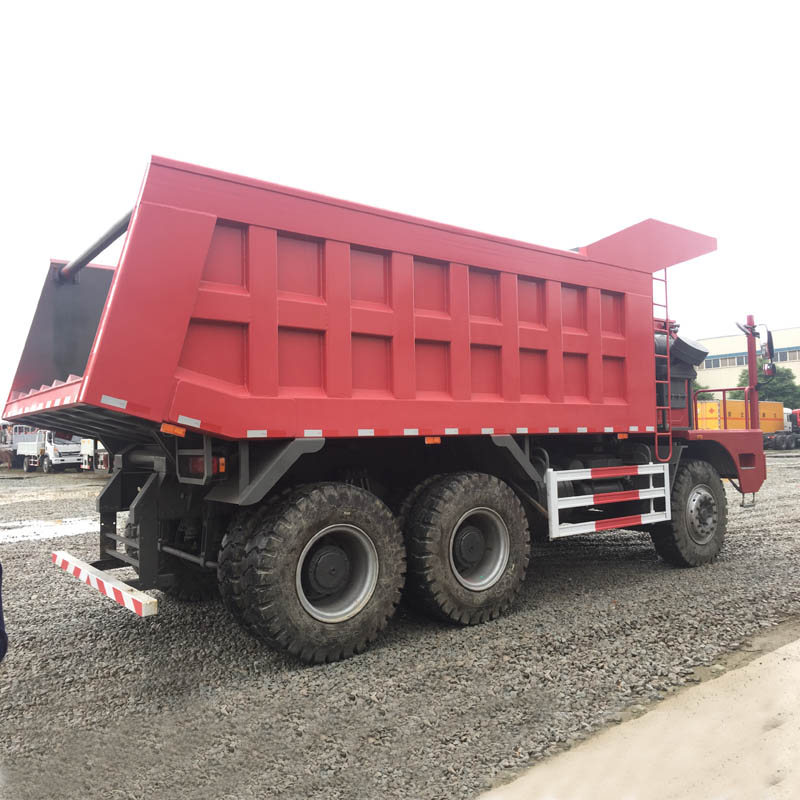

HLW3707S3840Z dump truck

Vehicle parameters

Vehicle Model

HLW3707S3840Z

Vehicle Brand

HLW

Overall dimensions

8600X3300X3800mm

Curb weight

23000kg

Van dimensions

5800X3100X1700mm

Loading capacity

70000kg

Chassis parameters

Chassis model

ZZ5707S3840AJ

Chassis brand

SINOTRUK

Overall dimensions

7865X3200X3025mm

Wheel base

3800+1500mm

Front/rear wheel track

2750/2520/2520mm

Front/rear suspension

1500/850mm

Approach/departure angle

32/40°

Maximum speed

50km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

Single row, allowable 2 passengers

Color

Red, other color is optional

Engine

Model

WD615.47

Emission

Euro 2

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling ,diesel engine

Rated power

371hp,rated power speed 2200rpm

Displacement

9726ml

Max.torque

1500N.m

Bore x stroke

126x130mm

Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Tire

Size

14.00-25 nylon tire

Number

10+1 nos

Clutch

φ430 diaphragm clutch

Fuel tank

400L

Front axle

HF12

Rear axle

AC26

Drive form

6X4

Rated voltage

24V,DC

Transmissions

HW19710 gearbox ,10 speed forward 2 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

Selective configuration

If there is a slight change in the chassis parameters above, please take the actual product as the standard

Dump truck structure parameters

Van body dimensions

5800X3100X1700mm

Side wall

12mm

Bottom plate

14mm

Van body material

Manganese steel

Lifting position

Front

Dumping direction

Rear

Oil Cylinder

HYVAФ179

Color and Logo

Optional

Standard configuration

chassis, sub frame, van body side 12mm bottom 14mm,HYVA front lifting hydraulic cylinder Ф179, Manganese steel, four longitudinal beams, rectangular van body, single door
