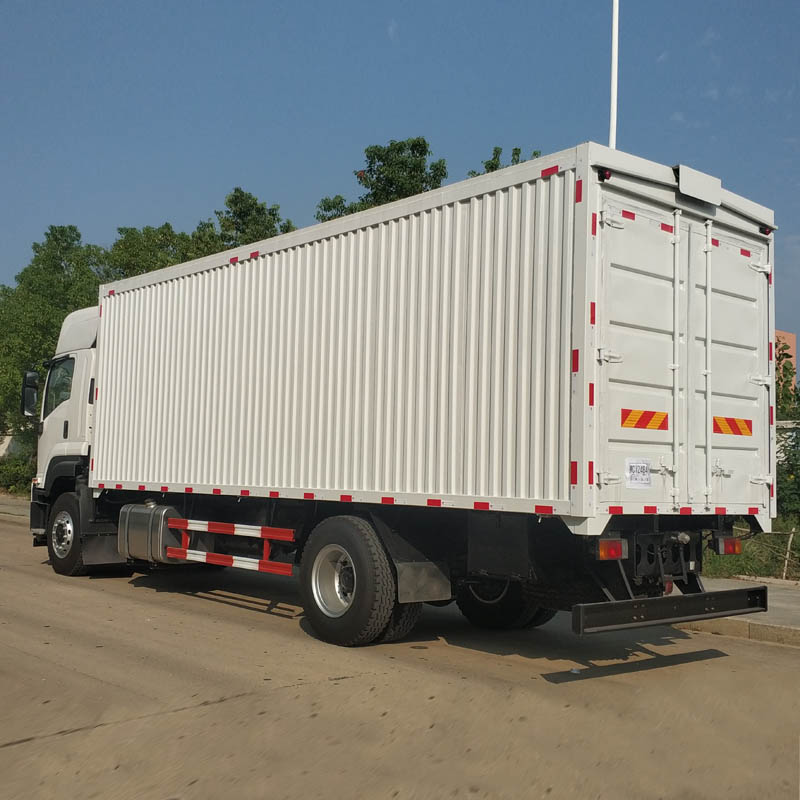

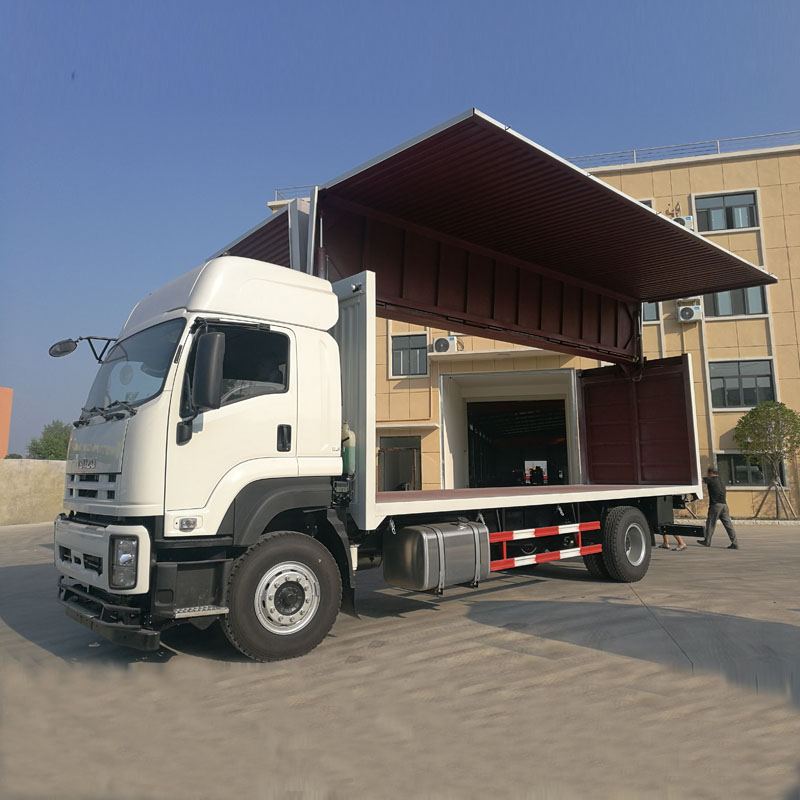

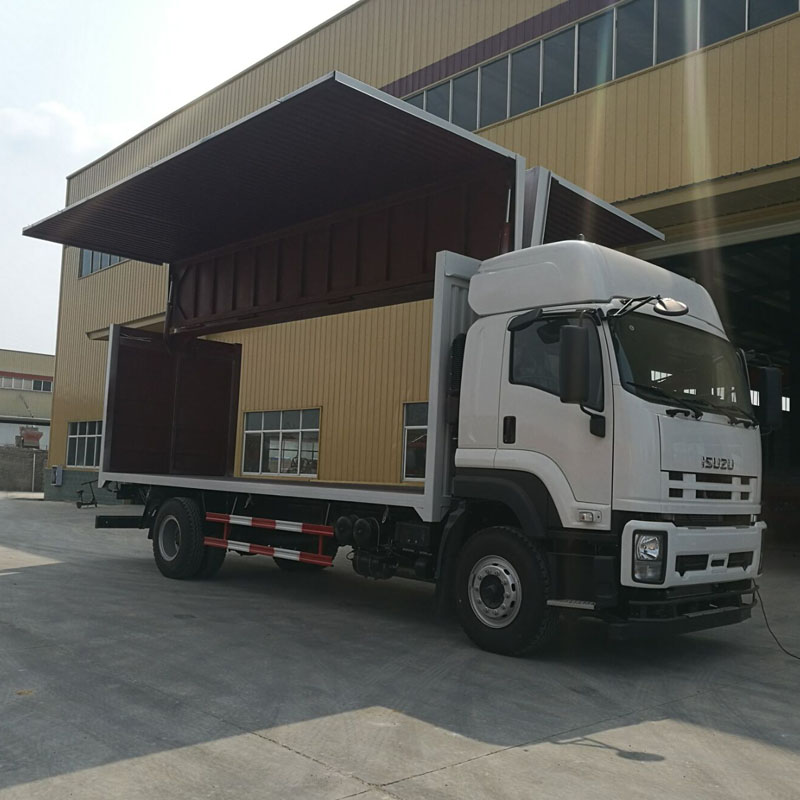

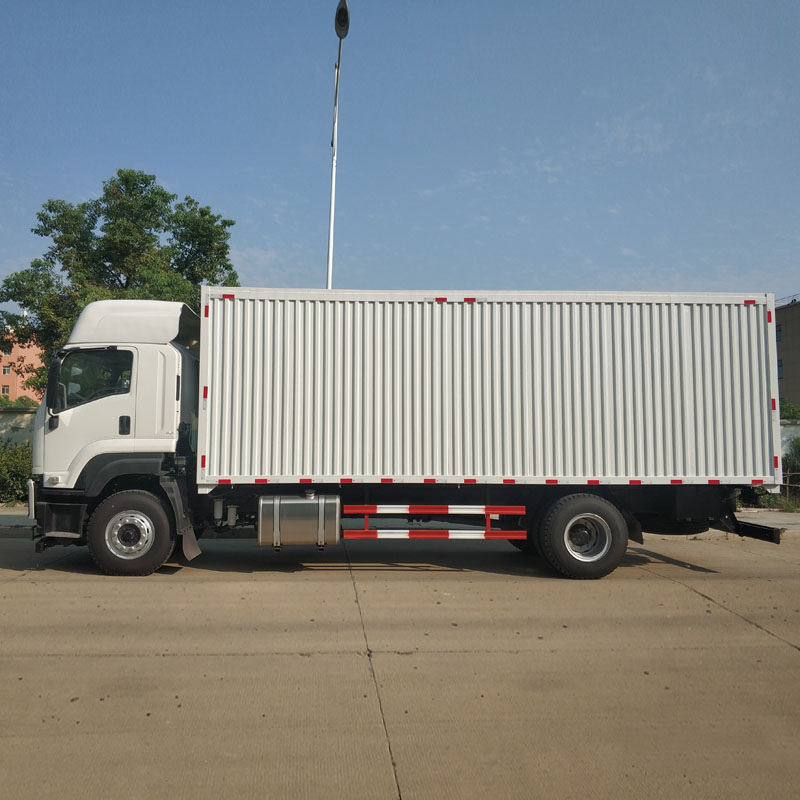

HLW5190GXYZQ wingspan van truck

Vehicle parameters

Vehicle Model

HLW5190GXYZQ

Vehicle Brand

HLW

Overall dimensions

10020X2500X3800mm

Curb weight

8250kg

Van dimensions

7320X2300X2000mm

Loading capacity

20-25 tons

Chassis parameters

Chassis model

QL5190GXFUACRY

Chassis brand

ISUZU

Overall dimensions

9070X2490X3025mm

Wheel base

5400mm

Front/rear wheel track

2060/1855mm

Front/rear suspension

1370/2325mm

Approach/departure angle

17/11°

Maximum speed

95km/h

Chassis Manufacturer

QingLing Motors (Group) Co.,Ltd

Cab

Configuration

VC46 cab, with air conditioner, central locking, electric window, USB audio.

Color

White, other color is optional

Engine

Model

6UZ1-TCG40

Emission

Euro 4

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Rated power

350hp,rated power speed 2000rpm

Displacement

9839ml

Max.torque

1422N.m

Bore&Stroke

120X145mm

Manufacturer

Isuzu Engine (Chongqing) Co.,Ltd

Tire

Size

11.00R20 steel wire tire

Number

6+1 nos

Front axle

7.0 tons

Rear axle

13.0 tons

Drive form

4X2

Rated voltage

24V,DC

Transmissions

9 speed forward 1 reverse

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Van body structure parameters

Van dimensions

7320X2300X2000mm

Loading capacity

20-25 tons

Van material

Corrugated iron tile

Hydraulic cylinder

On the wing van roof

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.

MOQ,payment terms,delivery terms,price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

35working days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis and van body structure

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box

Other requirements

Please fill in here

FOB

USD

CIF

USD

Shipment

Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days.

Please confirm the price again with our company before placing the order,thanks.
