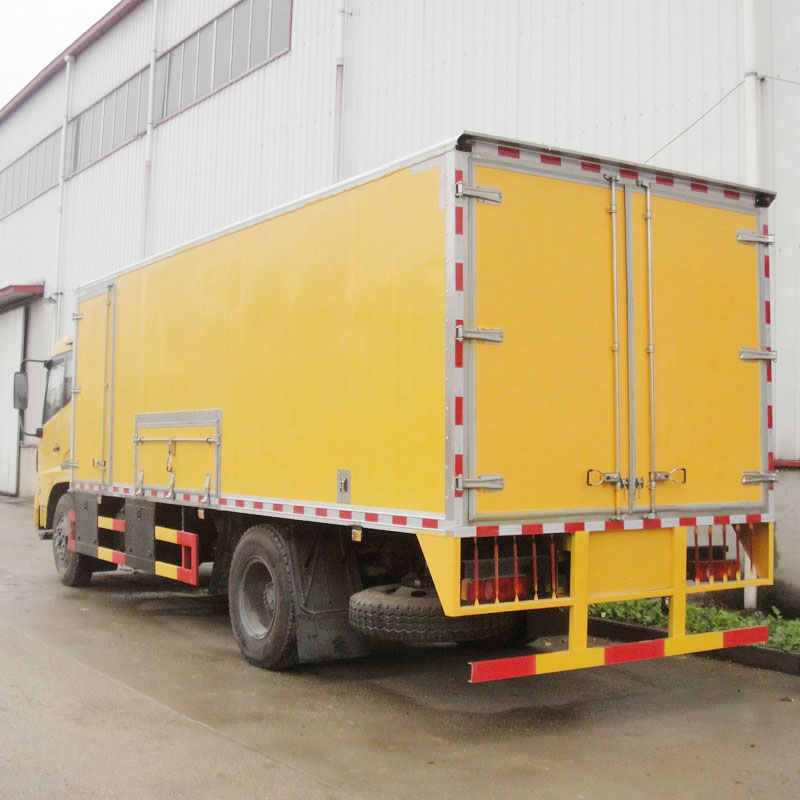

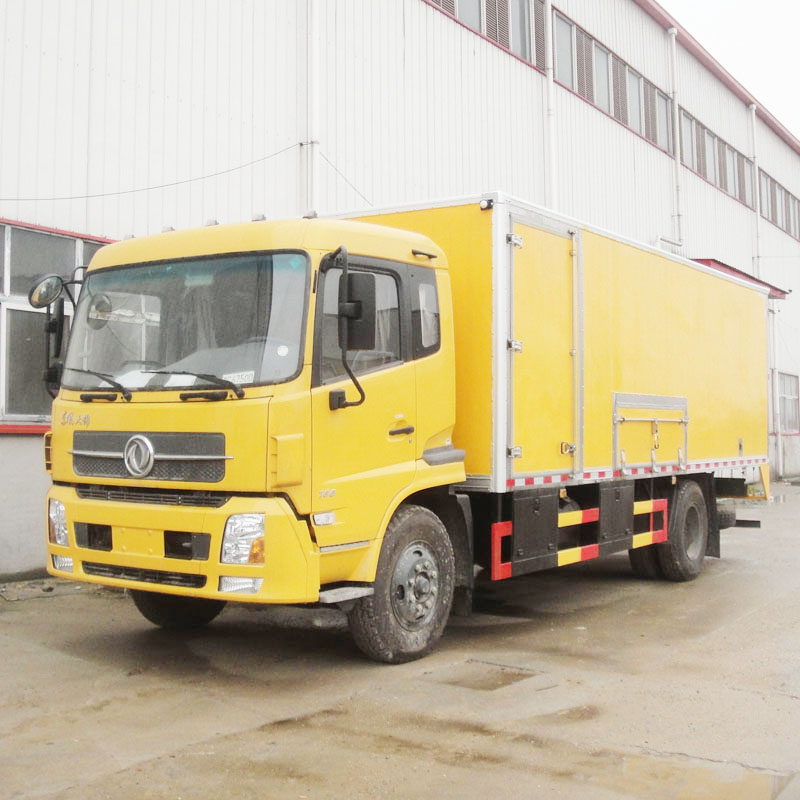

HLW5141XXYE 厢式车

Vehicle parameters

Vehicle Model

HLW5141XXYE

Vehicle Brand

FOMON

Overall dimensions

9100X2500X3850mm

Curb weight

5660kg

Van dimensions

6500X2400X2294mm

Loading capacity

15000kg

Chassis parameters

Chassis model

EQ1141KJ

Chassis brand

DONGFENG

Overall dimensions

7600x2462x2710mm

Wheel base

4500mm

Front/rear wheel track

1940x1860mm

Front/rear suspension

1205/1895mm

Approach/departure angle

25/18°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),allowable 3 passengers

Color

Blue,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

10.00-20-16 nylon tire

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

5.0T

Rear axle

10.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox 8JS85E, 8 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

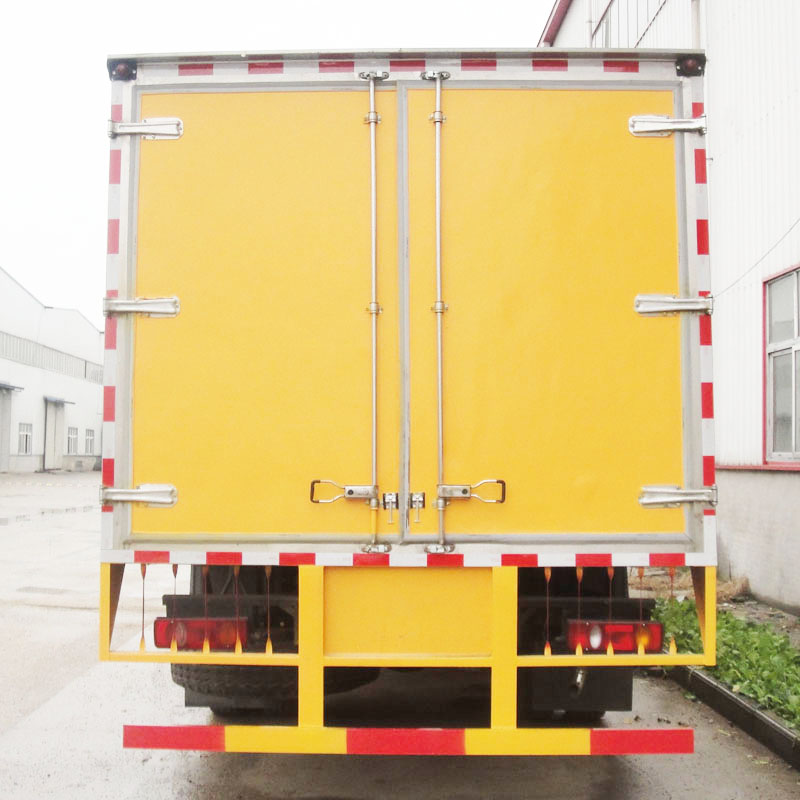

Van body structure parameters

Van dimensions

6500X2400X2294mm

Loading capacity

15000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
