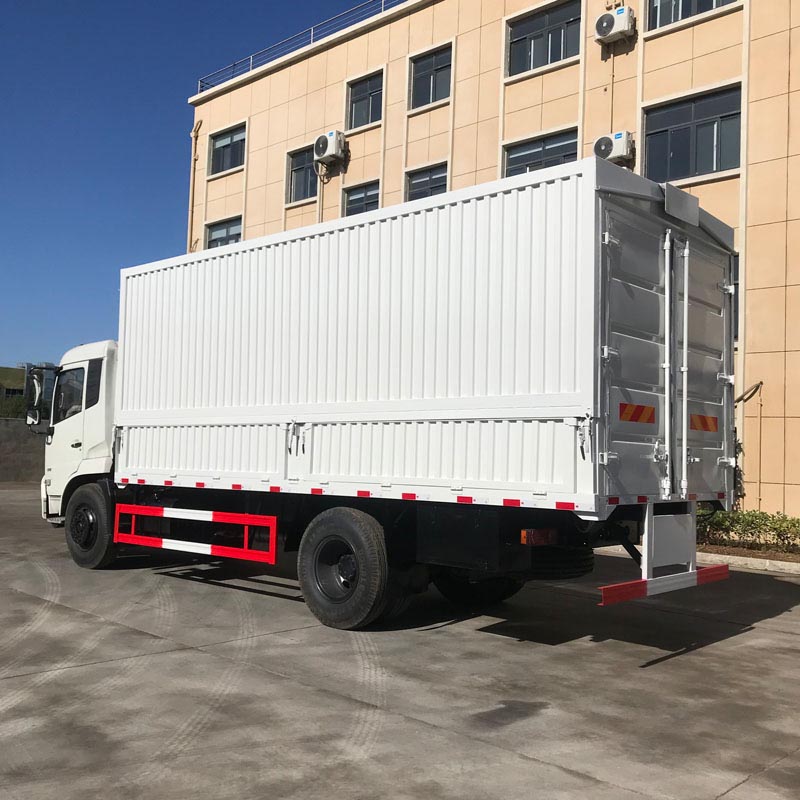

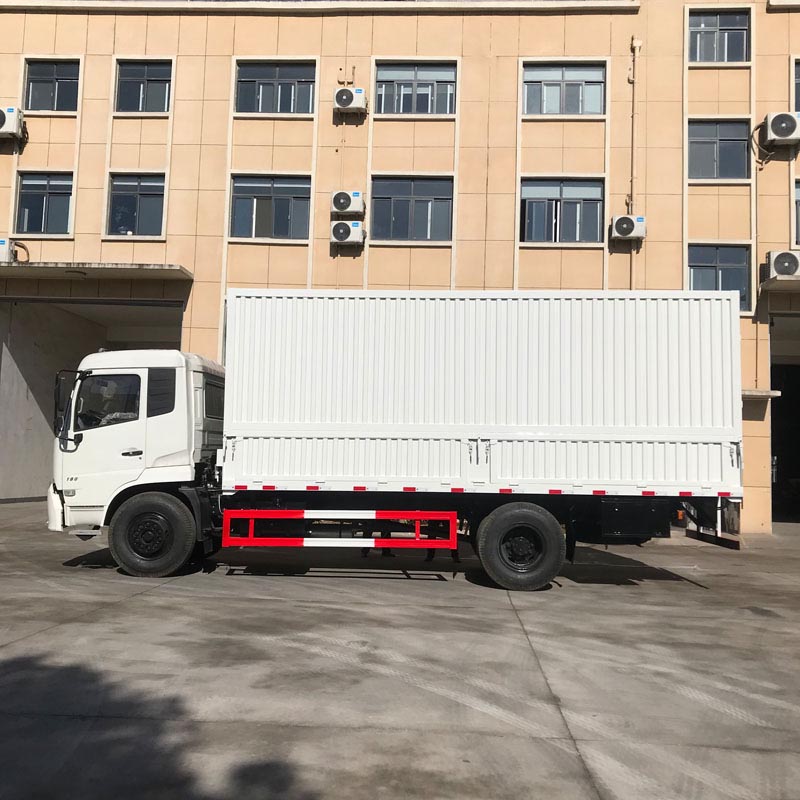

HLW5160XXYE翼展厢式车

Vehicle parameters

Vehicle Model

HLW5160XXYE

Vehicle Brand

ZHONGQI LIWEI

Overall dimensions

8550X2520X3730mm

Curb weight

7800kg

Van dimensions

6200X2400X（550mm

Loading capacity

12000kg

Chassis parameters

Chassis model

EQ1141KJ

Chassis brand

DONGFENG

Overall dimensions

8290x2370x2760mm

Wheel base

4500mm

Front/rear wheel track

1880/1800mm

Front/rear suspension

1430/2360mm

Approach/departure angle

20/13°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

Tianjin a row and a half deluxe cab(with sleeping berth),,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers

Color

white,other color is optional

Engine

Model

B190 33

Emission

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

190hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

640N·m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

10.00-20 nylon tire

Number

6+1 nos

Clutch

push type diaphragm spring clutch,Φ395mm

Frame

(252x[7+5])mm

Front axle

5.0T

Rear axle

10.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox 8JS75, 8 speed forward 2 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Van body structure parameters

Van dimensions

6200X2400X（550mm+1850mm）

Loading capacity

12000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

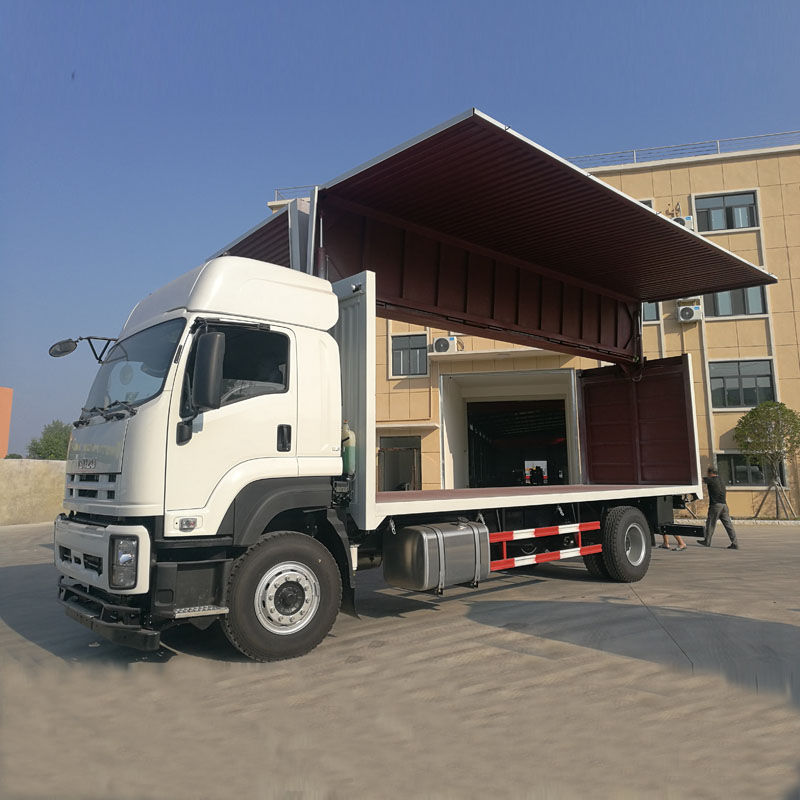

Chassis,sub frame,corrugated iron tile van body. Remote control, double-sided wingspan, hydraulic lifting.

MOQ,payment terms,delivery terms,price

MOQ

One unit

Payment terms

T/T 30% down payment, 70% balance after inspection before delivery

Inspection

Buyer's agent or third party inspection agency,the cost is paid by the buyer

Delivery term

20 working days from down payment

Documentation

Maintenance manual

User manual

Packing list

Commercial invoice

Certificate of origin is optional

Spare parts list for purchase is optional

Standard tools

With standard tools for chassis and van body structure

Packing

The main vehicle nude and covered with wax, attached parts and tools put into standard export box
