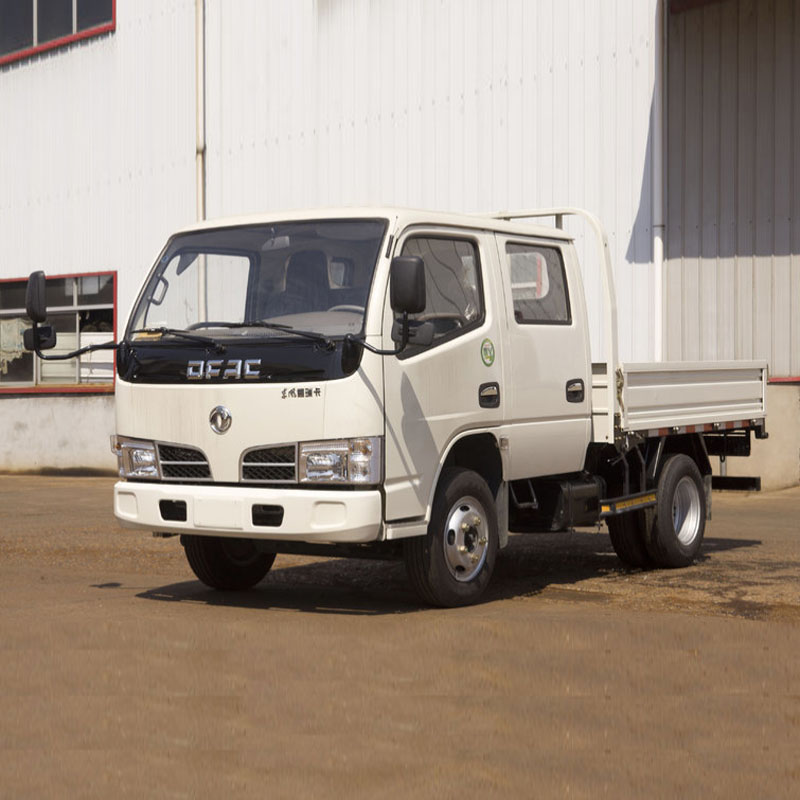

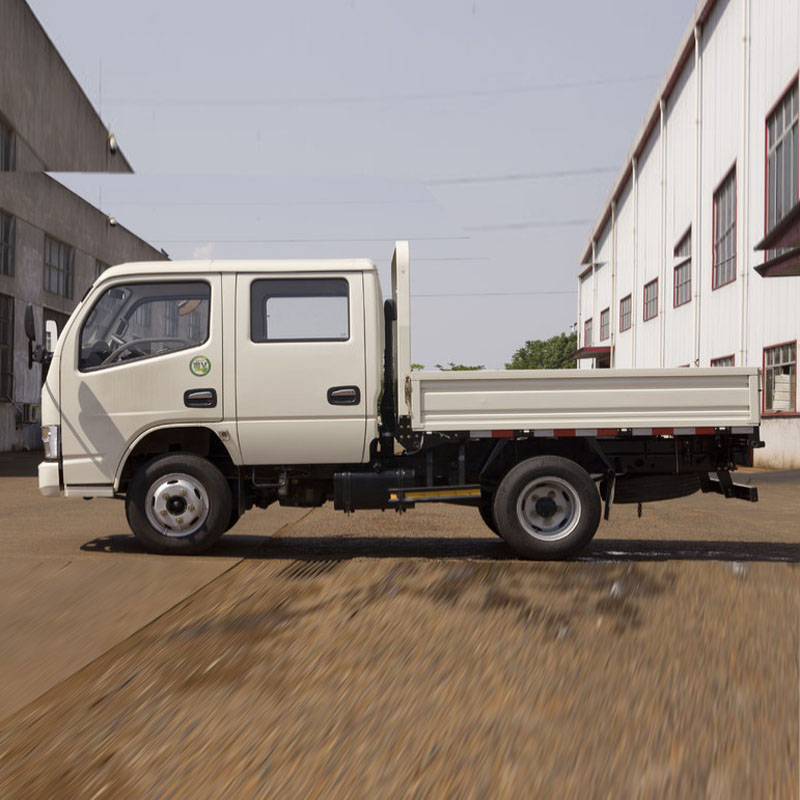

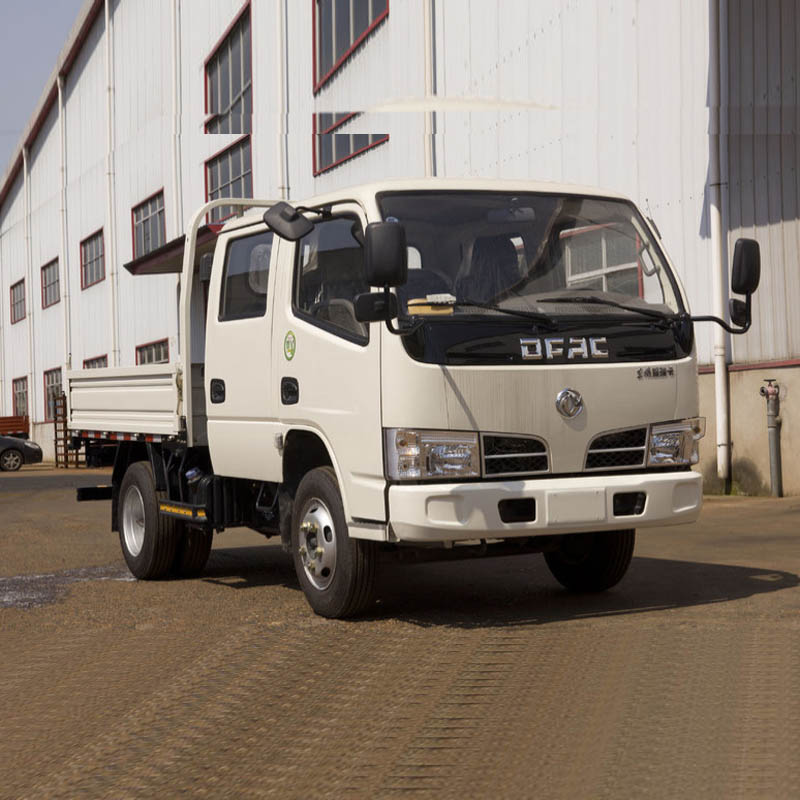

HLW5050E cargo truck

  •  HLW5050E cargo truck
HLW5050E cargo truck

Product name: HLW5050E cargo truck

Category: Cargo Truck

Brand Dongfeng

Double row cab

Wheel base 3300mm

Loading 5.0 tons

Product introduction:

Vehicle parameters

Vehicle Model

HLW5050E

Vehicle Brand

HLW

Overall dimensions

5900X1980X2200mm

Curb weight

3900kg

Van dimensions

3275X1880X400mm

Loading capacity

5000kg



Chassis parameters

Chassis model

EQ1050NZ20D3

Chassis brand

DONGFENG

Overall dimensions

5820x1940x2080mm

Wheel base

3300mm

Front/rear wheel track

1506/1466mm

Front/rear suspension

1032/1488mm

Approach/departure angle

19/15°

Maximum speed

95km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Double row cab,allowable 3+3 passengers

Color

White,other color is optional

Engine

Model

CY4102-C3F

Emission

Euro 3

Type

in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

95hp,rated power speed 3200rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Tire

Size

7.00-16 nylon tire

Number

6+1 nos

Fuel tank

100L,steel

Front axle

2.0T

Rear axle

4.0T

Drive form

4X2

Rated voltage

24V,DC

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard



Upper structure parameters

Van dimensions

3275X1880X400mm

Loading capacity

5000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
