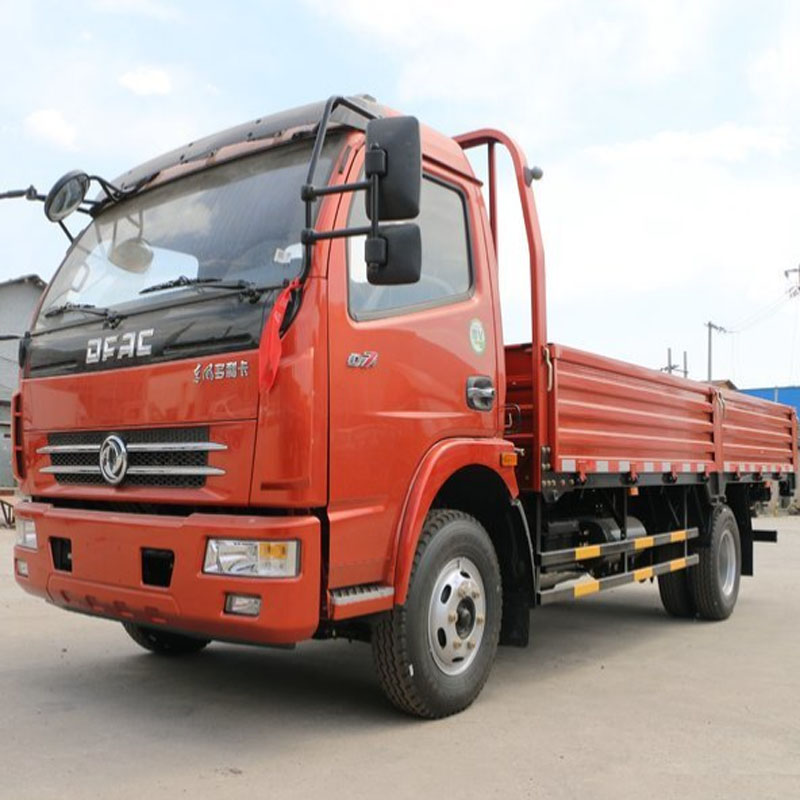

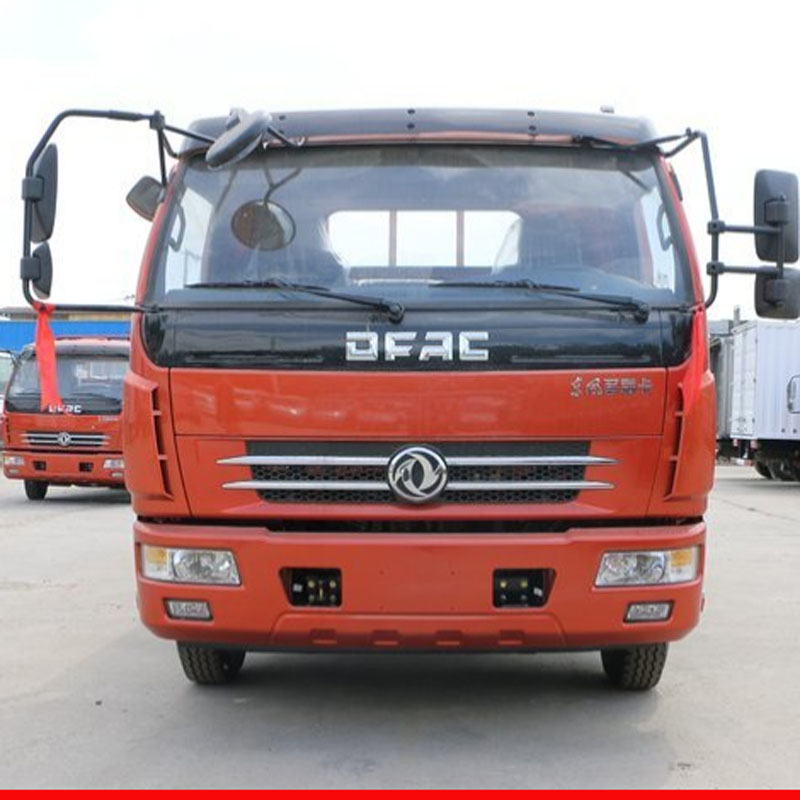

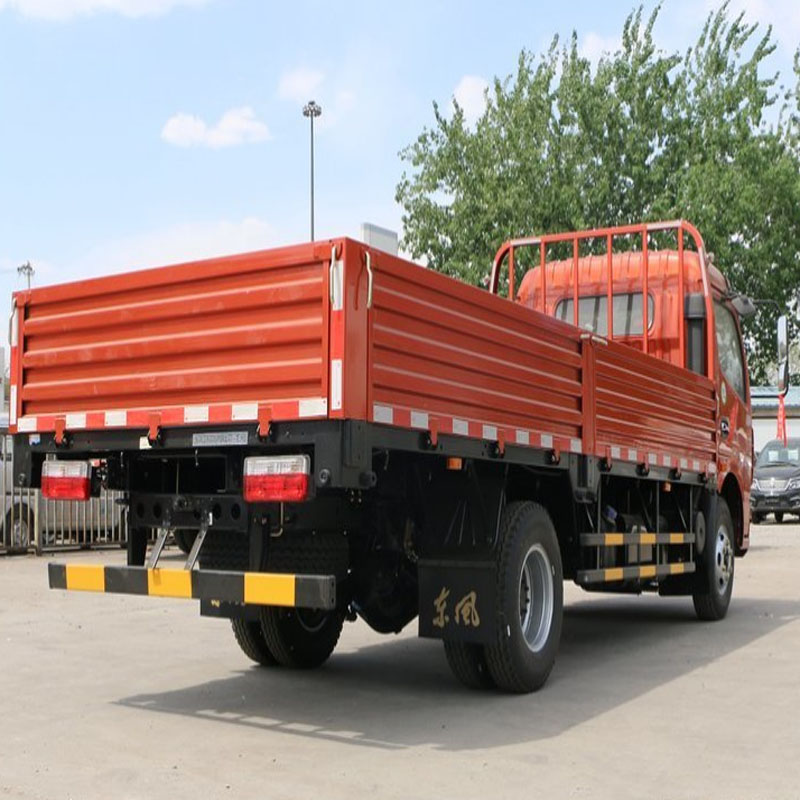

HLW5090E cargo truck

Vehicle parameters

Vehicle Model

HLW5090E

Vehicle Brand

HLW

Overall dimensions

7000X2300X2300mm

Curb weight

3300kg

Van dimensions

4800X2000X600mm

Loading capacity

8000kg

Chassis parameters

Chassis model

EQ1090GLJ

Chassis brand

DONGFENG

Overall dimensions

6695x2285x2480mm

Wheel base

3800mm

Front/rear wheel track

1750/1585mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

White,other color is optional

Engine

Tire

Model

CY4102

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

88KW,rated power speed 2800rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Chaoyang Diesel Power Co. Ltd.

Size

7.50R16,steel wire tire

Frame

Number

6+1 nos

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

3T

Rear axle

5T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Van body structure parameters

Van dimensions

4800X2000X600mm

Loading capacity

8000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
