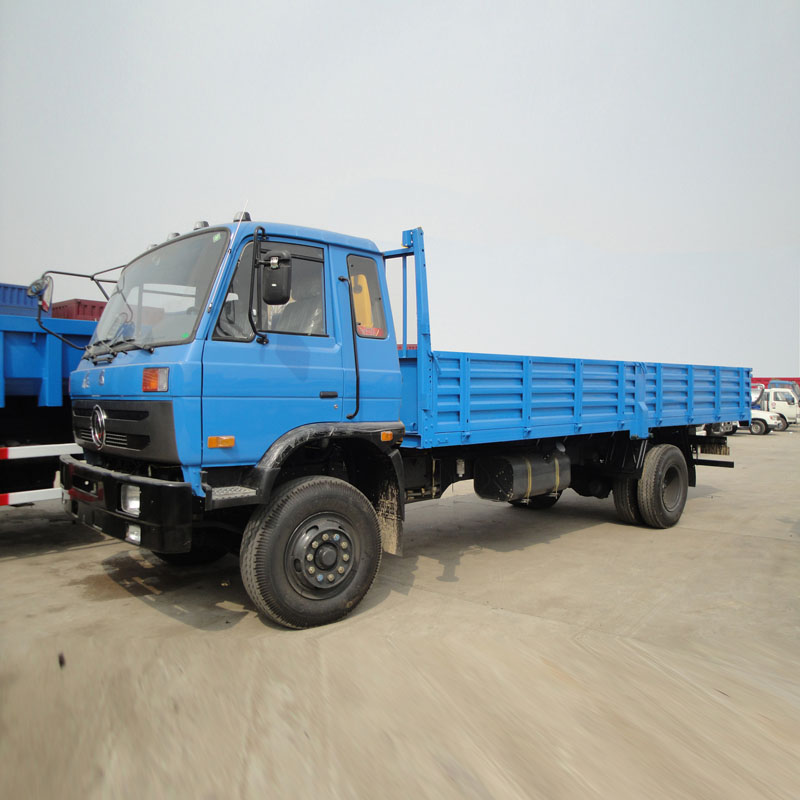

HLW5108E cargo truck

Vehicle parameters

Vehicle Model

HLW5108E

Vehicle Brand

DONGFENG

Overall dimensions

7375X2470X2795mm

Curb weight

5400kg

Van dimensions

5000X2294X550mm

Loading capacity

10000kg

Chassis parameters

Chassis model

EQ1108KJ

Chassis brand

DONGFENG

Overall dimensions

6975X2462X2690mm

Wheel base

3950mm

Front/rear wheel track

1900/1800mm

Front/rear suspension

1205/1820mm

Approach/departure angle

25/18°

Maximum speed

90km/h

Chassis Manufacturer

Dongfeng Motor Company

Cab

Configuration

A row and a half deluxe cab(with sleeping berth),air conditioner, allowable 3 passengers

Color

Blue,other color is optional

Engine

Model

B170 33

Emission

Euro 3

Type

6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

170hp,rated power speed 2500rpm

Displacement

5900ml

Max.torque

560N.m

Bore x stroke

102x120mm

Manufacturer

Dongfeng Cummins Engine Co., Ltd.

Tire

Size

9.00R20

Number

6+1 nos

Frame

(250×80×7)mm,parts are double layers.

Fuel tank

160L,steel

Front axle

3.6T

Rear axle

8.0T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

Gearbox DF6S, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Van dimensions

5000X2294X550mm

Loading capacity

10000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
