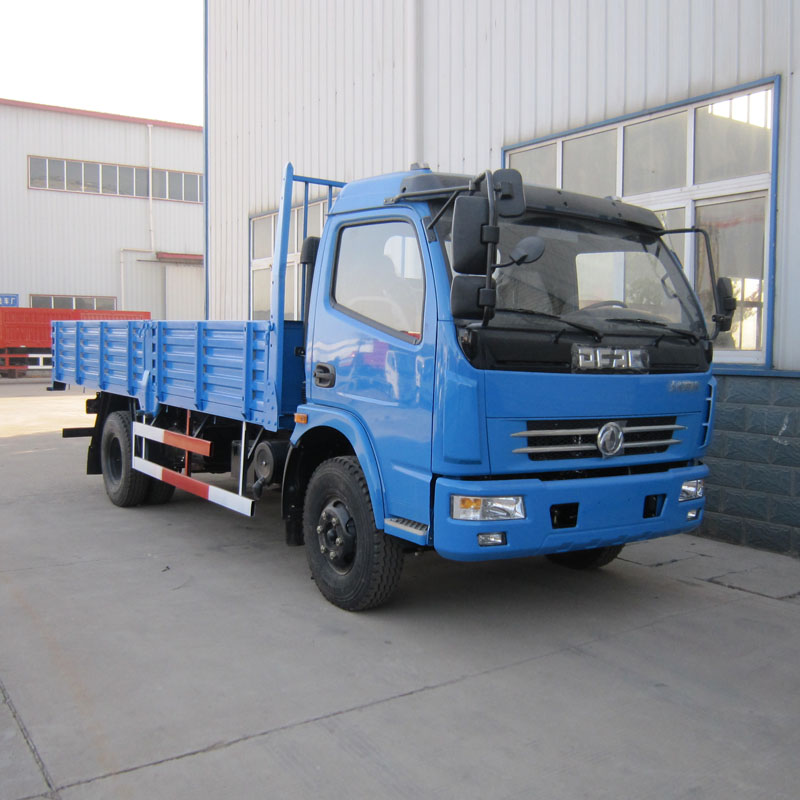

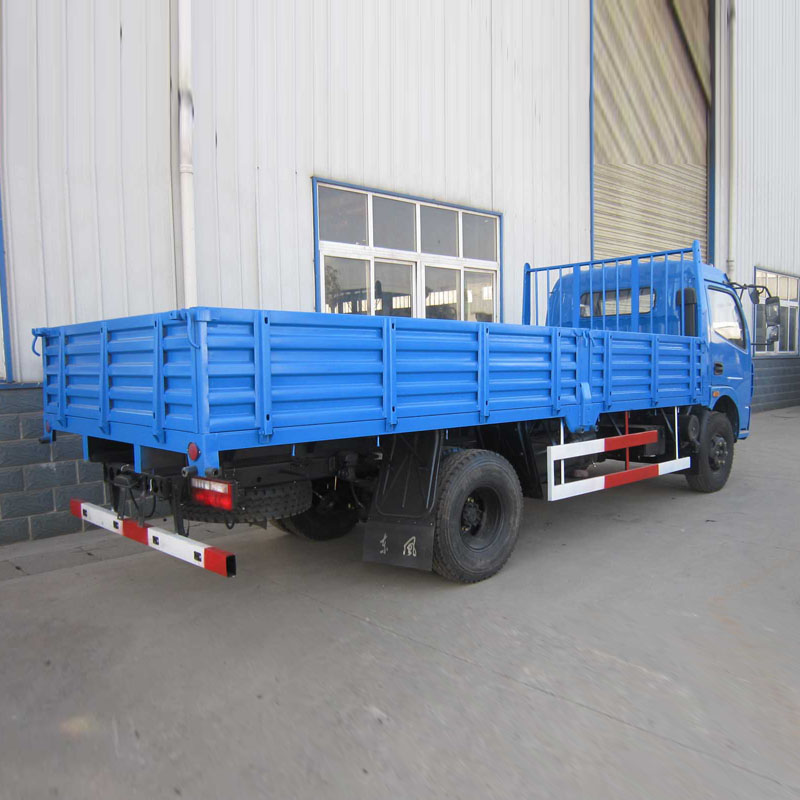

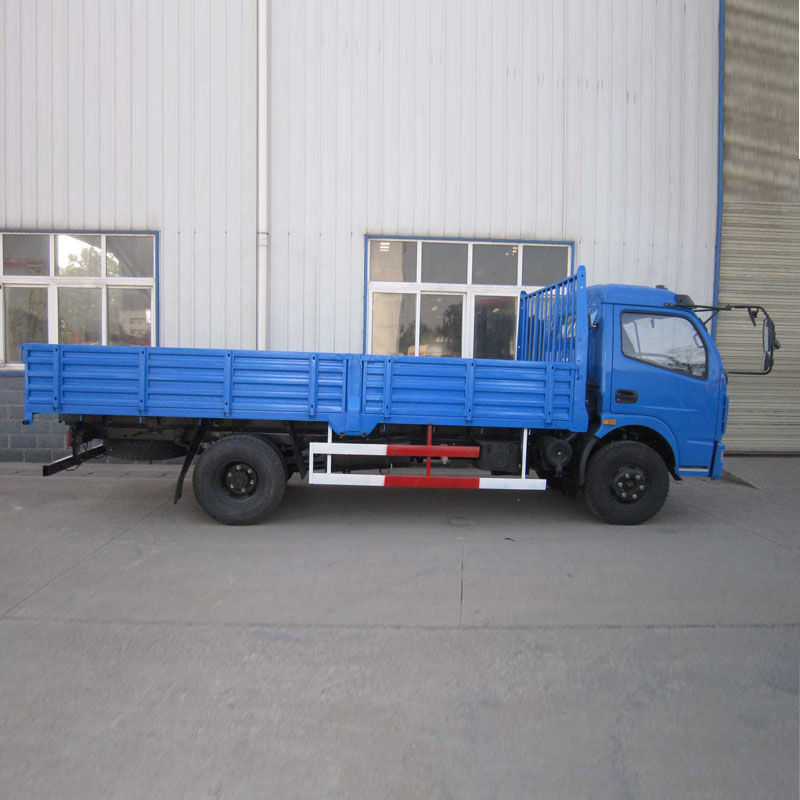

HLW5090EY cargo truck

Vehicle parameters

Vehicle Model

HLW5090EY

Vehicle Brand

DONGFENG

Overall dimensions

6995X2450X2450mm

Curb weight

3955kg

Van dimensions

5000X2250X550mm

Loading capacity

8000kg

Chassis parameters

Chassis model

EQ1090T9ADJ3AC

Chassis brand

DONGFENG

Overall dimensions

6695x2180x2350mm

Wheel base

3800mm

Front/rear wheel track

1750/1586mm

Front/rear suspension

1180/1715mm

Approach/departure angle

22/13°

Maximum speed

80km/h

Chassis Manufacturer

Dongfeng Automobile Co.,Ltd

Cab

Configuration

Single row cab,air conditioner,allowable 3 passengers,cab can be flipped

Color

Blue,other color is optional

Engine

Model

YC4E140-33

Emission

Euro 3

Type

4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine

Rated power

140hp,rated power speed 2800rpm

Displacement

3856ml

Bore x stroke

102x118mm

Manufacturer

Dongfeng Yuchai Diesel Power Co. Ltd.

Tire

Size

7.50R16,steel wire tire

Number

6+1 nos

Frame

192mm

Brake

Air break, electronic flame out, exhaust brake

Fuel tank

100L,steel

Front axle

3T

Rear axle

5.5T

Drive form

4X2

Rated voltage

24V,DC

Transmissions

5 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above,please take the actual product as the standard

Upper structure parameters

Van dimensions

5000X2250X550mm

Loading capacity

8000kg

Van material

Corrugated iron tile

Color and Logo

Optional

Standard configuration

Chassis,sub frame,corrugated iron tile van body.
